Super Swaged

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load. :
This cable starts out as the next size bigger cable and through the swaging process it compresses the cable down to the next size smaller. This makes the strength of the cable equal to the next size bigger but it does make the cable less flexible. Example:
A 3/8" swaged cable starts out as a 7/16" steel core cable, then through the swaging process gets compressed down to a 3/8" swaged cable. The 3/8" swaged cable has the working load limit of a 7/16" standard steel core cable. Please Note: Product Discontinued- ALL SALES ARE FINAL!

• STRONGER - Compact design allows for up to 26% greater strength than standard winch lines of the same diameter
• MORE DURABLE - Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing & kinking
• RESISTANT TO DRUM CRUSHING - Because the winch line is already compacted during the swaging process there is less space within the rope to compact if exposed to crushing
• CONSTRUCTION - (6 x 26 IWRC) Available in 3/8
• Self-Locking Hook
• Sizes available: 3/8" - 5/8"
• Lengths available: 50' - 250'
• WLL: 5,700 - 9,800
• Turnback Style Eye


  Available in the following sizes



  Item #	Size	Length
  3856LH-SG	3/8" - 20,400 MBS	56'
  3875LH-SG	3/8" - 20,400 MBS	75'
  38100LH-SG	3/8" - 20,400 MBS	100'
  38125LH-SG	3/8" - 20,400 MBS	125'
  38150LH-SG	3/8" - 20,400 MBS	150'
  71650LH-SG	7/16" - 27,200 MBS	50'
  71675LH-SG	7/16" - 27,200 MBS	75'
  716100LH-SG	7/16" - 27,200 MBS	100'

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Self-Locking Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with an alloy swivel hoist hook.

Please Note: Product Discontinued - ALL SALES FINAL!

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Eye Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

Note: Special Handling Fees Apply for Specific Items

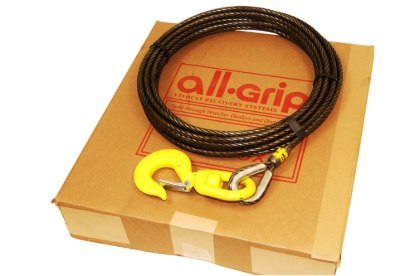

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

• 17 options
• Wire rope size: 3/8"-1/2"
• Swivel hook size: 3 Ton - 5 Ton
• IWRC
• 6 x 26 swaged construction
• Flemished Eye
• Made in the USA

Available in the following sizes

Item #	Size	Length
WS38050S-SG	3/8" - 3 Ton Hook	50'
WS38075S-SG	3/8" - 3 Ton Hook	75'
WS38100S-SG	3/8" - 3 Ton Hook	100'
WS38125S-SG	3/8" - 3 Ton Hook	125'
WS38150S-SG	3/8" - 3 Ton Hook	150'
WS716050SZ-SG	7/16" - 4.5 Ton Hook	50'
WS716100SZ-SG	7/16" - 4.5 Ton Hook	100'
WS716150SZ-SG	7/16" - 4.5 Ton Hook	150'
WS716050S-SG	7/16" - 3 Ton Hook	50'
WS716075S-SG	7/16" - 3 Ton Hook	75'
WS716100S-SG	7/16" - 3 Ton Hook	100'
WS716150S-SG	7/16" - 3 Ton Hook	150'
WS12040S-SG	1/2" - 4.5 Ton Hook	40'
WS12050S-SG	1/2" - 4.5 Ton Hook	50'
WS12075S-SG	1/2" - 4.5 Ton Hook	75'
WS12100S-SG	1/2" - 4.5 Ton Hook	100'
WS12150S-SG	1/2" - 4.5 Ton Hook	150'
