ECCO 12+ Series Light Bar Controller

Price: $94.99

SKU: EC-EZ1202

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

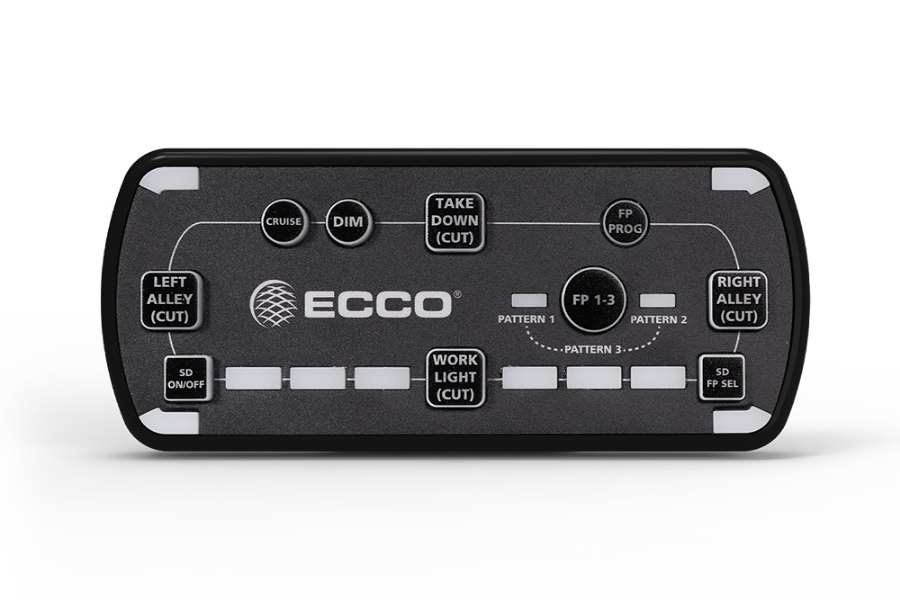

The Ecco EZ1202 12+ Series light bar controller is an optional in-cab advanced control pad. This offers convenient control of the light bar's built in flash patterns and features with soft touch buttons and LED function indicator lights.

Power - Press to cycle through three programmable flash pattern presets Hold button down to shut down all functions. Press again to resume as before
Cruise - Press to illuminate all directional modules in steady burn mode
Day/Night Mode - Press to backlight the keypad and lower the brightness of the directional modules in the lightbar
Auxiliary Output - For use with the auxiliary output from the junction box to a relay (customer supplied), to control any auxiliary device via the junction box controlled relay
Flash Pattern Select - Double press to enter flash pattern select mode and cycle one flash pattern. The 4 corner LEDs on the controller will mimic the lightbar to give pattern feedback. Press again once to cycle to the next flash pattern. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used to the active preset
Safety Director On/Off (if configured) - Will resume pattern selected
Safety Director Pattern Select - Press once to cycle to the next Safety Director flash pattern. There is a 5 second delay between the controller and the lightbar. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used
Forward Worklamp - Will turn on forward facing worklamps
Rear Worklamp - Will turn on rear facing worklamps
Alley Left - Will turn on left alley lights
Alley Right - Will turn on right alley lights
If purchasing the controller, must also purchase harness (see accessory below)

Accessory Options Available:

Ecco Controller Cable Assembly - #EC-EZ1210

Brochure

Literature that describes this product:
