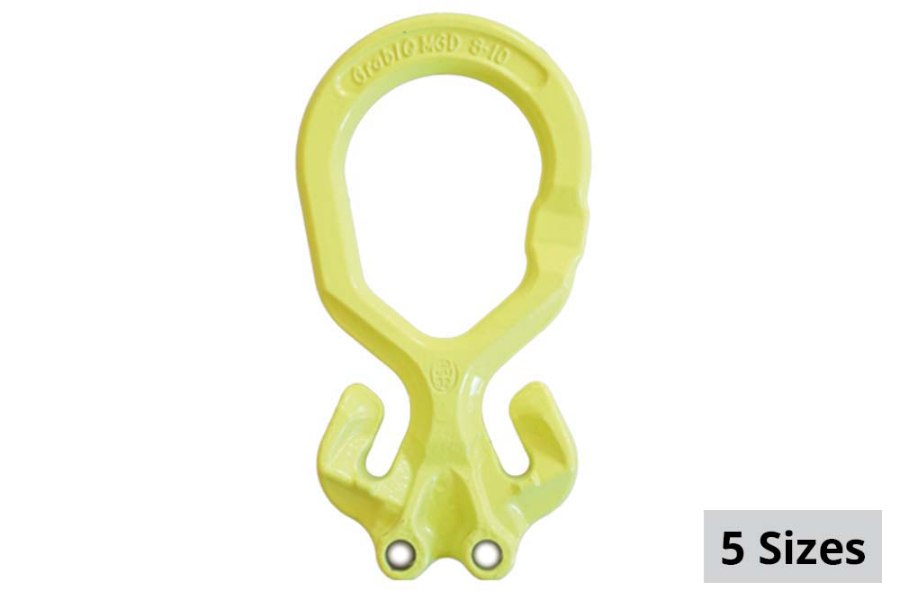

Gunnebo GrabiQ Master Grab Duo MGD

Price: $86.99–$422.99

SKU: GI-MASTERGRAB-MGD

SIZE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The Master Grab Duo MGD master link works with GrabIQ slings from Gunnebo. The all-in-one compact top link allows slings to handle different capacities and the ability to add and and remove legs as needed. Two built-in shortening functions allow the user to switch from a straight lift to a looped sling in a matter of seconds. Choose from five sizes with Working Load Limits ranging from 4,700 lbs. to 39,100 lbs. This master link offers a Safety Factor of 4:1.

As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.

Five sizes available: 7/32” to 5/8"
WLL: 4,700 lbs. to 39,100 lbs.
Safety Factor: 4:1
Two built-in shortening functions
Compact top link
Accepts 1- and 2-leg slings
Stamped for traceability

Imperial

Item #	B14700	B14701U	B14702U	B14703U	B14704U
Code	MGD-6-10	MGD-8-10	MGD-10-10	MGD-13-10	MGD-16-10
WLL lb*	4,700	9,900	15,200	26,000	39,100
L	5.7	6.7	8.3	10.3	12.2
A	3.5	3.9	4.9	5.9	6.9
E	2.4	3.0	3.5	4.1	4.7
D	0.67	0.83	0.94	1.2	1.4
Weight lb	1.5	2.9	5.1	11.5	17.4
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. Note! The maximum in service temperature is 392°F. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	B14700	B14701U	B14702U	B14703U	B14704U
Code	MGD-6-10	MGD-8-10	MGD-10-10	MGD-13-10	MGD-16-10
WLL tonnes*	4,700	9,900	15,200	26,000	39,100
L	5.7	6.7	8.3	10.3	12.2
A	3.5	3.9	4.9	5.9	6.9
E	2.4	3.0	3.5	4.1	4.7
D	0.67	0.83	0.94	1.2	1.4
Weight kg	1.5	2.9	5.1	11.5	17.4
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.
