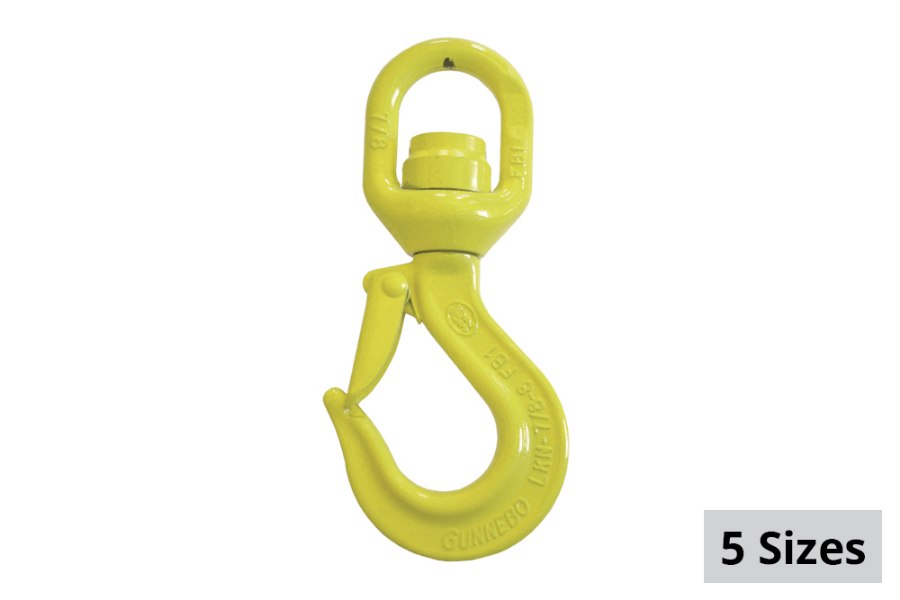

Gunnebo GrabiQ Swivel Latch Hook LKNK

0 reviews

Leave a Review

Picture of Gunnebo GrabiQ Swivel Latch Hook LKNK

Choose SIZE *: 5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

7/8" - 44,080 WLL

7/8" - 44,080 WLL

Not available

SKU: GI-SWIVELHK-LKNK

Price: $204.99–$2,059.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

Item #	GI-Z101349	GI-Z101350	GI-Z101351	GI-Z101352	GI-Z101354
Code	LKNK-7/8-10	LKNK-10-10	LKNK-13-10	LKNK-16-10	LKNK-22-10
WLL lb*	5,700	8,800	15,000	22,600	44,080
For chain dim.	9/32, 5/16	3/8	1/2	5/8	7/8
L	6.06	7.52	9.29	11.54	15.75
B	1.10	1.38	1.57	2.09	2.91
C	1.10	1.38	1.77	2.44	3.15
E	1.50	1.73	1.89	2.40	3.15
A	0.47	0.59	0.75	0.98	1.38
G	0.71	0.91	1.10	1.34	1.69
H	0.94	1.22	1.50	1.69	2.64
Weight lb	1.98	3.53	7.28	12.3	31.5
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101349	GI-Z101350	GI-Z101351	GI-Z101352	GI-Z101354
Code	LKNK-7/8-10	LKNK-10-10	LKNK-13-10	LKNK-16-10	LKNK-22-10
WLL tonnes*	2.6	4.0	6.8	10.3	20.0
For chain dim.	7, 8	10	13	16	22
L	154	191	236	293	400
B	28	35	40	53	74
C	28	35	45	62	80
E	38	44	48	61	80
A	12	15	19	25	35
G	18	23	28	34	43
H	24	31	38	43	67
Weight kg	0.9	1.6	3.3	5.6	15.1
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101350	Z101350	3/8" - 8,800 WLL
GI-Z101349	Z101349	5/16" - 5,700 WLL
GI-Z101351	Z101351	1/2" - 15,000 WLL
GI-Z101354	Z101354	7/8" - 44,080 WLL
GI-Z101352	Z101352	5/8" - 22,600 WLL
