Couplings

The container eye link is intended to be used in the corner eyes of shipping containers as an attachment point for rigging to assist in up righting overturned containers. By using a shoulder bot, nut and pin, it becomes a terminal connections. This link is a must for any situation involving an overturned shipping container! The working load limit is 35,300 lbs with a 4:1 safety factor.

Grade 80 coupling links from Zip's are the preferred choice to attach hooks to chain. See the drop-down menu for available sizes and working load limits.

When you’re performing an overhead lift, you need to trust your coupling links. This particular link is made of grade 100 steel. That adds to the amount of strength that this coupling has. Plus, even the smallest of these links (check the chart for the rest of them) has a WLL of 5,700 pounds, meaning that you can be sure no job is too big for this link.

The container eye link is intended to be used in the corner eyes of shipping containers as an attachment point for rigging to assist in up righting overturned containers. By using a shoulder bot, nut and pin, it becomes a terminal connections. This link is a must for any situation involving an overturned shipping container! The working load limit is 35,300 lbs with a 4:1 safety factor.

This GrabiQ G Coupling Link from Gunnebo features a heavy-duty retaining collar for semi-permanent connections for chains, slings and hooks. The coupler is forged with extra-wide inside dimension, and a heat number identification allows for full product traceability. The heavy-duty finish ensures product durability. Featuring a Safety Factor of 4:1, the Grade 100 coupler is approved for overhead lifting and 25 percent stronger than Grade 80. Choose from 10 sizes and Working Load Limits ranging from 3,306 lbs. to 88,160 lbs. Various sizes allow slings to handle different capacities.

Please Note: Product Discontinued - ALL SALES FINAL!
Discontinued items are not eligible for return. View Returns Policy
Grade 100 Coupling Links are the best way to attach hooks and other accessories to your chain. Grade 100 links are made from high strength alloy steel and have a 25% higher work load limit than standard grade 80 links, making them perfect for towing or lifting applications.

• Grade: 100

  Available in the following sizes



  Item #	Size	WLL
  11-58G10ACL	5/8"	22,600 lbs.
  11-34G10ACL	3/4"	35,300 lbs.

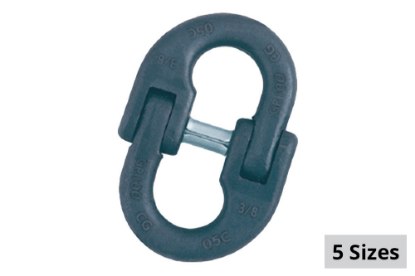

This grade 100 Crosby Coupling Link is proof tested 2.5 times its working load limit, making it extra reliable. Plus, the fact it has a 4:1 design factor only increases that reliability. Not only is it reliable, it’s highly durable. Made of forged alloy steel, this coupling link meets ASTM A-952 standards and has a WLL of up to 22,600 lbs, check the drop-down menu for more information.

The best part about chains is that you can adjust to the length you need. Do you know what makes that easy to do? A shortening clutch. With the shortening clutch, you can then shorten the chain as long as you need it, letting you have a better lift. This convenience can be a lifesaver.

Zip's grade 80 self-locking hook with eye.

When you’re performing an overhead lift, you need to trust your coupling links. This particular link comes in zinc-plated yellow. That plating allows for better corrosion resistance, which allows for the coupling to last longer. Plus, even the smallest of these links (check the chart for the rest of them) has a WLL of 5.3 tons, meaning that you can be sure no job is too big for this link.

This lightweight coupling link is strong enough for overhead lifting. The All-Grip Coupling Links 5/16" are grade 80 and able to handle up to 4,500 pounds, making them extremely strong and capable of almost any job in front of you.

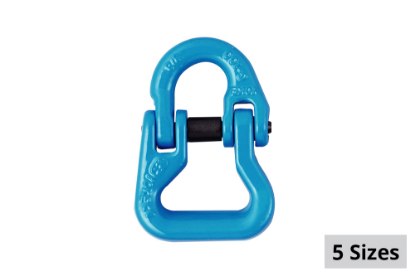

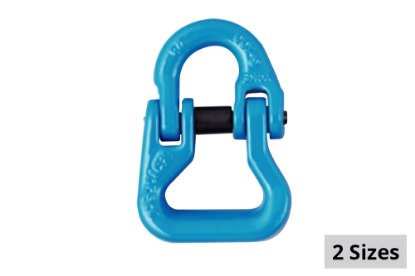

Able to connect your strap to a chain or hook, this connector is very reliable. With its center pin, you can be sure you have a stable and secure connection. Making it even more reliable is the durability that comes with being made of grade 100 steel. You can trust that it will hold up on you with its high working load limit, check the table for more information.

Kuplers act as a connection device between master links and chain legs. Resembling a shackle in appearance, they provide high strength connection. Alloy steel.

Imperial

Item #	GI-Z622036	GI-Z195823	GI-Z208022	GI-Z217820	GI-Z208226
Code	BL-6-8	BL-7/8-8	BL-10-8	BL-13-8	BL-16-8
WLL lb*	2,500	4,500	7,100	12,000	18,000
For chain dim.	(6mm)	9/32, 5/16	3/8	1/2	5/8
L	1.06	1.38	1.77	2.20	2.68
E	0.79	0.98	1.26	1.57	1.97
F	0.35	0.43	0.55	0.67	1.97
A	0.55	0.71	0.87	1.10	1.38
Weight lb	0.22	0.44	0.88	1.76	3.09
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z622036	GI-Z195823	GI-Z208022	GI-Z217820	GI-Z208226
Code	BL-6-8	BL-7/8-8	BL-10-8	BL-13-8	BL-16-8
WLL tonnes*	1.1	2.0	3.2	5.4	8.2
For chain dim.	6	7, 8	10	13	16
L	27	35	45	56	68
E	20	25	32	40	50
F	9	11	14	17	22
A	14	18	22	28	35
Weight kg	0.1	0.2	0.4	0.8	1.4
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm.

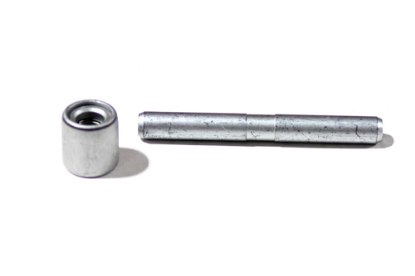

Yoke replacement pin and sleeve for X-015-22 coupling link

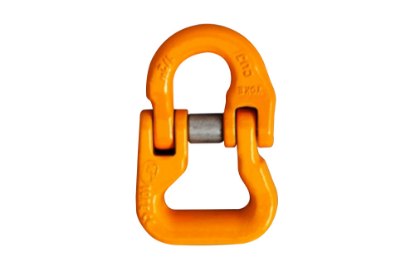

Yoke 1" G80 Web Sling Connector

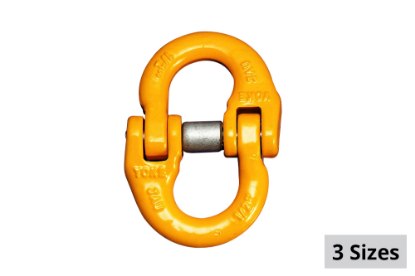

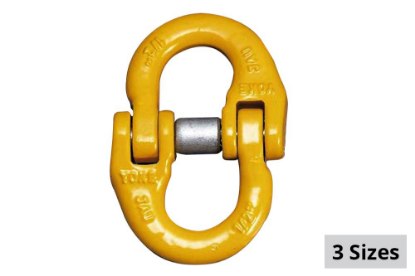

Yoke 1 1/4" G80 Coupling Link

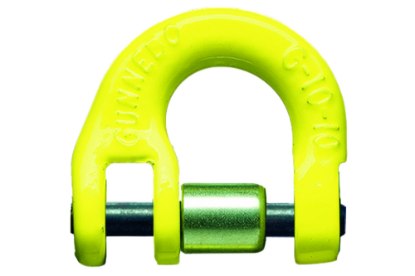

Imperial

Item #	GI-Z426286	GI-Z426383	GI-Z426480	GI-Z426587	GI-Z426684	GI-Z100225	GI-Z100226	GI-Z100227
Code	SKT-7/8-8	SKT-10-8	SKT-13-8	SKT-16-8	SKT-18/20-8	SKT-22-8	SKT-26-8	SKT-32-8
WLL lb*	4,500	7,100	12,000	18,000	28,300	34,200	47,700	72,300
For chain dim.	9/32, 5/16	3/8	1/2	5/8	3/4	7/8	1	1-1/4
L	1.10	1.34	1.73	2.05	2.48	2.99	3.15	3.94
B	0.71	0.98	1.18	1.42	1.69	1.97	2.28	2.76
F	0.35	0.43	0.59	0.75	0.87	0.94	1.18	1.50
A	0.43	0.51	0.63	0.79	0.91	1.02	1.30	1.57
C	0.87	1.02	1.30	1.57	1.85	2.32	2.40	3.07
Weight lb	0.22	0.44	0.88	1.32	2.43	3.75	5.73	10.80
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z426286	GI-Z426383	GI-Z426480	GI-Z426587	GI-Z426684	GI-Z100225	GI-Z100226	GI-Z100227
Code	SKT-7/8-8	SKT-10-8	SKT-13-8	SKT-16-8	SKT-18/20-8	SKT-22-8	SKT-26-8	SKT-32-8
WLL tonnes*	2.0	3.2	5.4	8.2	12.8	15.5	21.7	32.8
For chain dim.	7, 8	10	13	16	19	22	26	32
L	28	34	44	52	63	76	80	100
B	18	25	30	36	43	50	58	70
F	9	11	15	19	22	24	30	38
A	11	13	16	20	23	26	33	40
C	22	26	33	40	47	59	61	78
Weight kg	0.1	0.2	0.4	0.6	1.1	1.7	2.6	4.9
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm.

When you need to have a snug fit for your round slings, you can use the Gunnebo Classic Roundsling Coupling SKR. Specially designed for the full working load limit of round slings, you can trust this heat-treated coupling. Plus, it comes with an identification stamp that tells you the batch, factory and year it was manufactured in.

Yoke replacement pin and sleeve for X-015-26 connecting link.

This grade 80 Crosby Coupling Link is proof tested 2.5 times its working load limit, making it extra reliable. Not only is it reliable, it’s highly durable. Made of quenched and tempered alloy steel, this coupling link meets ASTM A-952-96 standards. Finally, no special tools are needed to use or assemble this coupling link, making it extra convenient.

Please Note: Product Discontinued - ALL SALES FINAL!

Please Note: Product Discontinued - ALL SALES FINAL!

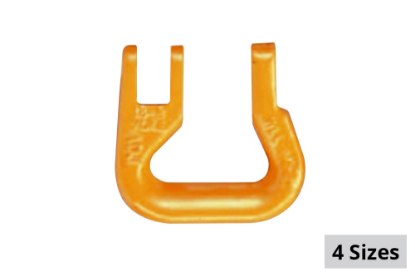

Yoke G80 Round Sling Coupling. Please Note: Product Discontinued - ALL SALES FINAL!
