Winch Cables

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. The Elite Series winch cables from AW Direct provide strength and flexibility.

The All-Grip Fiber Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

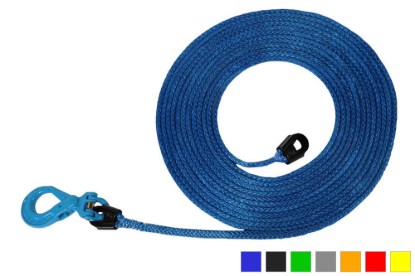

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

AW Direct Elite Series Winch Cables can also be known as: winch line, wire rope carrier cables, and rollback cables. The Fiber Core Winch Cables provide superior flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, providing a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Additionally, the steel core only adds to that resistance. Not to mention, the load can’t be dropped unless it’s intentional, thanks to the fact it has a self-locking hook.

• Wire Rope Size: 3/8" - 3/4"
• Hook Size: 2.25 Ton - 9 Ton
• Self-Locking hook
• Flemished Eye
• 6X19
• Steel core

Available in the following sizes

Item #	Size	Length
WS38050LS-SC	3/8" - 15,100 MBS	50'
WS38075LS-SC	3/8" - 15,100 MBS	75'
WS38100LS-SC	3/8" - 15,100 MBS	100'
WS38125LS-SC	3/8" - 15,100 MBS	125'
WS38150LS-SC	3/8" - 15,100 MBS	150'
WS716150LS-SC	7/16" - 20,400 MBS	50'
WS716075LS-SC	7/16" - 20,400 MBS	75'
WS716100LS-SC	7/16" - 20,400 MBS	100'
WS716150LS-SC	7/16" - 20,400 MBS	150'
WS12050LS-SC	1/2" - 26,600 MBS	50'
WS12100LS-SC	1/2" - 26,600 MBS	100'
WS12150LS-SC	1/2" - 26,600 MBS	150'
WS12200LS-SC	1/2" - 26,600 MBS	200'
WS916100LS-SC	9/16" - 33,600 MBS	100'
WS916150LS-SC	9/16" - 33,600 MBS	150'
WS916200LS-SC	9/16" - 33,600 MBS	200'
WS916250LS-SC	9/16" - 33,600 MBS	250'
WS58100LS-SC	3/4" - 58,800 MBS	100'
WS58150LS-SC	5/8" - 41,200 MBS	150'
WS58200LS-SC	5/8" - 41,200 MBS	200'
WS58250LS-SC	5/8" - 41,200 MBS	250'
WS34200LS-SC	3/4" - 58,800 MBS	200'
WS34250LS-SC	3/4" - 58,800 MBS	250'
WS34300LS-SC	3/4" - 58,800 MBS	300'

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load. :

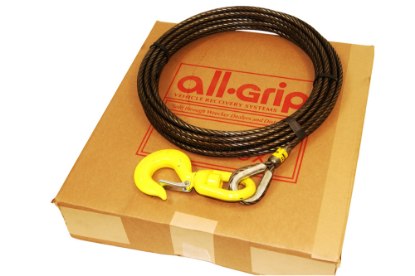

This cable starts out as the next size bigger cable and through the swaging process it compresses the cable down to the next size smaller. This makes the strength of the cable equal to the next size bigger but it does make the cable less flexible. Example:
A 3/8" swaged cable starts out as a 7/16" steel core cable, then through the swaging process gets compressed down to a 3/8" swaged cable. The 3/8" swaged cable has the working load limit of a 7/16" standard steel core cable. Please Note: Product Discontinued- ALL SALES ARE FINAL!

• STRONGER - Compact design allows for up to 26% greater strength than standard winch lines of the same diameter
• MORE DURABLE - Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing & kinking
• RESISTANT TO DRUM CRUSHING - Because the winch line is already compacted during the swaging process there is less space within the rope to compact if exposed to crushing
• CONSTRUCTION - (6 x 26 IWRC) Available in 3/8
• Self-Locking Hook
• Sizes available: 3/8" - 5/8"
• Lengths available: 50' - 250'
• WLL: 5,700 - 9,800
• Turnback Style Eye


  Available in the following sizes



  Item #	Size	Length
  3856LH-SG	3/8" - 20,400 MBS	56'
  3875LH-SG	3/8" - 20,400 MBS	75'
  38100LH-SG	3/8" - 20,400 MBS	100'
  38125LH-SG	3/8" - 20,400 MBS	125'
  38150LH-SG	3/8" - 20,400 MBS	150'
  71650LH-SG	7/16" - 27,200 MBS	50'
  71675LH-SG	7/16" - 27,200 MBS	75'
  716100LH-SG	7/16" - 27,200 MBS	100'

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Swivel Hook that has a safety latch, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

Note: Special Handling Fees Apply for Specific Items

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.

• Model: HD-234R
• Line Pull: 8,000 lbs
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• See Brochures for Product Drawings
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  Applications

• Replaces Chevron Car Carrier OEM Winches
• Replaces Jerr-Dan Car Carrier OEM Winches
• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Trailer



  Winch Mount Configuration





  Model Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 28'/min / 8.5m/min
• Gear Ratio: 34:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 140' / 42.7m
• Recommend Cable Size: 3/8" / 9.5mm
• Hydraulic Pressure Required: 2,375 PSI (164 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 3.6 Cu. In. (59 cc)
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric



  HD-234R Specifications:

• Ramsey Part Number: 121807
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  HD-200R Specifications:

• Ramsey Part Number: 121818
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Lever Release (Lever not included)
• Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA
• For an alternative winch see part number H-246
• Replaces part number 12-0300250



  HD-234RA Specifications:

• Ramsey Part Number: 121797
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Air Shift
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11.125"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA

Note: Special Handling Fees Apply for Specific Items

Heavy-duty tow operators and construction crews need their winch line to work as hard as they do. Performance and reliability matters in their line of work. That’s why they turn to SafeAll’s Steel Core Winch Line. From rugged off-road recoveries to industrial applications, this winch cable is built to perform.

Please Note: Product Discontinued - ALL SALES FINAL!

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

Don’t let a minor mishap turn into a major headache. Be prepared for the unexpected with a winch line designed for quick, reliable recoveries. SafeAll’s Fiber Core Winch Line offers a flexible and lightweight option for light-duty tow operators, car haulers or weekend warriors who have found their way off the trail. The high-end construction of this wire rope features 6x19 strands of extra improved plowed steel wrapped around a fiber center. The flexibility of the synthetic core performs well with directional changes using snatch blocks or mechanical side pullers at the tail of a flat bed. The fiber center also excretes a special lubricant to reduce corrosion, friction and maintenance.

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Line Extensions are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

Dimensions: 9 3/4" x 5" x 6"

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cables with Standard Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Not to mention, the load can’t be dropped unless it’s intentional thanks to the fact it has a self-locking hook.

• 6×19 Class of wire rope
• Steel Core winch lines
• Drop Forged Eye Hook
• Flemished Eye

Available in the following sizes

Item #	Size	Length	Min. Break Strength
WS516050-SC	5/16"	50'	9,800 lbs.
WS38050-SC	3/8"	50'	15,100 lbs.
WS38075-SC	3/8"	75'	15,100 lbs.
WS38100-SC	3/8"	100'	15,100 lbs.
WS38150-SC	3/8"	150'	15,100 lbs.
WS716050-SC	7/16"	50'	20,400 lbs.
WS716100-SC	7/16"	100'	20,400 lbs.
WS716150-SC	7/16"	150'	20,400 lbs.
WS716200-SC	7/16"	200'	20,400 lbs.
WS12050-SC	1/2"	50'	26,600 lbs.
WS12100-SC	1/2"	100'	26,600 lbs.
WS12150-SC	1/2"	150'	26,600 lbs.
WS12200-SC	1/2"	200'	26,600 lbs.
WS916100-SC	9/16"	100'	33,600 lbs.
WS916150-SC	9/16"	150'	33,600 lbs.
WS916200-SC	9/16"	200'	33,600 lbs.
WS916250-SC	9/16"	250'	33,600 lbs.
WS58100-SC	5/8"	100'	41,200 lbs.
WS58150-SC	5/8"	150'	41,200 lbs.
WS58200-SC	5/8"	200'	41,200 lbs.
WS58250-SC	5/8"	250'	41,200 lbs.
WS34200-SC	3/4"	200'	58,800 lbs.
WS34250-SC	3/4"	250'	58,800 lbs.
WS34300-SC	3/4"	300'	58,800 lbs.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Fiber Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Swivel Hook that has a safety latch for a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

Chafe-Pro's standard abrasion protective nylon sleeve is made from a tubular textile abrasion resistant nylon. They are the most economical option for managing, containing and protecting your synthetic rope. This material is sold by the foot.

Save some space on your winch drum and gain some strength with SafeAll’s Steel Swaged Winch Line. Through the manufacturing process, this steel cable increases its capacity by more than 25 percent when compared to standard steel winch lines of the same diameter. This construction provides better resistance to abrasion, kinking and birdnesting.

The All-Grip Fiber Core Winch Cable with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

The All-Grip Fiber Core Winch Cable with Standard Hook is very strong. With a working load limit of up to 10,309 pounds and a minimum break strength as high as 36,600 pounds, you can rely on this to get the job done. Check the chart below for more information,

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with an alloy swivel hoist hook.

The most trusted name in synthetic recovery rope is now branded on a new line of synthetic winch line for light-duty wreckers and car carriers. Strength-tested and field-proven, RimSling has added this braided rope to its full line of synthetic towing and recovery products. Available in three sizes and lengths to 150', this new black winch line is lighter than traditional steel cable, safer to use and easier to handle.

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

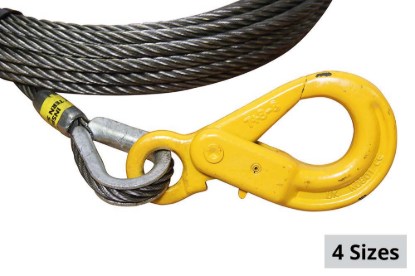

The All-Grip Steel Core Winch Cables with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds. you can rely on this to get the job done. Check the chart below for more information.

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

This Bushing from Ramsey Winch is used in the assembly of 4-Ton Hydraulic Winches,

Note: Special Handling Fees Apply for Specific Items

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

• 17 options
• Wire rope size: 3/8"-1/2"
• Swivel hook size: 3 Ton - 5 Ton
• IWRC
• 6 x 26 swaged construction
• Flemished Eye
• Made in the USA

Available in the following sizes

Item #	Size	Length
WS38050S-SG	3/8" - 3 Ton Hook	50'
WS38075S-SG	3/8" - 3 Ton Hook	75'
WS38100S-SG	3/8" - 3 Ton Hook	100'
WS38125S-SG	3/8" - 3 Ton Hook	125'
WS38150S-SG	3/8" - 3 Ton Hook	150'
WS716050SZ-SG	7/16" - 4.5 Ton Hook	50'
WS716100SZ-SG	7/16" - 4.5 Ton Hook	100'
WS716150SZ-SG	7/16" - 4.5 Ton Hook	150'
WS716050S-SG	7/16" - 3 Ton Hook	50'
WS716075S-SG	7/16" - 3 Ton Hook	75'
WS716100S-SG	7/16" - 3 Ton Hook	100'
WS716150S-SG	7/16" - 3 Ton Hook	150'
WS12040S-SG	1/2" - 4.5 Ton Hook	40'
WS12050S-SG	1/2" - 4.5 Ton Hook	50'
WS12075S-SG	1/2" - 4.5 Ton Hook	75'
WS12100S-SG	1/2" - 4.5 Ton Hook	100'
WS12150S-SG	1/2" - 4.5 Ton Hook	150'

Traditional, metal winch lines have quite a bit of extra weight they’re pulling along that this plasma winch line just doesn’t have. For starters, the All-Grip Plasma Winch Line with Self-Locking Hook is stronger and lighter than a steel rope. This means it's easier to lift and use without needing to work with a bunch heavy rope. Plus, it has easier handling than steel rope.

Synthetic extension winch line from RimSling is a simple way to add more rope to your winch in order to reach out farther to whatever you are trying to recover. The extension includes a thimble to connect to your existing winch line, as well as a self-locking hook to connect to the casualty or other lashing point. Made from 12 strands of HDPE fiber, the single braid, kink-free synthetic line offers high strength and low stretch for long-term dependability.

These Synthetic Rope Winch Lines come with an Extension Eye and a Self-Locking Hook that will not open when under load. Constructed of Atlantic Braids SupreemX-12 synthetic with Dyneema.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 3/8" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. It also has an independent wire rope core that reduces internal wear and increases bending fatigue life. To add to that durability, there is a thimble eye on one end to reduce damage to the line.

The All-Grip SuperFlex Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 22,422 pounds and a minimum break strength as high as 79,600 pounds, you can rely on this to get the job done. Check the chart below for more information

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Line Extensions are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

These Synthetic Rope Winch Lines come with a Self-Locking Hook that will not open when under load. Constructed of Atlantic Braids SupreemX-12 synthetic with Dyneema. Please Note: Product Discontinued - ALL SALES FINAL!

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Eye Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

This is a seal kit for a Ross MK series Short Winch Motor on a Century Carrier.

This is a Miller spade weldment dock stabilizer tube. It measures 5 x 4.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 1/2" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. Finally, it has an independent wire rope core that reduces internal wear and increases bending fatigue life.

This is a replacement stage 3 carrier assembly in the winch. This replacement carrier fits a 9 Series Warn Winch.

This Cable Tensioner Spring from Miller Industries is used on the Cable Tensioner Assembly of a standard 4-Ton Winch. This assembly can be found on a Century, Champion, and Vulcan Car Carriers. See the features below for a full list of carriers and see the brochure tab for breakdowns.

This is a replacement air cylinder for the winch on heavy duty wreckers by Miller Industries. This air cylinder is what lets your winch be able to free spool at the push of a button. This cylinder has a 2" bore and a 2" stroke. To see which models this cylinder fits please see Features below. To view the part schematics click on the Brochure tab above.

This Steel Core Cable is made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. This cable also comes with an Alloy Standard Hook that has a safety latch, which provides a secure, safe connection.

This is the clutch housing for the 12 Series Planetary Winch by Warn Industries. This clutch housing holds all of the ring gears, thrust plates, and carrier assemblies needed to make the winch function. This housing bolts up to the drum support assembly.

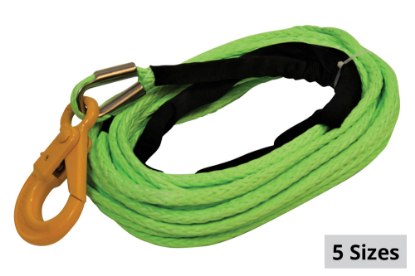

The All-Grip Synthetic Extension Line with Standard Hook and Thimble is very strong. With 12-strand HMPE fibers, you can trust this synthetic line to hold up while also being 15 times stronger than steel. Plus, it has a working load limit of 4,400 pounds, so it can take on whatever job you have. Of course, the All-Grip Synthetic Extension Line with Standard Hook and Thimble is more than just strong, it also comes in 5 length, giving it a bit more versatility.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

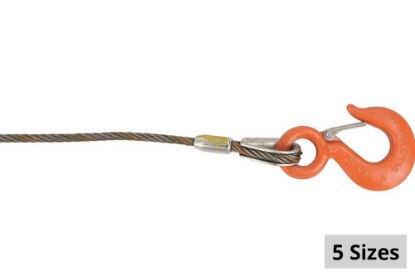

This steel core wire rope has an eye hook on one end and a thimbled eye on the other. Simply slip your existing wire rope's eye hook through the thimble. Measure your existing wire rope size or check your winch owner's manual to ensure you order the proper sized wire rope.

Other sizes are available, call for details.

• Easy Set Up: Simply slip your existing wire rope's eye hook through the thimble
• Resist Crushing: The IWRC (Independent Wire Rope Core) enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength.
• Design Factor: 3:1 ratio
• Flemished Eye


Available in the following sizes



Item #	Size	Length
IC101D	3/8"	35'
IC101E	3/8"	50'
IC200E	7/16"	50'
IC300E	1/2"	50'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

Item #	Size	Length
C10C	3/8"	35'
C11C	3/8"	50'
C14C	3/8"	75'
C20C	7/16"	50'
C21C	7/16"	100'
CABLE-CC	1/2"	75'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

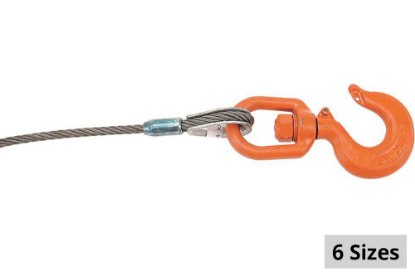

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Swivel hook has a spring-loaded latch and swiveling upper link to keep wire rope straight without coiling or twisting. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Keep Rope Straight: Includes swivel hook with spring-loaded latch and swiveling upper link to prevent rope from coiling or twisting
• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength. Flemish spliced and thimbled to create strongest attachment available
• Design Factor: 3:1 ratio

  Available in the following sizes



  Item #	Size	Length
  C11CL	3/8"	50'
  C14CL	3/8"	75'
  C12CL	3/8"	100'
  C13CL	3/8"	150'
  C24CL	7/16"	75'
  C21CL	7/16"	100'
  C22CL	7/16"	150'
  C34CL	1/2"	75'
  C31CL	1/2"	100'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

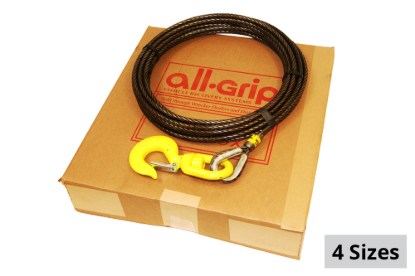

These wire ropes feature a fiber core center for flexibility and 6 x 19 construction for increased strength. Includes hook, thimble, steel sleeve and latch. Swivel hook features a spring-loaded latch and swiveling upper link to keep wire rope straight without coiling or twisting. Flemish spliced then swaged in a 500-ton press to create the strongest attachment available.

Match your existing wire rope size or check your winch manufacturer's recommendation before ordering.

• Durable Construction: 6 x 19 construction provides increased strength
• Increased Flexibility: Fiber core center provides flexibility
• Keep Rope Straight: Swivel hook features a swiveling upper link to keep wire rope straight without coiling or twisting
• Strong Attachment: Flemish-spliced and a 500-ton press operation provides the strongest attachment available
• Design Factor: 3:1 ratio

  Available in the following sizes



  Item #	Size	Length
  IC100CL	3/8"	35'
  IC101CL	3/8"	50'
  IC102CL	3/8"	100'
  IC103CL	3/8"	150'

"B" Rotation, "Y" Drum 6-1/2"

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

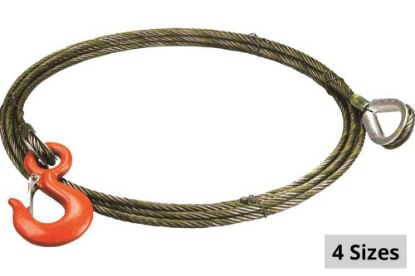

An Independent Wire Rope Center (IWRC) makes these winch lines strong and resistant to crushing. Includes hook, thimble, steel sleeve and latch. Hook is attached using a Flemish eye splice and steel sleeve for the strongest hook attachment available.

Other sizes are available, call for details. Measure your existing wire rope size or check your winch owner?s manual to ensure it uses 3/8" wire.

• Durable Construction: 6 x 19 construction provides increased strength
• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Strong Attachment: Hook is attached using a Flemish eye splice and steel sleeve for the strongest hook attachment available
• Design Factor: 3:1 ratio
• Dimensions: 3/8" dia.
• WLL: 4,800-lb.

  Available in the following sizes



  Item #	Size	Length
  IC10AL	3/8"	35'
  IC11AL	3/8"	50'
  IC14AL	3/8"	75'
  IC12AL	3/8"	100'
  IC12AL	3/8"	150'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

These wire ropes feature a fiber core center for flexibility and 6 x 19 construction for increased strength. Includes hook, thimble, steel sleeve and latch. Hook features a spring-loaded latch for quick and secure connection. Flemish spliced then swaged in a 500-ton press to create the strongest attachment available.

Match your existing wire rope size or check your winch manufacturer's recommendation before ordering.

• Durable Construction: 6 x 19 construction provides increased strength
• Increased Flexibility: Fiber core center provides flexibility
• Strong Attachment: Flemish-spliced and a 500-ton press operation provides the strongest attachment available
• Design factor: 3:1 ratio
• Diameter: 3/8"
• WLL: 3,760-lb.

  Available in the following sizes



  Item #	Size	Length
  FC100L	3/8"	35'
  FC101L	3/8"	50'
  FC102L	3/8"	100'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Hook with latch allows for a quick secure connection. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Quick Connection: Includes hook with latch for a secure, quick connection
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength
• Design Factor: 3:1 ratio
• Flemished Eye


Available in the following sizes



Item #	Size	Length
C10AL	3/8"	35'
C11AL	3/8"	50'
C14AL	3/8"	75'
C12AL	3/8"	100'
C13AL	3/8"	150'
C20AL	7/16"	50'
C24AL	7/16"	75'
C21AL	7/16"	100'
C22AL	7/16"	1590'
C34AL	1/2"	75'
C31AL	1/2"	100'
C31AL	1/2"	1590'

Replacement Springs for CWT,HCT,820-CWT and the 925-CWT

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Hook allows for a quick secure connection. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Quick Connection: Includes hook for a secure, quick connection
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength. Flemish spliced and thimbled to create strongest attachment available
• Flemished Eye


Available in the following sizes



Item #	Size	Length
C10A	3/8"	35'
C11A	3/8"	50'
C14A	3/8"	75'
C12A	3/8"	100'
C13A	3/8"	150'
C20A	7/16"	50'
C24A	7/16"	75'
C21A	7/16"	100'
C22A	7/16"	150'

2019 Century 10 Series Steel Car Carrier, Dodge Ram 5500HD, 21223
