Fuel and Lube Transfer Systems

The new UL approved K24 Inline Turbine Meter is suitable for use with Gasoline, Diesel, and Kerosene. The UL (Underwriters Laboratory) approval assures the product and its components are suitable for the application specified. It is easy to install and is equipped with a rotatable screen, sturdy aluminum casing, and sealed electronic card, making the K24 the ideal instrument for fluid monitoring under any condition.

Fill Rite's 1600 Series provides extreme portability for low-volume diesel transfer, ideal for transferring out of drums and totes into smaller equipment.

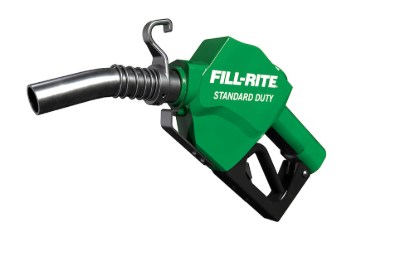

Fill-Rite's automatic fuel transfer nozzles feature heavy-duty construction and come in a variety of gasoline, diesel, and cold weather options.

Bipolar 16 amp 250 volt switch.

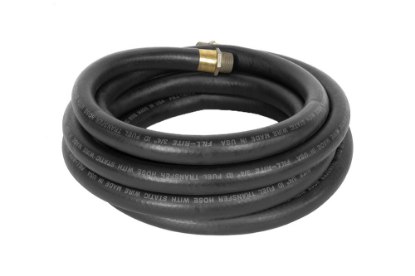

Fill-Rite's fuel transfer hoses feature tough, corrosion-resistant construction that resists kinks to improve performance and ease-of-use. The FR90A (FRH07520) is a 0.75" X 20' fuel transfer hose. This hose is equipped with a stainless steel ground wire and a 7" anti-kink spring guard to ensure safety and improve performance, respectively. The FR90B (FRH07520) is a 0.75" X 20' fuel transfer hose. This hose is equipped with a stainless steel ground wire and a 7" anti-kink spring guard to ensure safety and improve performance, respectively.

Fill-Rite's automatic fuel transfer nozzles feature heavy-duty construction and come in a variety of gasoline, diesel, and cold weather options.

The Piusi K24 Flow Meter (Model No. F0040700A) is a diesel flow meter that can be installed directly onto a fuel delivery nozzle or can be installed "in-line" at the end of the diesel delivery hose thanks to it's versatile 1" multiple inlet & outlet configurations. It also has an LCD read out display that can be rotated through 360 degrees making it easy to read where ever it is installed on the delivery hose.

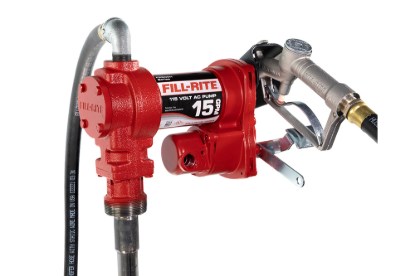

Fill-Rite's 600 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.   The FR610H model is a 115V AC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, manual nozzle, and installation components.

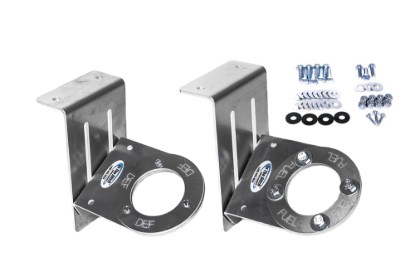

The kit includes a bracket for both the Fuel and Diesel Exhaust Fluid (DEF) Filler Necks as well as Flat Bed mounting attachments for both. All brackets feature slotted holes to help you get the perfect height and angle for each filler neck. Each bracket is made of 1/8" Aircraft Grade Aluminum and all mounting hardware is included to make installation quick and easy.

Fill-Rite's automatic fuel transfer nozzles feature heavy-duty construction and come in a variety of gasoline, diesel, and cold weather options.

Roll Cylinder Bracket for Jerr-Dan Standard Carriers. DOES NOT fit low profile or medium/heavy decks.

BUMPER TUBE WELDMENT

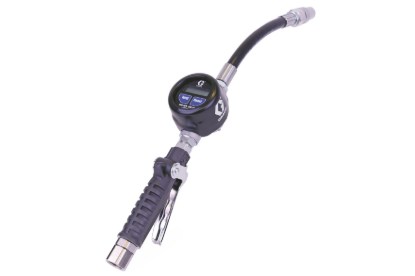

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.

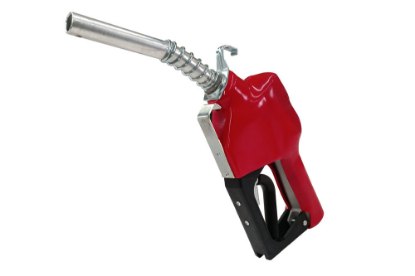

Unleaded Nozzle features a 3/4" inlet, 3/4" spout, a hook and a latch to hold the handle in the full-open position. For use with FR1210C, FR1202 and FR610 pumps.

1" Ultra High Flow Automatic Nozzle for gasoline, diesel, E15, biodiesel to B20 and kerosene. Includes grip spring on spout, angled inlet to reduce hose wear, heavy duty, red weather resistant cover, 3-position hold open latch. UL/cUL. Made in USA.

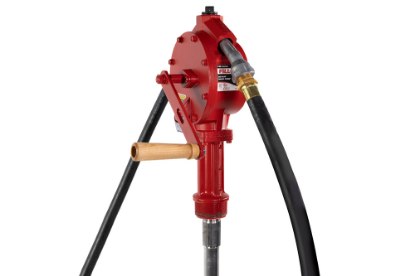

Fill-Rite's Rotary hand-operated fuel transfer pump series ensure consistent performance and are ideal for low volume transfer in rugged environments.

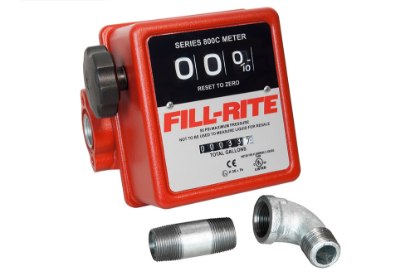

Fill-Rite’s 800 Series of mechanical fuel transfer meters are ideal for low-volume applications, registering up to 99 gallons per batch

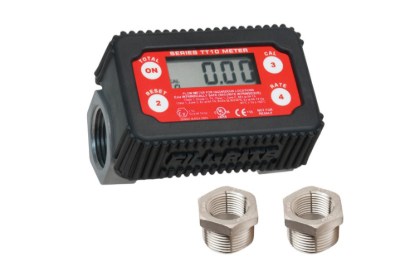

Fill-Rite's TT10 Series of digital fuel transfer meters are extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump.

Fill-Rite's 1200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.

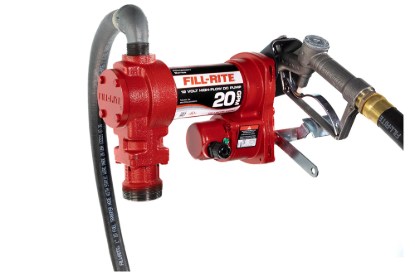

Fill-Rite's 4200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.   The FR4210H model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.

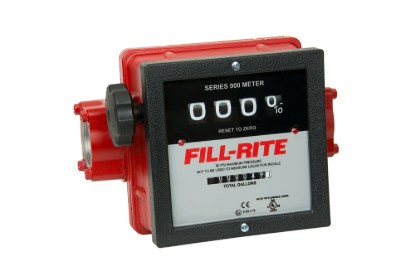

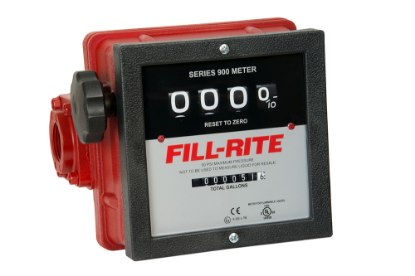

The 901C is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 2% accuracy. This model does not include additional installation components.

Maximum Speed (RPM): 1750

Maximum Working Pressure (Bar): 22.4

MaximumWorking Pressure (PSI): 325

Overall Depth (in): 12.5

Overall Height (in): 8

Overall Width (in): 6.75

Power Rating (HP): .75

Inlet Thread Size (in): .75

Maximum Current (A): 60

Outlet Thread Size (in): .5

Inlet Thread Gender: Female

Outlet Thread Gender: Female

Maximum Flow Rate (L/MIN): 11.4

Fill-Rite’s 900 Series of mechanical fuel transfer meters are ideal for high-volume applications, registering up to 999 gallons per batch. The 901C is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 2% accuracy. This model does not include additional installation components.

Please Note: Product Discontinued - ALL SALES FINAL!

SDN075RAN is a standard duty nozzle with an unleaded spout, red cover, hook, and a spring on spout. The trigger features a 3 position hold open latch. Rated for 50 PSI with NPT threads. Working flow rate range is 3.0 to 14.5 GPM.

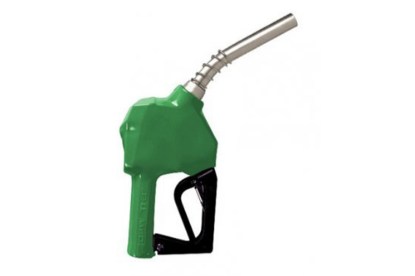

This nozzle is for diesel fuel ONLY, and is NOT intended for aviation or gasoline fuels. Use of such fuels will void the manufacturer's warranty. This nozzle is NOT intended to be used with Teflon tape. Use of Teflon tape will void manufacturer's warranty. Instead, we recommend using thread sealant. This automatic nozzle will NOT work with a gravity feed application. Use of such application will void return policy. NFPA 30-A Automotive and Marine Service Station Code (9-1.2.1) At any installation where the normal flow of product may be stopped other than by the hose nozzle valve, such as at pre-pay stations, the system shall include listed equipment with the feature that causes or requires the closing of the hose nozzle valve before product flow can be resumed, or before the hose nozzle valve can be replaced in its normal position in the dispenser; or the nozzle valve shall not be equipped with a latch-open device. Warning The OPW 11B nozzle complies with NFPA Code 30-A, and may be used with a hold-open device at installations (such as pre-pay and card readers) where the normal flow of product may be stopped or started by means other than with the hose nozzle valve. Use of foreign objects to hold open automatic nozzles could result in shut-off failure and personal injury.

Fill-Rite's automatic fuel transfer nozzles feature heavy-duty construction and come in a variety of gasoline, diesel, and cold weather options.

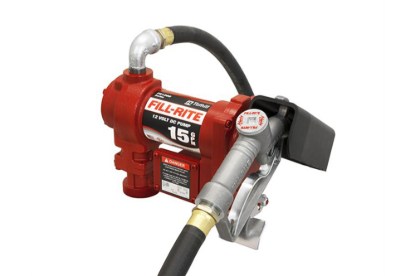

The Fill-Rite FR1210H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly manufactured in the USA, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

Please Note: Product Discontinued - ALL SALES FINAL!
