Wire Rope Cables

Heavy-duty tow operators and construction crews need their winch line to work as hard as they do. Performance and reliability matters in their line of work. That’s why they turn to SafeAll’s Steel Core Winch Line. From rugged off-road recoveries to industrial applications, this winch cable is built to perform.

Don’t let a minor mishap turn into a major headache. Be prepared for the unexpected with a winch line designed for quick, reliable recoveries. SafeAll’s Fiber Core Winch Line offers a flexible and lightweight option for light-duty tow operators, car haulers or weekend warriors who have found their way off the trail. The high-end construction of this wire rope features 6x19 strands of extra improved plowed steel wrapped around a fiber center. The flexibility of the synthetic core performs well with directional changes using snatch blocks or mechanical side pullers at the tail of a flat bed. The fiber center also excretes a special lubricant to reduce corrosion, friction and maintenance.

Save some space on your winch drum and gain some strength with SafeAll’s Steel Swaged Winch Line. Through the manufacturing process, this steel cable increases its capacity by more than 25 percent when compared to standard steel winch lines of the same diameter. This construction provides better resistance to abrasion, kinking and birdnesting.

The All-Grip Steel Core Winch Cables with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds. you can rely on this to get the job done. Check the chart below for more information.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 3/8" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. It also has an independent wire rope core that reduces internal wear and increases bending fatigue life. To add to that durability, there is a thimble eye on one end to reduce damage to the line.

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Eye Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 1/2" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. Finally, it has an independent wire rope core that reduces internal wear and increases bending fatigue life.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This steel core wire rope has an eye hook on one end and a thimbled eye on the other. Simply slip your existing wire rope's eye hook through the thimble. Measure your existing wire rope size or check your winch owner's manual to ensure you order the proper sized wire rope.

Other sizes are available, call for details.

• Easy Set Up: Simply slip your existing wire rope's eye hook through the thimble
• Resist Crushing: The IWRC (Independent Wire Rope Core) enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength.
• Design Factor: 3:1 ratio
• Flemished Eye


Available in the following sizes



Item #	Size	Length
IC101D	3/8"	35'
IC101E	3/8"	50'
IC200E	7/16"	50'
IC300E	1/2"	50'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

These wire ropes feature a fiber core center for flexibility and 6 x 19 construction for increased strength. Includes hook, thimble, steel sleeve and latch. Swivel hook features a spring-loaded latch and swiveling upper link to keep wire rope straight without coiling or twisting. Flemish spliced then swaged in a 500-ton press to create the strongest attachment available.

Match your existing wire rope size or check your winch manufacturer's recommendation before ordering.

• Durable Construction: 6 x 19 construction provides increased strength
• Increased Flexibility: Fiber core center provides flexibility
• Keep Rope Straight: Swivel hook features a swiveling upper link to keep wire rope straight without coiling or twisting
• Strong Attachment: Flemish-spliced and a 500-ton press operation provides the strongest attachment available
• Design Factor: 3:1 ratio

  Available in the following sizes



  Item #	Size	Length
  IC100CL	3/8"	35'
  IC101CL	3/8"	50'
  IC102CL	3/8"	100'
  IC103CL	3/8"	150'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

An Independent Wire Rope Center (IWRC) makes these winch lines strong and resistant to crushing. Includes hook, thimble, steel sleeve and latch. Hook is attached using a Flemish eye splice and steel sleeve for the strongest hook attachment available.

Other sizes are available, call for details. Measure your existing wire rope size or check your winch owner?s manual to ensure it uses 3/8" wire.

• Durable Construction: 6 x 19 construction provides increased strength
• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Strong Attachment: Hook is attached using a Flemish eye splice and steel sleeve for the strongest hook attachment available
• Design Factor: 3:1 ratio
• Dimensions: 3/8" dia.
• WLL: 4,800-lb.

  Available in the following sizes



  Item #	Size	Length
  IC10AL	3/8"	35'
  IC11AL	3/8"	50'
  IC14AL	3/8"	75'
  IC12AL	3/8"	100'
  IC12AL	3/8"	150'

Cable, 7/16 X 50'.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load.

Cable, Swage 7/16" X 35' Slflk Self Locking Hook

B/a Steel Core Cable with Self-Locking Swivel Hook and Thimble Ends.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load.

Zacklift 20,000# Warn Planetary Winch Kit. Manual Free Spool, Cable Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook, Factory Mounted Zacklift Cable Guide Located on the Zacklift, and Valve Section

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. The Elite Series winch cables from AW Direct provide strength and flexibility.

The All-Grip Fiber Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

AW Direct Elite Series Winch Cables can also be known as: winch line, wire rope carrier cables, and rollback cables. The Fiber Core Winch Cables provide superior flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, providing a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Additionally, the steel core only adds to that resistance. Not to mention, the load can’t be dropped unless it’s intentional, thanks to the fact it has a self-locking hook.

• Wire Rope Size: 3/8" - 3/4"
• Hook Size: 2.25 Ton - 9 Ton
• Self-Locking hook
• Flemished Eye
• 6X19
• Steel core

Available in the following sizes

Item #	Size	Length
WS38050LS-SC	3/8" - 15,100 MBS	50'
WS38075LS-SC	3/8" - 15,100 MBS	75'
WS38100LS-SC	3/8" - 15,100 MBS	100'
WS38125LS-SC	3/8" - 15,100 MBS	125'
WS38150LS-SC	3/8" - 15,100 MBS	150'
WS716150LS-SC	7/16" - 20,400 MBS	50'
WS716075LS-SC	7/16" - 20,400 MBS	75'
WS716100LS-SC	7/16" - 20,400 MBS	100'
WS716150LS-SC	7/16" - 20,400 MBS	150'
WS12050LS-SC	1/2" - 26,600 MBS	50'
WS12100LS-SC	1/2" - 26,600 MBS	100'
WS12150LS-SC	1/2" - 26,600 MBS	150'
WS12200LS-SC	1/2" - 26,600 MBS	200'
WS916100LS-SC	9/16" - 33,600 MBS	100'
WS916150LS-SC	9/16" - 33,600 MBS	150'
WS916200LS-SC	9/16" - 33,600 MBS	200'
WS916250LS-SC	9/16" - 33,600 MBS	250'
WS58100LS-SC	3/4" - 58,800 MBS	100'
WS58150LS-SC	5/8" - 41,200 MBS	150'
WS58200LS-SC	5/8" - 41,200 MBS	200'
WS58250LS-SC	5/8" - 41,200 MBS	250'
WS34200LS-SC	3/4" - 58,800 MBS	200'
WS34250LS-SC	3/4" - 58,800 MBS	250'
WS34300LS-SC	3/4" - 58,800 MBS	300'

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load. :
This cable starts out as the next size bigger cable and through the swaging process it compresses the cable down to the next size smaller. This makes the strength of the cable equal to the next size bigger but it does make the cable less flexible. Example:
A 3/8" swaged cable starts out as a 7/16" steel core cable, then through the swaging process gets compressed down to a 3/8" swaged cable. The 3/8" swaged cable has the working load limit of a 7/16" standard steel core cable. Please Note: Product Discontinued- ALL SALES ARE FINAL!

• STRONGER - Compact design allows for up to 26% greater strength than standard winch lines of the same diameter
• MORE DURABLE - Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing & kinking
• RESISTANT TO DRUM CRUSHING - Because the winch line is already compacted during the swaging process there is less space within the rope to compact if exposed to crushing
• CONSTRUCTION - (6 x 26 IWRC) Available in 3/8
• Self-Locking Hook
• Sizes available: 3/8" - 5/8"
• Lengths available: 50' - 250'
• WLL: 5,700 - 9,800
• Turnback Style Eye


  Available in the following sizes



  Item #	Size	Length
  3856LH-SG	3/8" - 20,400 MBS	56'
  3875LH-SG	3/8" - 20,400 MBS	75'
  38100LH-SG	3/8" - 20,400 MBS	100'
  38125LH-SG	3/8" - 20,400 MBS	125'
  38150LH-SG	3/8" - 20,400 MBS	150'
  71650LH-SG	7/16" - 27,200 MBS	50'
  71675LH-SG	7/16" - 27,200 MBS	75'
  716100LH-SG	7/16" - 27,200 MBS	100'

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Swivel Hook that has a safety latch, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

Note: Special Handling Fees Apply for Specific Items

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.

• Model: HD-234R
• Line Pull: 8,000 lbs
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• See Brochures for Product Drawings
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  Applications

• Replaces Chevron Car Carrier OEM Winches
• Replaces Jerr-Dan Car Carrier OEM Winches
• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Trailer



  Winch Mount Configuration





  Model Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 28'/min / 8.5m/min
• Gear Ratio: 34:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 140' / 42.7m
• Recommend Cable Size: 3/8" / 9.5mm
• Hydraulic Pressure Required: 2,375 PSI (164 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 3.6 Cu. In. (59 cc)
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric



  HD-234R Specifications:

• Ramsey Part Number: 121807
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  HD-200R Specifications:

• Ramsey Part Number: 121818
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Lever Release (Lever not included)
• Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA
• For an alternative winch see part number H-246
• Replaces part number 12-0300250



  HD-234RA Specifications:

• Ramsey Part Number: 121797
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Air Shift
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11.125"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA

Note: Special Handling Fees Apply for Specific Items

Please Note: Product Discontinued - ALL SALES FINAL!

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cables with Standard Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Not to mention, the load can’t be dropped unless it’s intentional thanks to the fact it has a self-locking hook.

• 6×19 Class of wire rope
• Steel Core winch lines
• Drop Forged Eye Hook
• Flemished Eye

Available in the following sizes

Item #	Size	Length	Min. Break Strength
WS516050-SC	5/16"	50'	9,800 lbs.
WS38050-SC	3/8"	50'	15,100 lbs.
WS38075-SC	3/8"	75'	15,100 lbs.
WS38100-SC	3/8"	100'	15,100 lbs.
WS38150-SC	3/8"	150'	15,100 lbs.
WS716050-SC	7/16"	50'	20,400 lbs.
WS716100-SC	7/16"	100'	20,400 lbs.
WS716150-SC	7/16"	150'	20,400 lbs.
WS716200-SC	7/16"	200'	20,400 lbs.
WS12050-SC	1/2"	50'	26,600 lbs.
WS12100-SC	1/2"	100'	26,600 lbs.
WS12150-SC	1/2"	150'	26,600 lbs.
WS12200-SC	1/2"	200'	26,600 lbs.
WS916100-SC	9/16"	100'	33,600 lbs.
WS916150-SC	9/16"	150'	33,600 lbs.
WS916200-SC	9/16"	200'	33,600 lbs.
WS916250-SC	9/16"	250'	33,600 lbs.
WS58100-SC	5/8"	100'	41,200 lbs.
WS58150-SC	5/8"	150'	41,200 lbs.
WS58200-SC	5/8"	200'	41,200 lbs.
WS58250-SC	5/8"	250'	41,200 lbs.
WS34200-SC	3/4"	200'	58,800 lbs.
WS34250-SC	3/4"	250'	58,800 lbs.
WS34300-SC	3/4"	300'	58,800 lbs.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Fiber Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Swivel Hook that has a safety latch for a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

The All-Grip Fiber Core Winch Cable with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

The All-Grip Fiber Core Winch Cable with Standard Hook is very strong. With a working load limit of up to 10,309 pounds and a minimum break strength as high as 36,600 pounds, you can rely on this to get the job done. Check the chart below for more information,

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with an alloy swivel hoist hook.

Note: Special Handling Fees Apply for Specific Items

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

• 17 options
• Wire rope size: 3/8"-1/2"
• Swivel hook size: 3 Ton - 5 Ton
• IWRC
• 6 x 26 swaged construction
• Flemished Eye
• Made in the USA

Available in the following sizes

Item #	Size	Length
WS38050S-SG	3/8" - 3 Ton Hook	50'
WS38075S-SG	3/8" - 3 Ton Hook	75'
WS38100S-SG	3/8" - 3 Ton Hook	100'
WS38125S-SG	3/8" - 3 Ton Hook	125'
WS38150S-SG	3/8" - 3 Ton Hook	150'
WS716050SZ-SG	7/16" - 4.5 Ton Hook	50'
WS716100SZ-SG	7/16" - 4.5 Ton Hook	100'
WS716150SZ-SG	7/16" - 4.5 Ton Hook	150'
WS716050S-SG	7/16" - 3 Ton Hook	50'
WS716075S-SG	7/16" - 3 Ton Hook	75'
WS716100S-SG	7/16" - 3 Ton Hook	100'
WS716150S-SG	7/16" - 3 Ton Hook	150'
WS12040S-SG	1/2" - 4.5 Ton Hook	40'
WS12050S-SG	1/2" - 4.5 Ton Hook	50'
WS12075S-SG	1/2" - 4.5 Ton Hook	75'
WS12100S-SG	1/2" - 4.5 Ton Hook	100'
WS12150S-SG	1/2" - 4.5 Ton Hook	150'

The All-Grip SuperFlex Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 22,422 pounds and a minimum break strength as high as 79,600 pounds, you can rely on this to get the job done. Check the chart below for more information

Please Note: Product Discontinued - ALL SALES FINAL!

This Steel Core Cable is made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. This cable also comes with an Alloy Standard Hook that has a safety latch, which provides a secure, safe connection.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

Item #	Size	Length
C10C	3/8"	35'
C11C	3/8"	50'
C14C	3/8"	75'
C20C	7/16"	50'
C21C	7/16"	100'
CABLE-CC	1/2"	75'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Swivel hook has a spring-loaded latch and swiveling upper link to keep wire rope straight without coiling or twisting. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Keep Rope Straight: Includes swivel hook with spring-loaded latch and swiveling upper link to prevent rope from coiling or twisting
• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength. Flemish spliced and thimbled to create strongest attachment available
• Design Factor: 3:1 ratio

  Available in the following sizes



  Item #	Size	Length
  C11CL	3/8"	50'
  C14CL	3/8"	75'
  C12CL	3/8"	100'
  C13CL	3/8"	150'
  C24CL	7/16"	75'
  C21CL	7/16"	100'
  C22CL	7/16"	150'
  C34CL	1/2"	75'
  C31CL	1/2"	100'

"B" Rotation, "Y" Drum 6-1/2"

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

These wire ropes feature a fiber core center for flexibility and 6 x 19 construction for increased strength. Includes hook, thimble, steel sleeve and latch. Hook features a spring-loaded latch for quick and secure connection. Flemish spliced then swaged in a 500-ton press to create the strongest attachment available.

Match your existing wire rope size or check your winch manufacturer's recommendation before ordering.

• Durable Construction: 6 x 19 construction provides increased strength
• Increased Flexibility: Fiber core center provides flexibility
• Strong Attachment: Flemish-spliced and a 500-ton press operation provides the strongest attachment available
• Design factor: 3:1 ratio
• Diameter: 3/8"
• WLL: 3,760-lb.

  Available in the following sizes



  Item #	Size	Length
  FC100L	3/8"	35'
  FC101L	3/8"	50'
  FC102L	3/8"	100'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Hook with latch allows for a quick secure connection. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Quick Connection: Includes hook with latch for a secure, quick connection
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength
• Design Factor: 3:1 ratio
• Flemished Eye


Available in the following sizes



Item #	Size	Length
C10AL	3/8"	35'
C11AL	3/8"	50'
C14AL	3/8"	75'
C12AL	3/8"	100'
C13AL	3/8"	150'
C20AL	7/16"	50'
C24AL	7/16"	75'
C21AL	7/16"	100'
C22AL	7/16"	1590'
C34AL	1/2"	75'
C31AL	1/2"	100'
C31AL	1/2"	1590'

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

This IWRC 6 x 19 class Wire Rope is Flemish spliced and thimbled to create the strongest attachment available. Rope features right regular lay construction and an IWRC center with six outside bundles made up of 19 to 25 smaller wires for ultimate strength. Hook allows for a quick secure connection. Includes a hook, thimble, steel sleeve and latch.

Match your existing wire rope size or check your winch manufacturer's wire rope size recommendation before ordering. Custom diameters and lengths available.

• Resist Crushing: IWRC enables winch line to wear longer, resist crushing and stay round when run through sheave wheels
• Quick Connection: Includes hook for a secure, quick connection
• Durable Construction: Features an IWRC center with six outside bundles made up of up to 25 smaller wires for ultimate strength. Flemish spliced and thimbled to create strongest attachment available
• Flemished Eye


Available in the following sizes



Item #	Size	Length
C10A	3/8"	35'
C11A	3/8"	50'
C14A	3/8"	75'
C12A	3/8"	100'
C13A	3/8"	150'
C20A	7/16"	50'
C24A	7/16"	75'
C21A	7/16"	100'
C22A	7/16"	150'

The HY-246R?L/SRH is a fully equipped hydraulic worm winch—8,000?lb capacity, automatic Ram-Lok clutch, left-hand pull orientation, complete with motor and mounting kit. Ideal for applications on carriers, wreckers, heavy equipment, or anywhere a robust, integrated winch setup is needed.

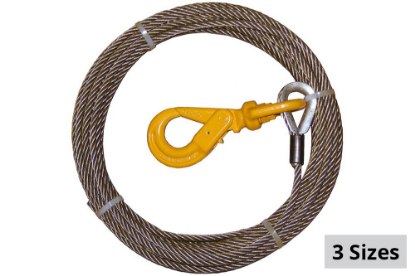

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a standard alloy hoist hook.

Ramsey 8,000?lb-rated hydraulic worm winch is a front-overwind left-hand lever-release configuration—excellent for towing rigs or heavy vehicle installs demanding strong, controlled pulling power.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy
