Ramsey H-246 8,000 lb. FOLS Hydraulic Worm Winch - Winch Only

0 reviews

Leave a Review

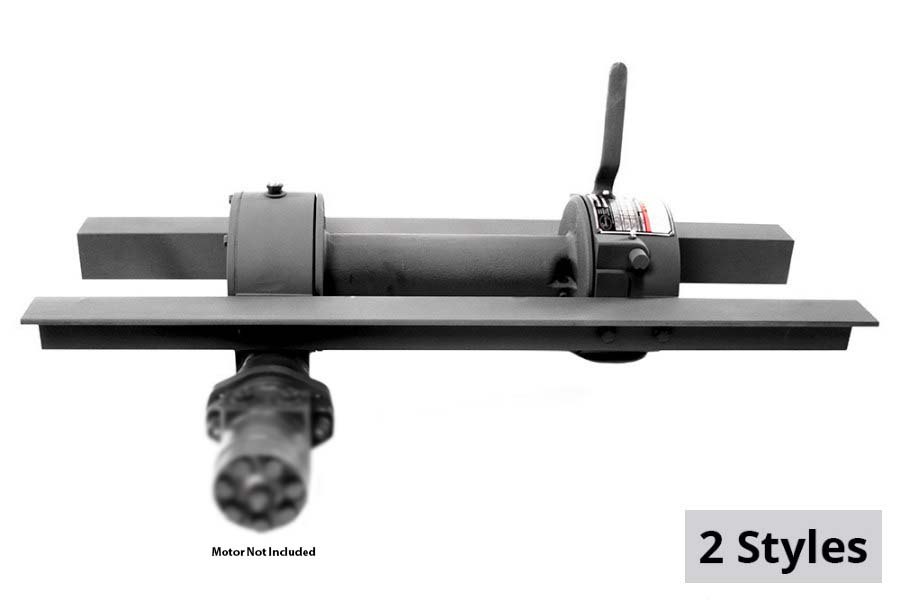

Picture of Ramsey H-246 8,000 lb. FOLS Hydraulic Worm Winch - Winch Only

Choose STYLE *: Lever Release (Lever Not Included)

Lever Release (Lever Not Included)

Not available

Lever Release

Lever Release

Not available

SKU: H-246R-FOLS

Price: $1,134.99–$1,354.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Replacement Ramsey Winch for Century and Champion carriers. Winch only. Does not include the motor, mounting angles.

Ramsey Part Number: 121710
Model: H246R
Line Pull: 8,000 lbs
Clutch: Lever Style (Lever Not Included)
Mounting Configuration: Front Overwind Left Side/Rear Overwind Right Side
Gear Ratio: 46:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Recommended Cable: 3/8"
For an alternative winch see part number HD-200R
Replaces part number 12-0300250
Meets SAE-J706
Made in the USA

Winch Mount Configuration

Applications
Replaces Century and Champion Carrier Winch
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model H246 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 16.5'/min / 5.0m/min
Gear Ratio: 46:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,800 PSI (124 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric

Related Schematics

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	STYLE
H-246-FOLS	H-246-FOLS	Lever Release (Lever Not Included)
H-246 LH	124059	Lever Release
