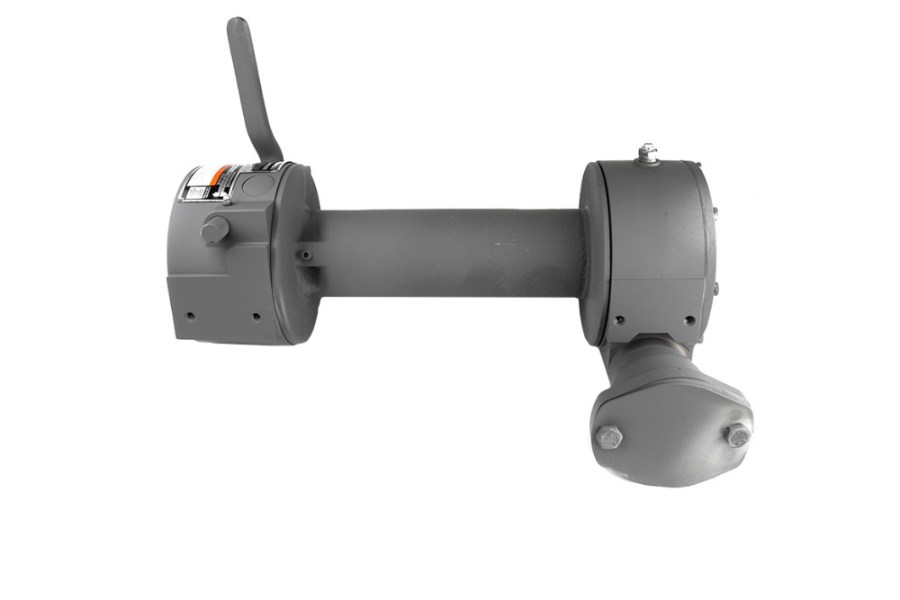

Ramsey H-246R 8,000 lb. FORS Hydraulic Worm Winch

Price: $1,221.99–$1,340.99

SKU: H-246R-FORS

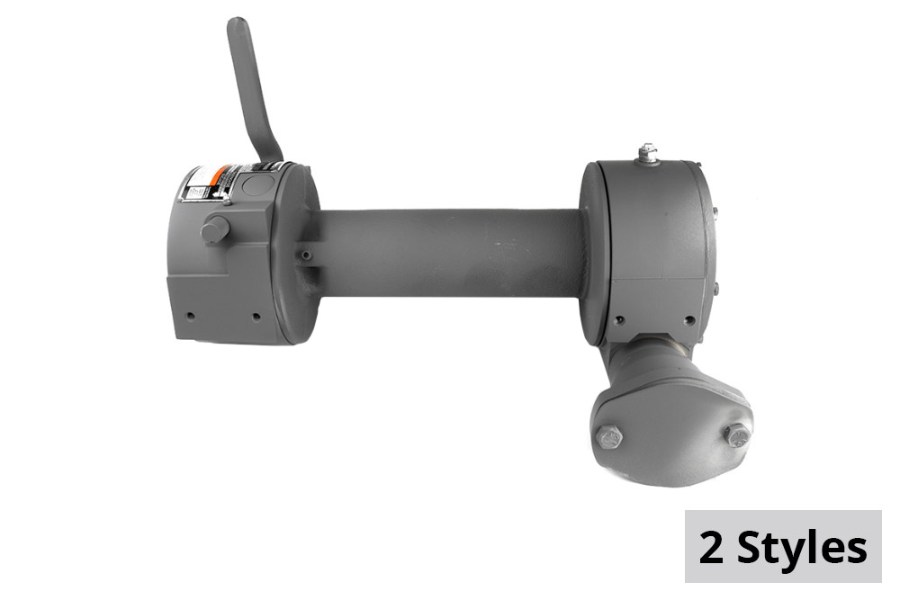

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

One of the most popular winches in the industry. These 8000 lb. Ramsey Winches are used on most Century, Vulcan and many other tow trucks. These winches are just the basic winch with no hydraulic motor and no mounting angles. This makes it more economical to replace your old winch rather than repair it.

Model: H246R
Line Pull: 8,000 lbs
Clutch: Lever
Mounting Configuration: Font Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 46:1
Motor Inlcuded: No
Angles Included: No
Drum Length: 11" +-/16"
Adjustable/Automatic Brake: No
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA

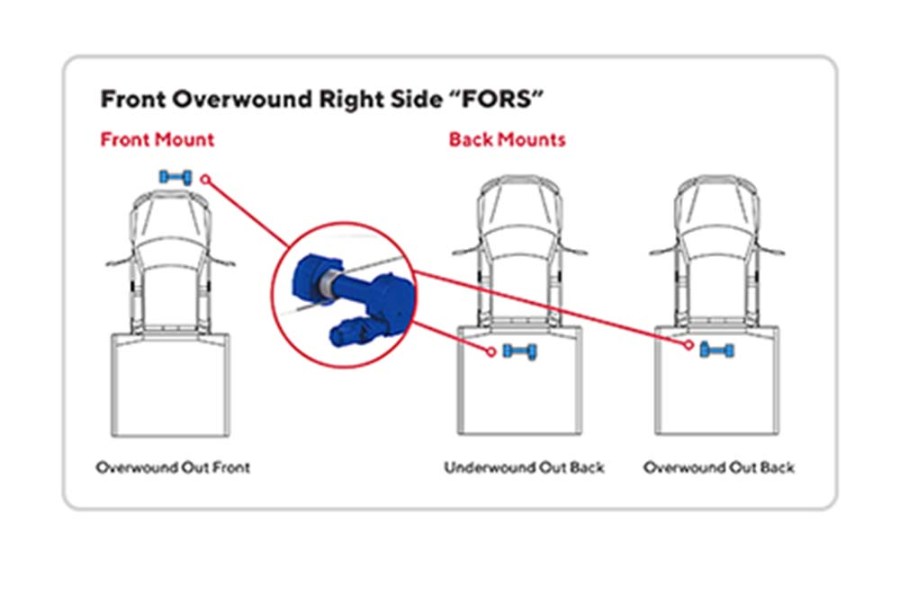

Winch Mount Configuration

Applications
Replaces many Tow Truck and OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model H246 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 16.5'/min / 5.0m/min
Gear Ratio: 46:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,800 PSI (124 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)

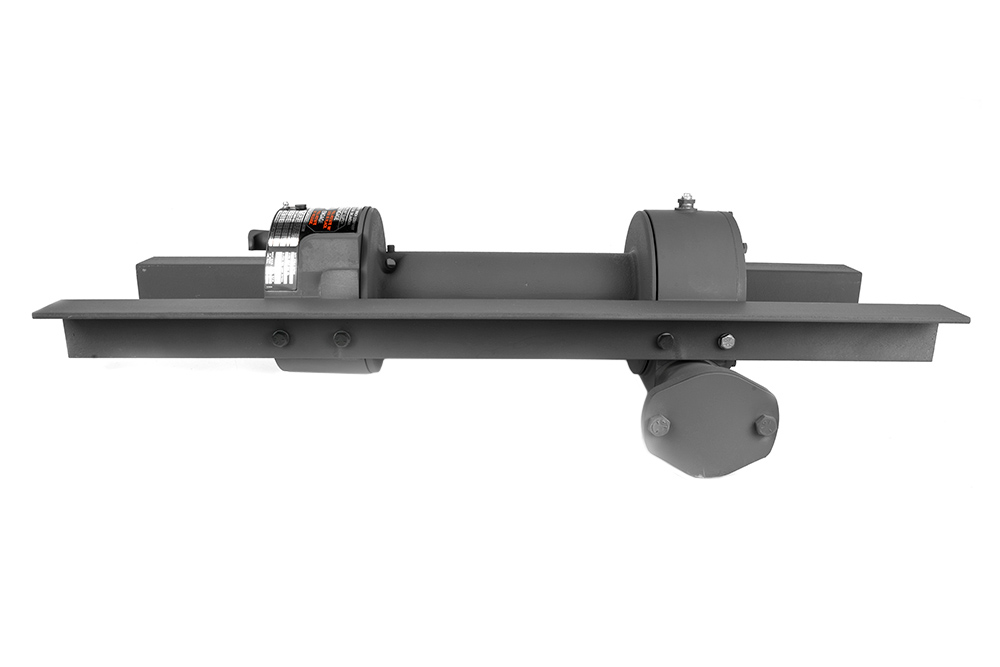

Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric
