Ramsey Patriot 15000 Electric Planetary Winch

Price: $2,703.99–$2,974.99

SKU: RW-PATRIOT 15000

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot 15,000 - Proven three-stage planetary gear system design for fast line speed. Easy to use and verify engagement spring loaded pull and rotate clutch design for free spooling-Patriot 15,000. Weather resistant solenoid assembly.

Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system design for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 15,000 lbs / 6,804 Kg (1st Layer of Cable)
Gear Ratio: 251:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 8" x 8" x 3.5" / 203.2mm x 203.2mm x 88.9mm
Cable Capacity: 90' / 27.4m
Recommend Cable Size: 7/16" / 11.1mm
1st Layer Line Speed: 25'/min / 7.6m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Pull and Rotate
Clutch Control: Manual

Style

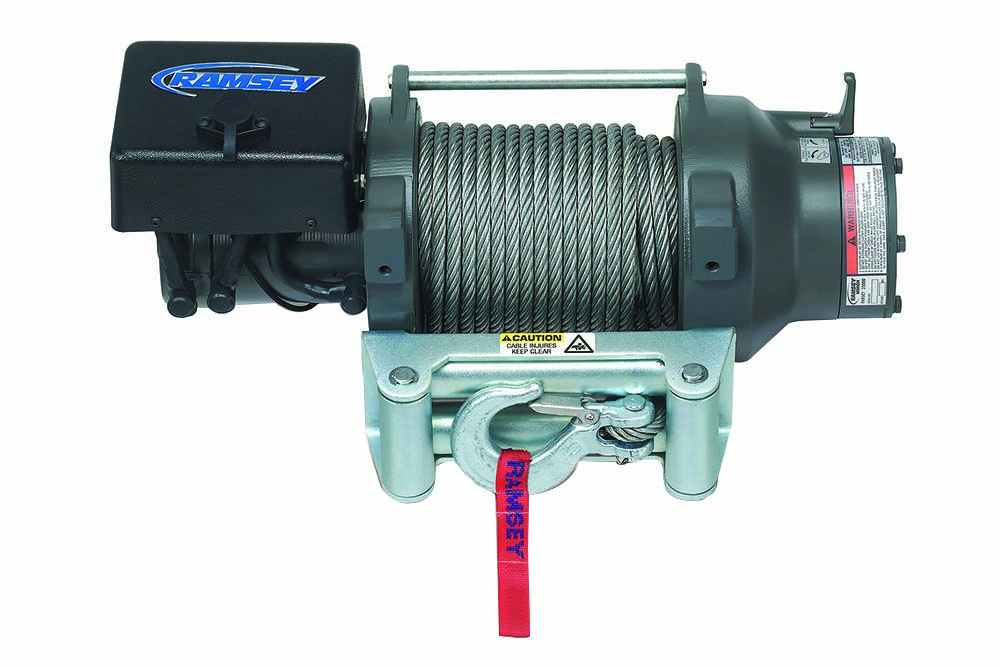

RW-109159: 12v with 12' Pendant

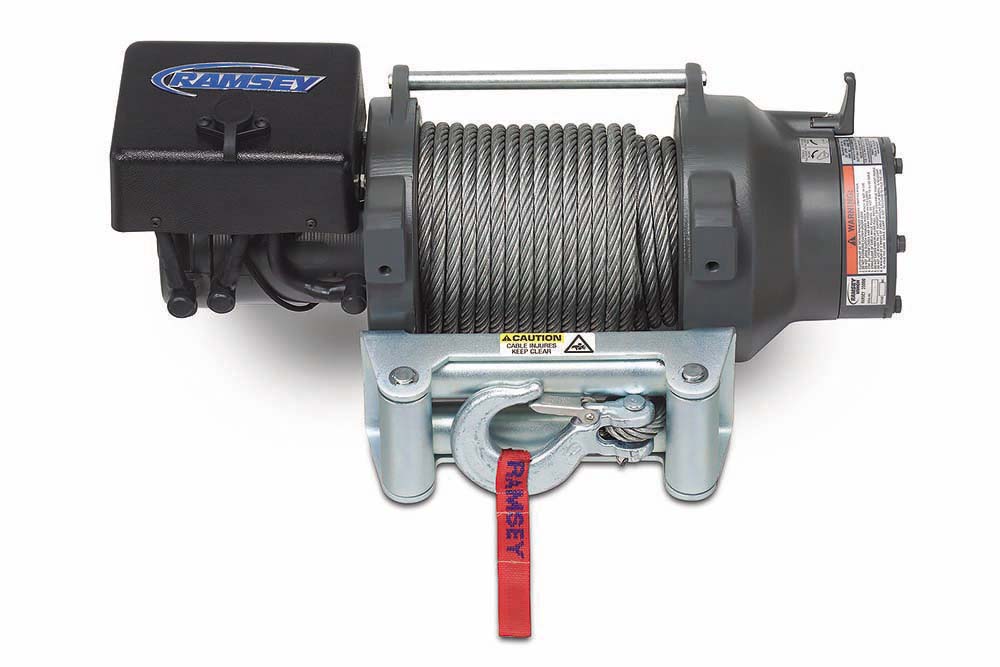

RW-109190: 24v CE with 12' Pendant

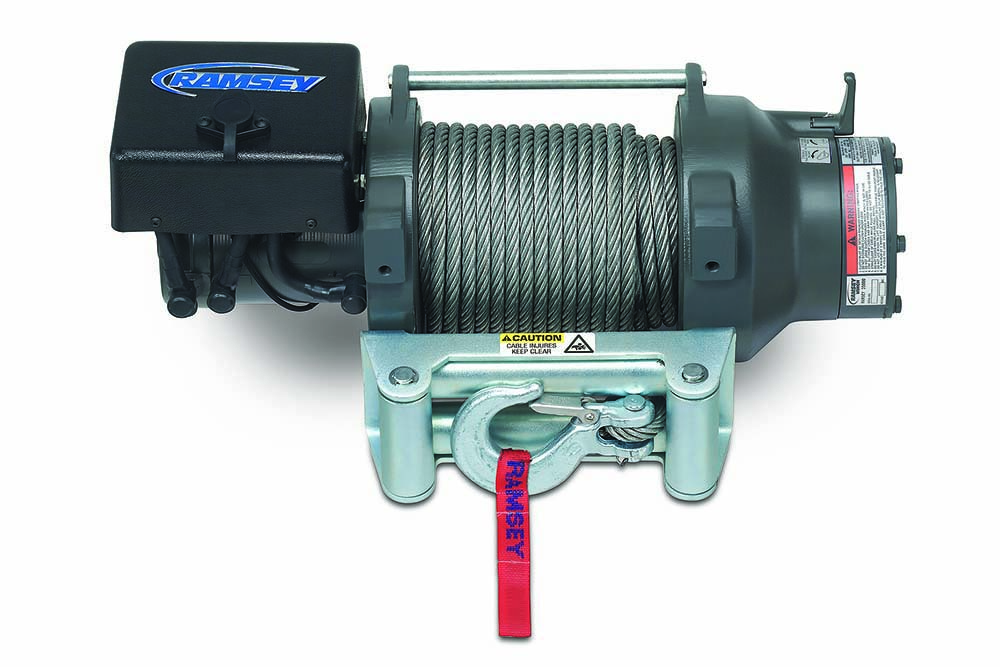

RW-109172: 24v with 12' Pendant
RW-109160: 12v with Wireless Remote
RW-109177: 12v CE with 12' Pendant
