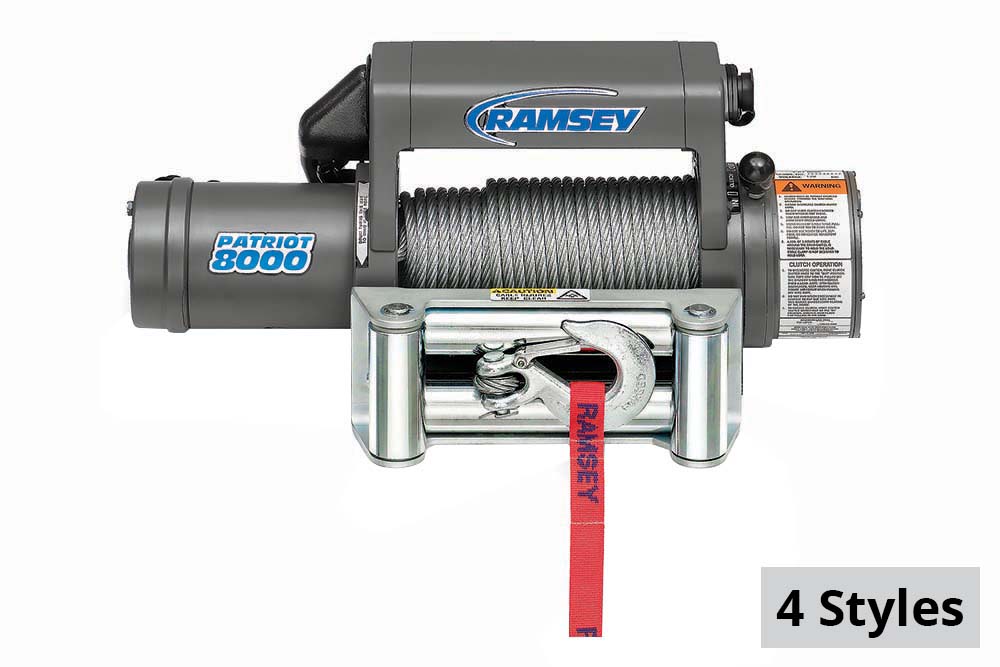

Ramsey Patriot 8000 Electric Planetary Winch

Price: $1,682.99–$1,914.99

SKU: RW-PATRIOT 8000

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Ramsey Patriot 8000 winch with proven three-stage planetary gear system design for fast line speed. Motor and solenoids are grounded directly to battery. Cam action clutch disengages planetary gear system for free spooling.

Efficient series wound electric reversible motor
Proven three-stage planetary gear system, designed for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
Gear Ratio: 126:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 95' / 29m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 35'/min / 10.7m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12v / 24v
Fairlead: Hawse / Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style
RW-111035: 12v with Hawse Fairlead

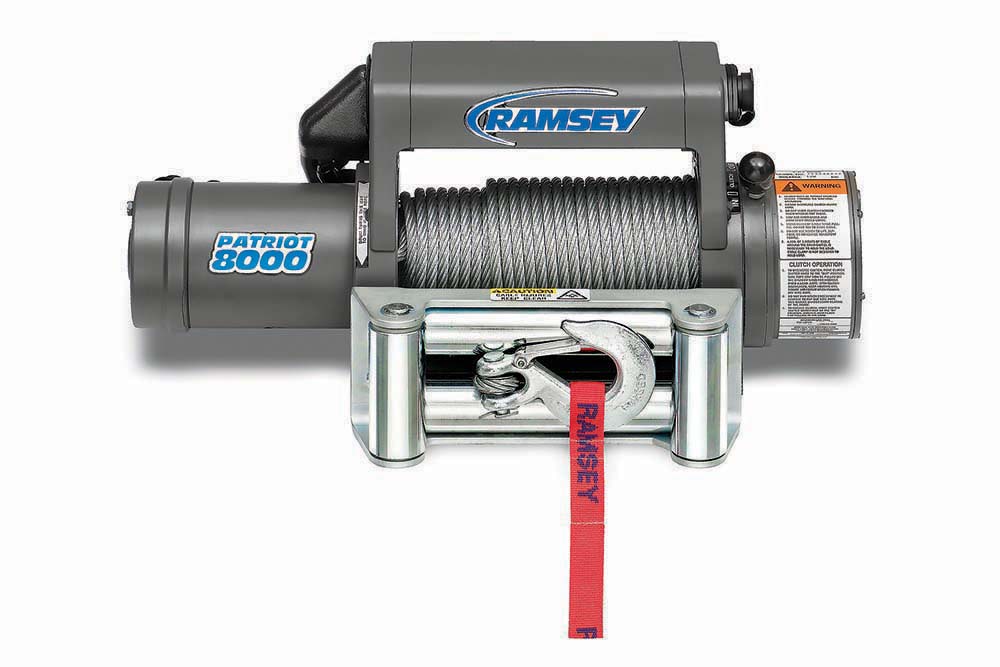

RW-111071: 12v CE with Roller Fairlead
RW-111036: 12v with Roller Fairlead

Brochure

Literature that describes this product:

Ramsey Patriot 8000 Electric Planetary Winch
