Ramsey Patriot Profile 12000 Electric Planetary Winch

Price: $2,890.99–$2,986.99

SKU: RW-PATRIOT PRO 12000

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot Profile 12,000 R with efficient 5.5 HP 12V/24V series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling-Patriot 12,000. Available in 12' pendant wired or wireless controller.

Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system design for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 12,000 Lbs / 5,443 Kg (1st Layer of Cable)
Gear Ratio: 194:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 7.5" x 3" / 229mm x 191mm x 76mm
Cable Capacity: 125' / 38.1m
Recommend Cable Size: 7/16" / 11.1mm
1st Layer Line Speed: 29'/min / 8.8m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Pull and Rotate
Clutch Control: Manual

Style

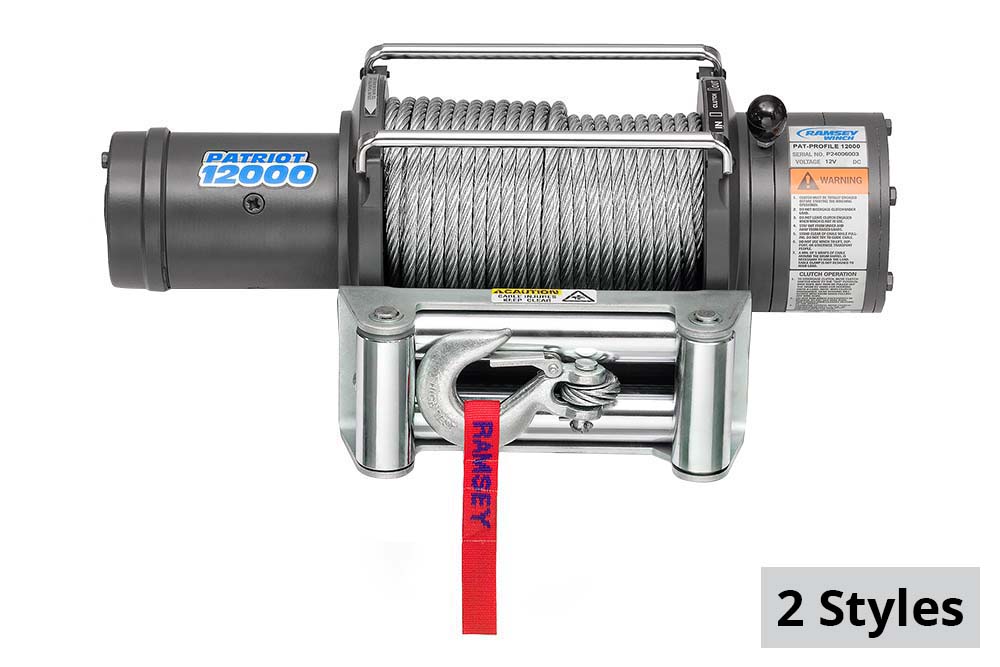

RW-109194: 12v with 12' Pendant

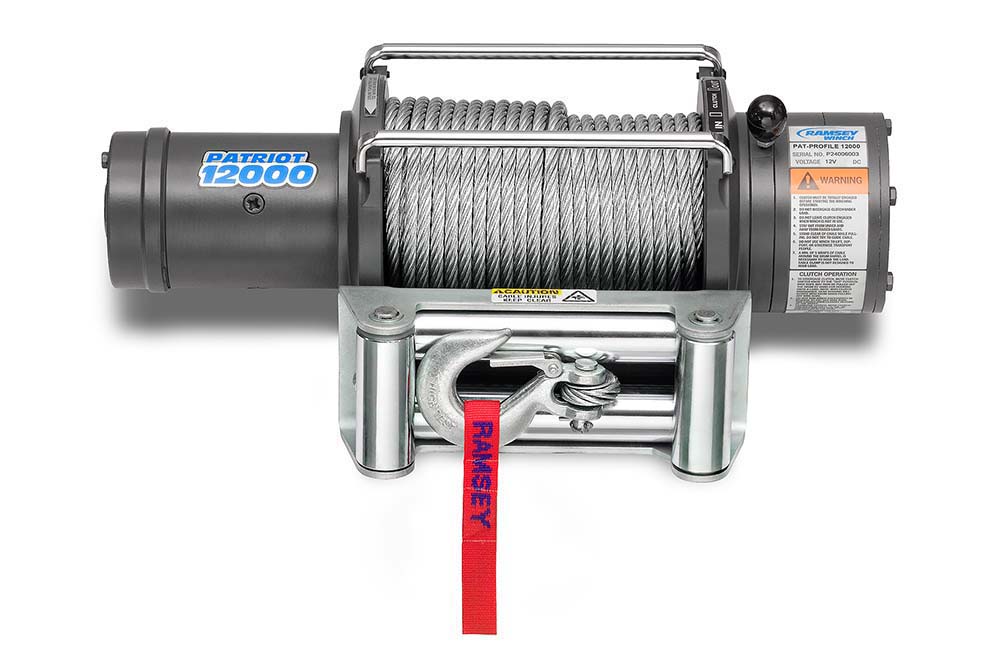

RW-109197: 24v with 12' Pendant
