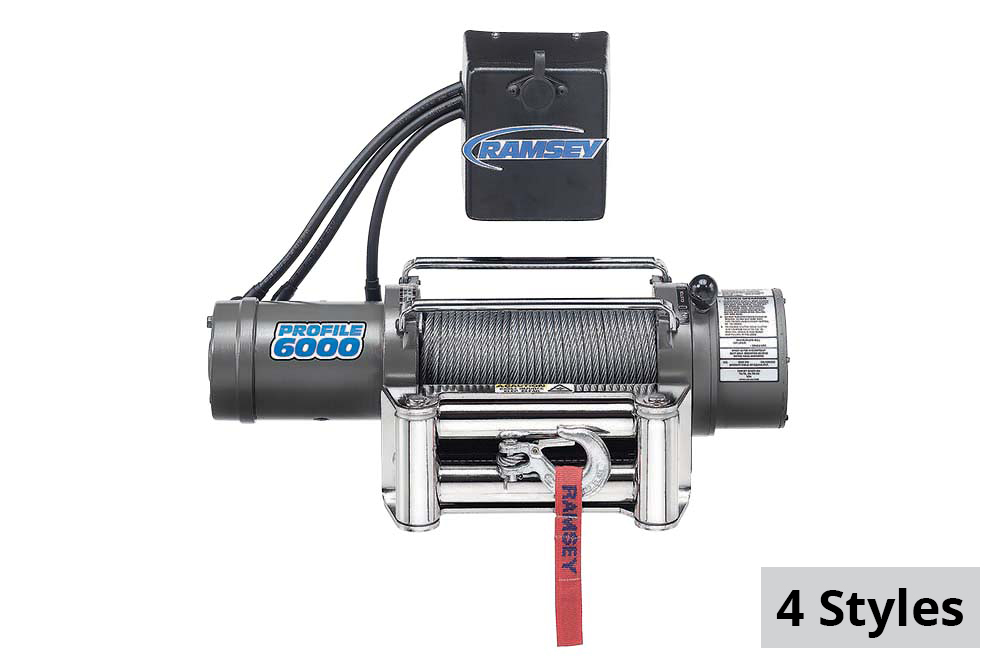

Ramsey Patriot Profile 6000R 6,000 lb. Electric Planetary Winch

0 reviews

Leave a Review

Choose STYLE *: 24v with 12' Pendant

24v with 12' Pendant

Not available

12v with 12' Pendant

12v with 12' Pendant

Not available

12v CE with 12' Pendant

12v CE with 12' Pendant

Not available

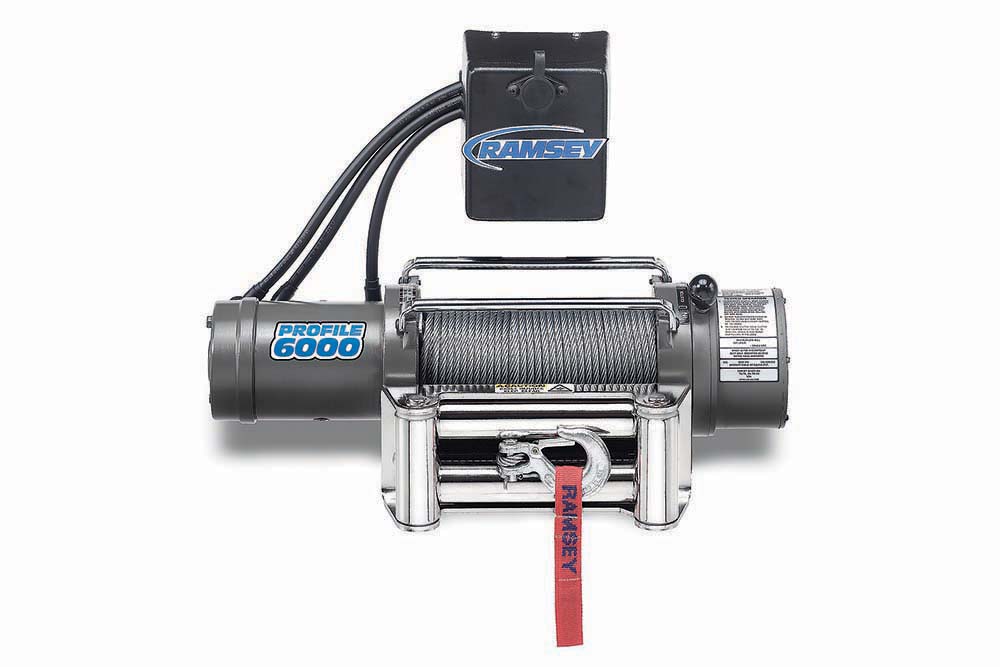

12v with Wireless Remote

12v with Wireless Remote

Not available

SKU: RW-PATRIOT PRO 6000R

Price: $1,814.99–$1,994.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot Profile 6000 R with 12V or 24V option. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Available with 12' pendant wired remote or wireless remote option.

Efficient series wound electric reversible motor
Proven three-stage planetary gear system, designed for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 6,000 lbs / 2,722 Kg (Based on first layer of cable)
1st Layer Line Speed: 45'/min / 13.7m/min
Gear Ratio: 90:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 100' / 30.5m
Recommend Cable Size: 1/4" / 6.4mm
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12v / 24v
Clutch Type: Cam Action
Clutch Control: Manual

Style
RW-109162: 12v with Wireless Remote
RW-109178: 12v CE with 12' Pendant
RW-109161: 12v with 12' Pendant
RW-109173: 24v with 12' Pendant

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	STYLE
RW-109173	109173	24v with 12' Pendant
RW-109161	109161	12v with 12' Pendant
RW-109178	109178	12v CE with 12' Pendant
RW-109162	109162	12v with Wireless Remote
