Ramsey Patriot Profile 8000R 8,000 lb. Electric Planetary Winch

Price: $1,715.99–$1,885.99

SKU: RW-PATRIOT PRO 8000R

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot Profile 8000R 12V with 12' Pendant or Wireless Option-Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling.

Efficient series wound electric reversible motor
Proven three-stage planetary gear system, designed for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
Gear Ratio: 126:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 95' / 29.0m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 35'/min / 10.7m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style

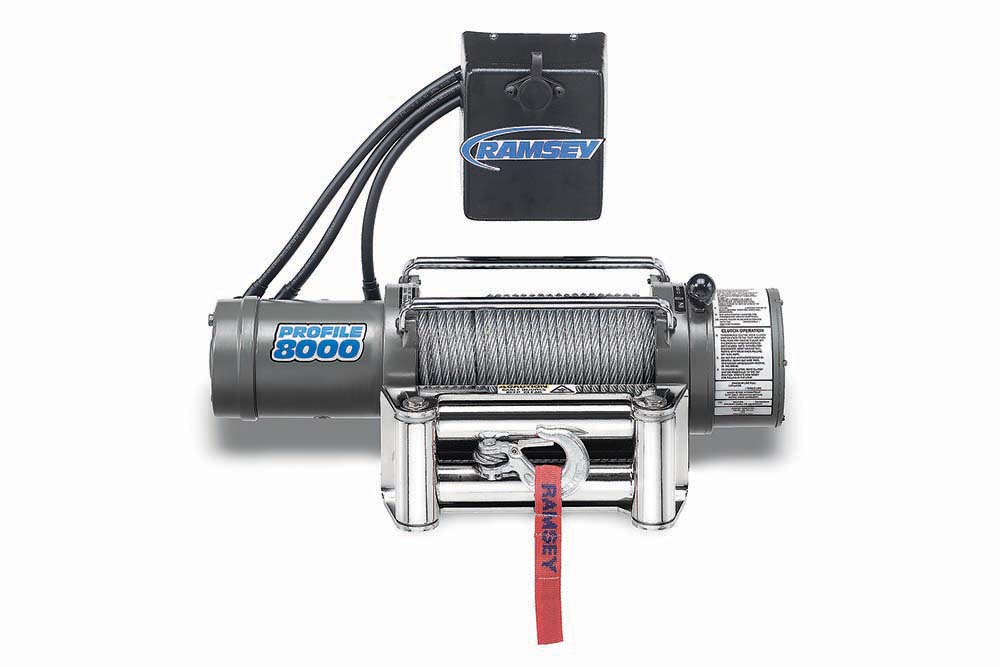

RW-109164: 12v with Wireless Remote

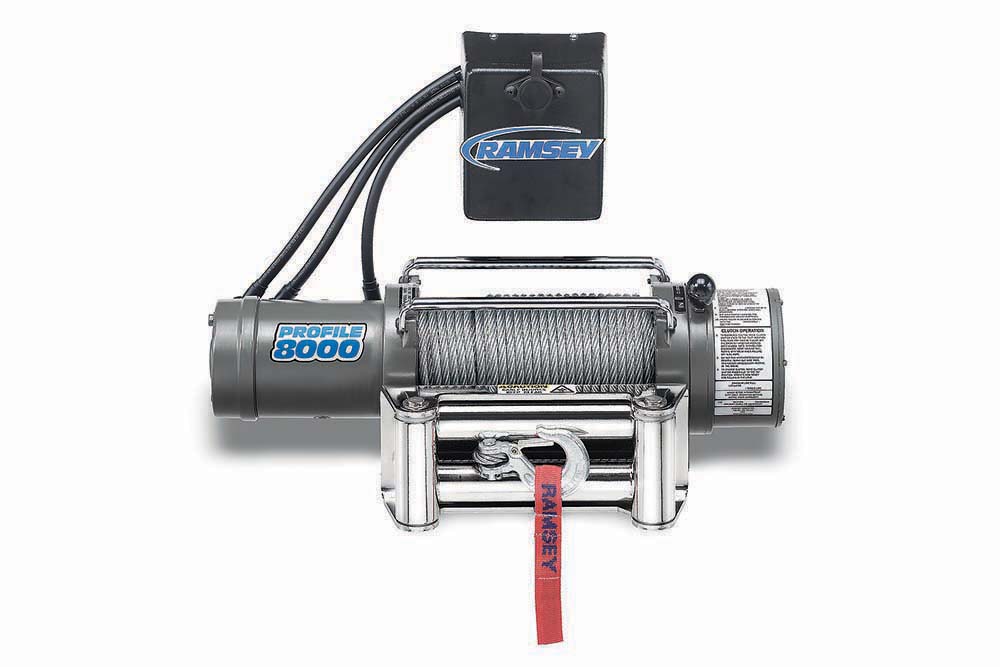

RW-109179: 12v CE with 12' Pendant

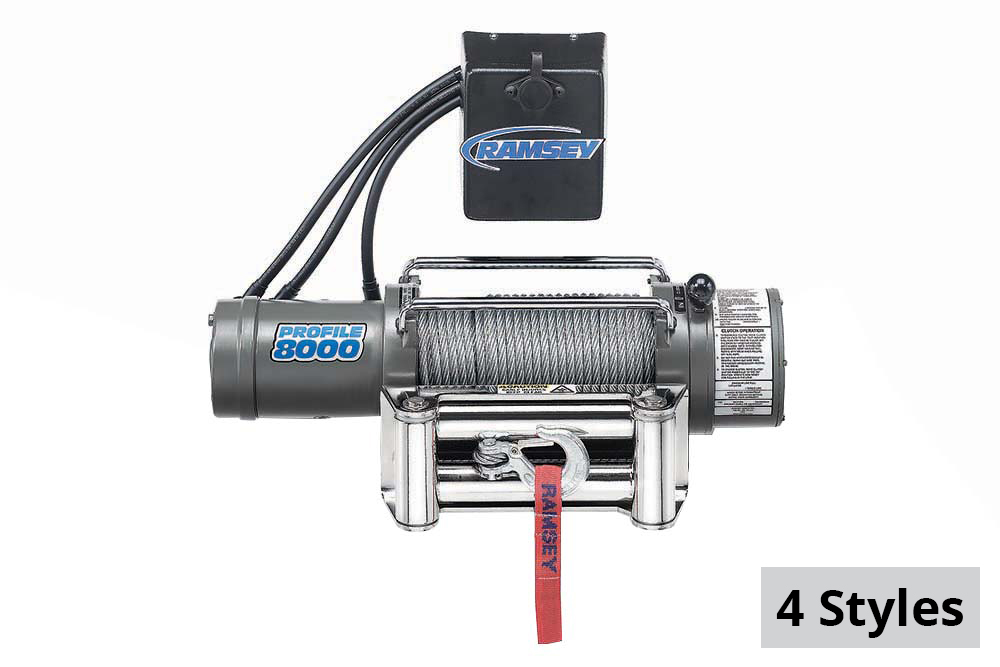

RW-109163: 12v with 12' Pendant
RW-109174: 24v with 12' Pendant
