Ramsey Patriot Profile 9000 R 12V Winch

Price: $1,696.99–$1,879.99

SKU: RW-PATRIOT PRO 9000R

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot Profile 9000 R with 12V Efficient 4.4 HP 12 V DC series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Available with 12' pendant wired or wireless remote.

Efficient series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system design for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 9,000 lbs / 4,083 Kg (1st Layer of Cable)
Gear Ratio: 138:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 105' / 32m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 29'/min / 8.8m/min
Motor Output: 4.4 HP
Motor Type: Series Wound
Voltage: 12V
Fairlead: Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style

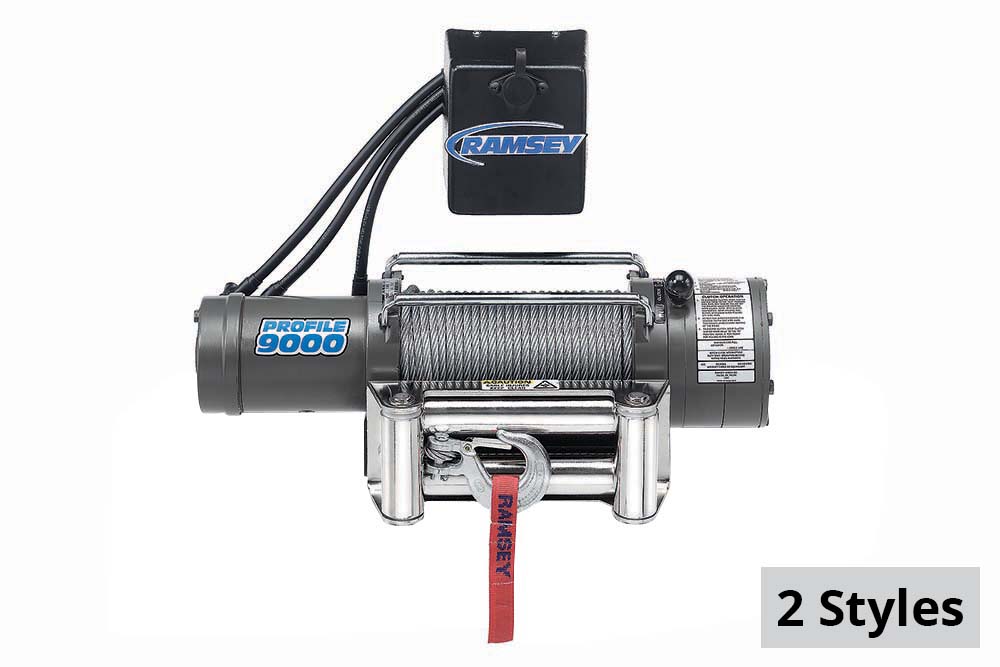

RW-109165: 12v with 12' Pendant

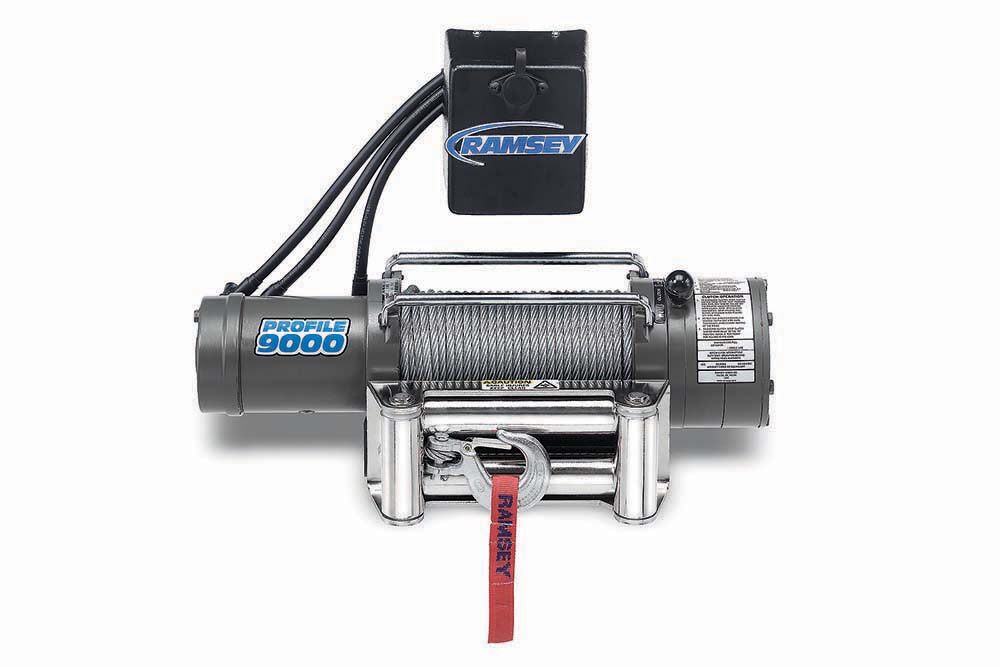

RW-109166: 12v with Wireless Remote
