Ramsey Patriot Profile 9500R 9,500 lb. Electric Planetary Winch

Price: $1,750.99–$2,016.99

SKU: RW-PATRIOT PRO 9500R

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot Profile 9500 R with an Efficient 5.5 HP 12V or 24V series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Available with 12' wired or wireless control option.

Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system designed for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4 roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 9,500 lbs / 4,309 Kg (1st Layer of Cable)
Gear Ratio: 138:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 105' / 32m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 35.4'/min / 10.8m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style
RW-109168: 12v with Wireless Remote

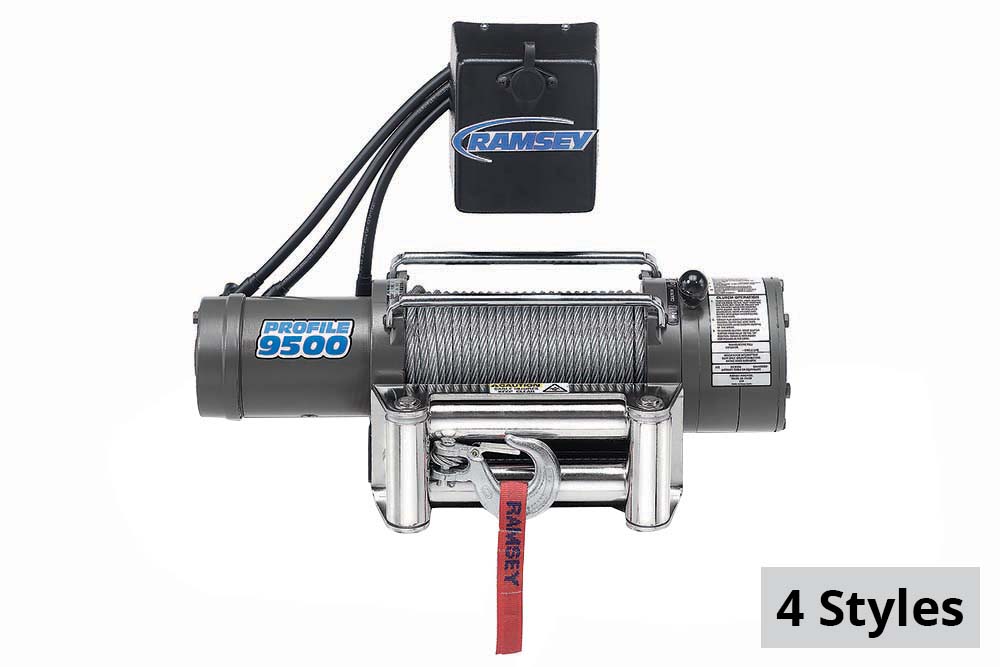

RW-109167: 12v with 12' Pendant
RW-109175: 24v with 12' Pendant

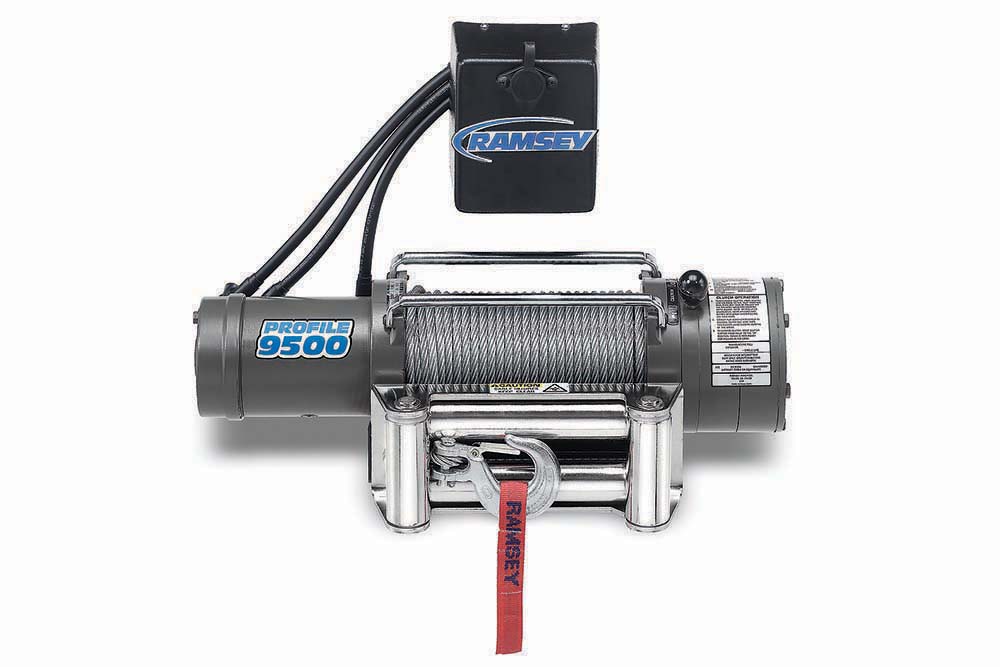

RW-109180: 12v CE with 12' Pendant

Brochure

Literature that describes this product:
