Ramsey RE 12000R 12,000 lb. Electric Planetary Winch

Price: $2,402.99–$2,618.99

SKU: RW-RE 12000R

STYLE *

Qty:

View Cart

Truck Freight Required

Description

RE Series of worm gear winches has set the standard for rugged reliability for the consumer self-recovery and light industrial applications. The Ramsey RE series of winches share many of the same components from our industrial rated line of worm gear winches making the RE the best choice for those who need a rugged and dependable winch for tough off-road applications, Self-recovery and light industrial use.

RE 12,000R 12V or 24V with 12' Wire Pendant-Strong worm gear provides load reversing protection. Exclusive semi-automatic RAM-LOK clutch disengages for free spooling.

Strong worm gear - provides load reversing protection
Motor and solenoids grounded directly to battery
Exclusive RAM-LOK clutch disengages for free spooling
Weather resistant solenoid assembly
12ft. Pendent
6ft. 2 gauge battery cable with connectors
4 way roller fairlead or Hawse fairlead
Available in 12 or 24 VDC
Made in the USA

Applications
General Industrial
Off-Road
Specialty Vehicle
Trailer

Specifications
Rated Line Pull: 12,000 lbs / 5,443 Kg (1st Layer of Cable)
1st Layer Line Speed: 16'/min / 4.9m/min
Gear Ratio: 470:1
Brake: Yes - brake is self-locking
Cable: Includes Cable
Drum Size (L x F x B): 8.25" x 7.25" x 3.50" / 209.6mm x 184.2mm x 88.9mm
Cable Capacity: 100' / 30.5m
Recommend Cable Size: 3/8" / 9.5mm
Motor Output: 2.5 HP / 4.8 HP
Motor Size: Series Wound
Voltage: 12V / 24V
Fairlead: Hawse / Roller
Clutch Control: Manual

Style

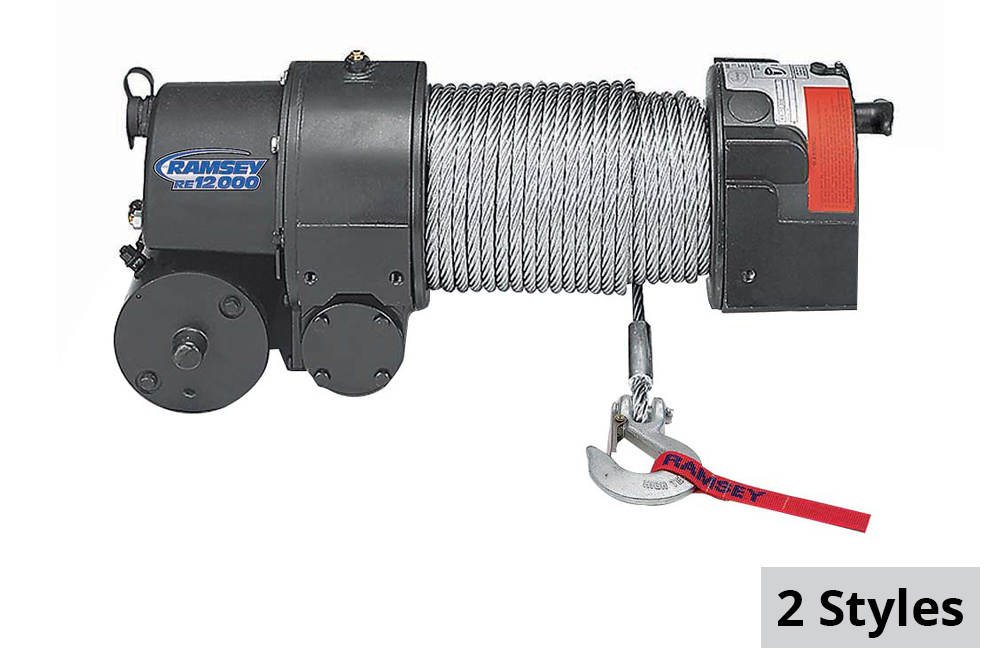

RW-112162: 12v with 12' Pendant

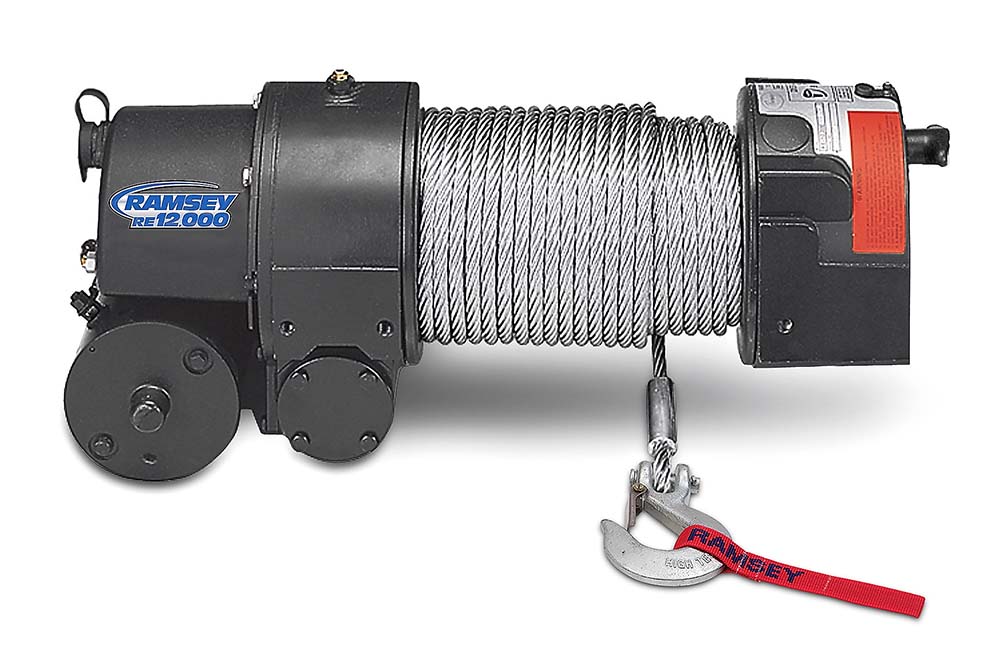

RW-110597: 24v with 12' Pendant
