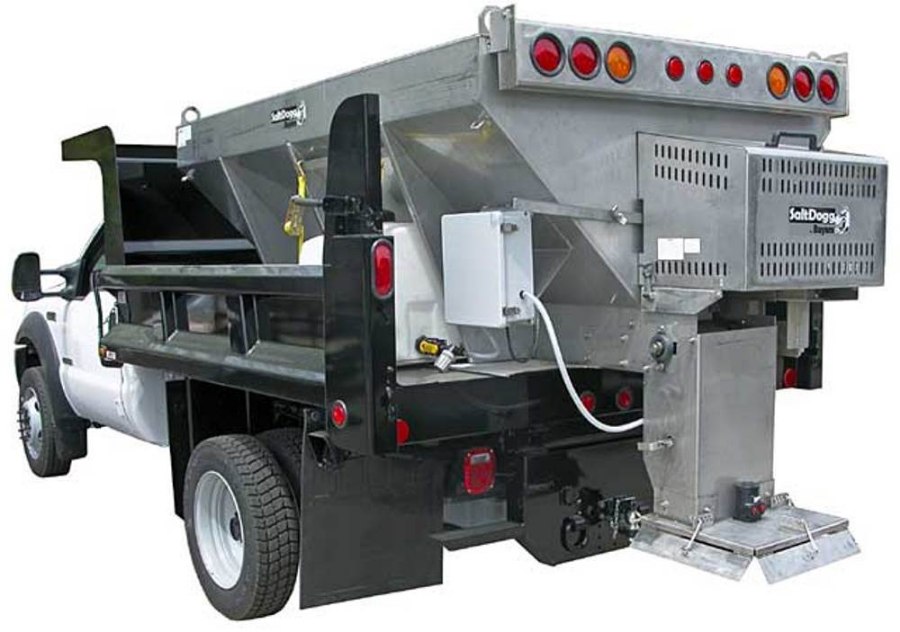

SaltDogg Slide-In Gas Stailess Steel Hopper Spreader Extended Chute

$5,410.00$6,617.00
SKU: SD-1400SIXSPREADER
*
View Cart
Truck Freight Required
Description
Buyers Products SaltDogg Cubic Yard Gas Hopper Spreader gives contractors and businesses a gas-powered spreader ready for commercial applications using bulk salt, bulk sand, or a 50/50 salt/sand Its. The spreader combines the power of a gas engine with modern spreader conveniences. mix.

  • SD-1400350SS 2.5 cu yd 120" Chute
  • SD-1400100SS 2.0 cu yd 96" Chute
  • SD-140025SS 1.5 cu yd 72" Chute
  • Hopper spreaders are completely self-contained, ultra-durable spreader units designed for ice and snow control
  • The rugged design allows for use with salt, sand and other materials
  • The complete assembly mounts easily on pickup, dump and platform trucks
  • CARBON STEEL MATERIAL HOPPER - Electrically welded 12-gauge ends and steel sides sloped at 45? are constructed with channel formed top edges
  • 12-gauge vertical supports add extra strength to the unit
  • The single lift point on the cross support beam is located at the unit's center of gravity to allow for easy loading and unloading
  • The floor is constructed of 10-gauge steel
  • SD-1400100 Extended Chute - 96" Spreaders - Body Side Length, 8'; Overall Length, 113"; Width, 47"; Height, 32 -1/2"
  • Recommended Use, 3/4 or 1-Ton Trucks
  • CONVEYOR - The conveyor is made of 12"wide all-steel pintle chain with 3/16"x 3/4"cross bars
  • Chain strength is 11,000 lbs.per strand;22,000 lbs. total weight
  • Drive sprockets are 6-tooth cast iron, on a 1-1/8" diameter shaft
  • Conveyor chain has an adjustment range of 3-1/2"
  • Drive shaft has heavy-duty, sealed, self-aligning ball bearings with grease fittings
  • Idler drum has heavy-duty 1" diameter ball bearings
  • CONVEYOR GEAR CASE - Gear is constructed of aluminum bronze, worm gear is hardened steel and ground
  • Housing is made of durable cast iron
  • Gear ratio is 20:1 with 1" input shaft and 1-1/8"output shaft on tapered roller bearings
  • SPINNER CHUTE ASSEMBLY - A polymer disc with four fins is connected to a 3/4"diameter shaft secured on two pillow block bearings
  • The spreading material is guided from the conveyor to the spinner plate through an enclosed 12-gauge chute with internal and external deflectors
  • Adjustable deflectors allow for complete directional spread control and full or compact spread
  • Total spread radius ranges from 2'to 25'
  • The extra wide rear deflector protects the rear and under carriage of the vehicle
  • FEEDGATE - Lever operated with a friction lock for accurate adjustment
  • ENGINE - Heavy-duty 10.5 horsepower industrial/commercial Briggs & Stratton gasoline engine
  • Engine comes equipped with alternator and 12 volt electric starter with in-cab start/stop and electric throttle control (standard)
  • Entire engine is completely protected by the convenient hinged hood
  • ELECTRIC THROTTLE CONTROL - Throttle control unit allows for full-range of throttle settings,including idle and full choke,via the in-cab hopper control box
  • Use of electric throttle control eliminates cable freezing, binding and breaking
  • CLUTCH - 12 volt DC electric clutch has a three-position in-cab switch, for greater control and material economy
  • Also allows for low speed operation and spot spreading

    Available in the following sizes

    Item # Capacity Construction
    SD-1400250SS 1.5 cu.yds. Stainless Steel
    SD-1400100SS 2.0 cu.yds. Stainless Steel
    SD-1400100 2.0 cu.yds. Carbon Steel
    SD-1400350SS 2.5 cu.yds. Stainless Steel
