Standard Equipment:
Capacity - 70,000 Lbs.
Deck Rating - 50,000 Lbs. in 10'
Axles - 2 – 25,000 Lb. Tandem Dual Tire, Oil Bath Bearings; Prepped for Air Inflation
Suspension - Neway RLU228 Air Ride 22,500 Lb. Capacity
Pin Setting - 18"
Loaded Ground Clearance - 20"
Loaded Deck Height - 38"

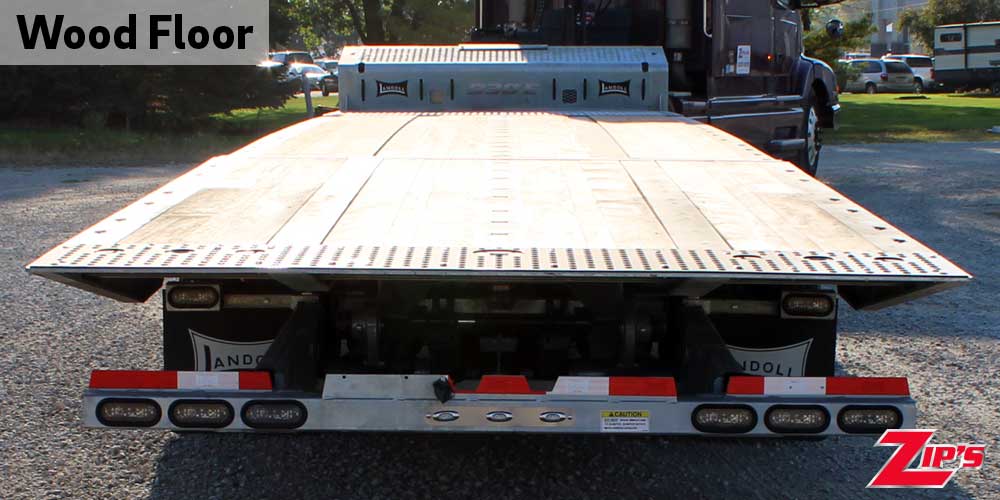

Lights - Grote MicroNova® LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe(10 Year
Warranty)
Tie Downs - Double Key Hole Chain Slots with Square Stake Pockets on 16" Centers
Load Angle - 11 Degree with 15' Tail
Base Options:

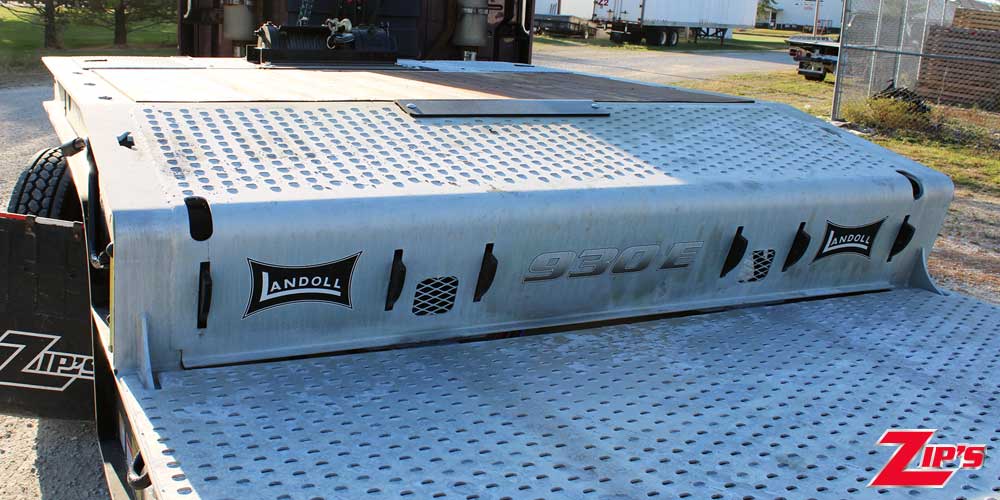

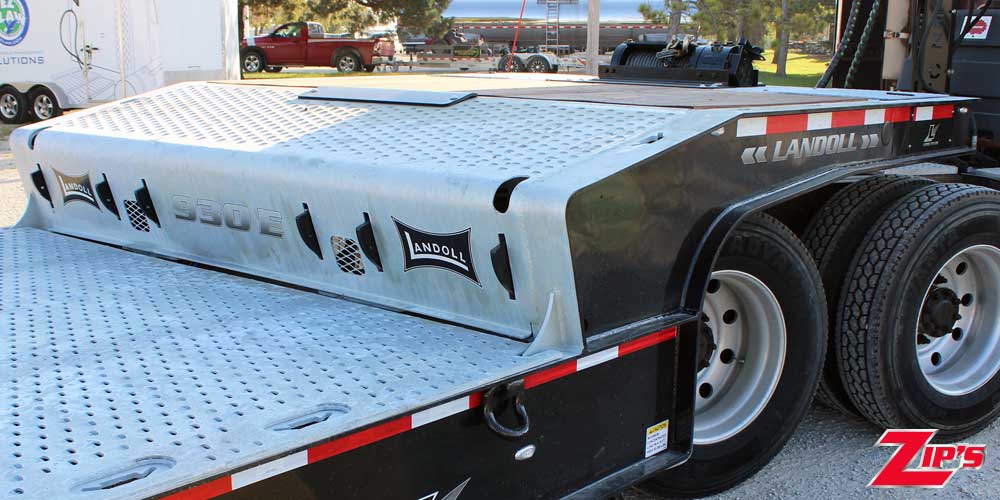

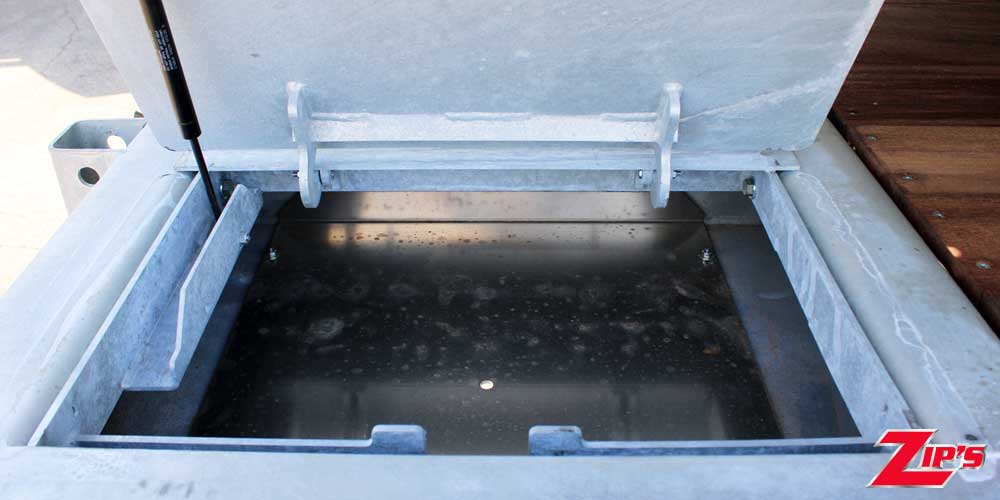

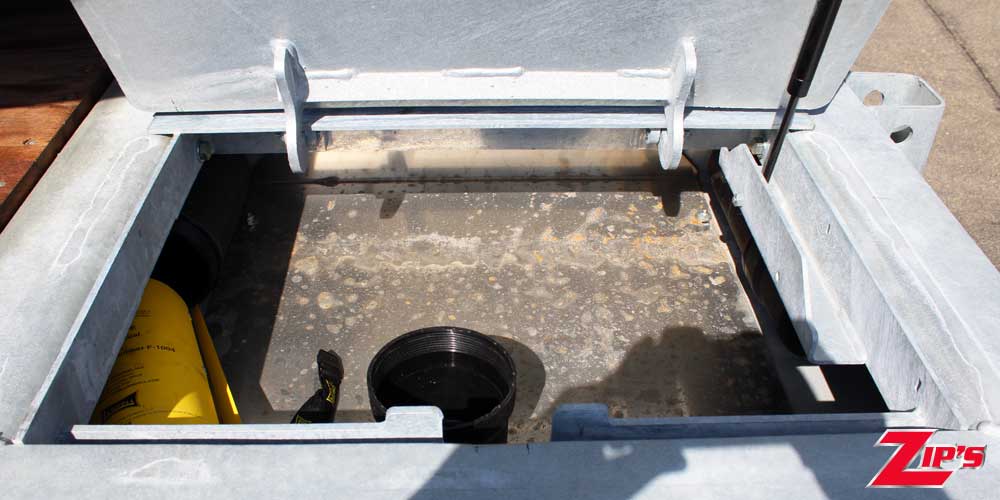

Gooseneck Toolboxes - Non-Load Bearing Top Opening Toolboxes
Deck Width - 8' 6" Wide Deck
Parking Stands:
Parking Stands - Jost 2 Speed
Slope Ramp:
Slope Ramp - 6' Air Operated Ramp, Galvanized
Winch and Accessories:

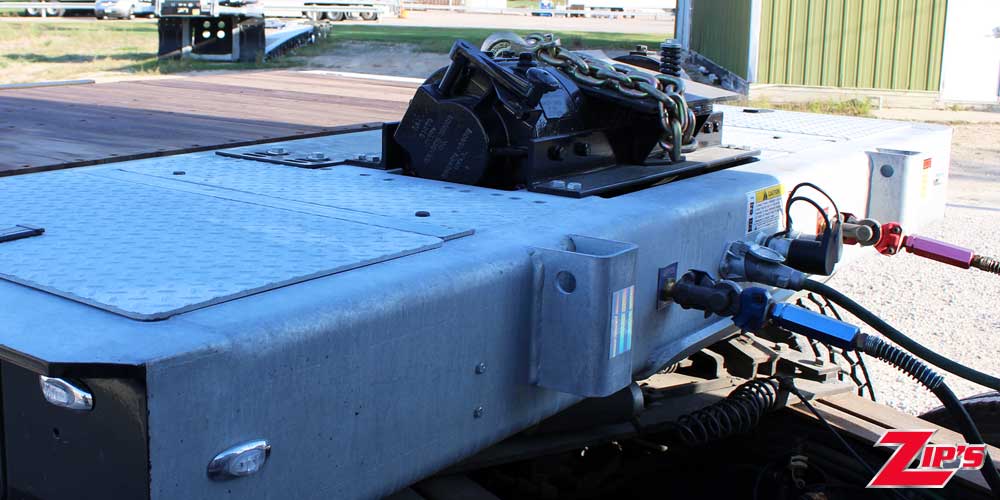

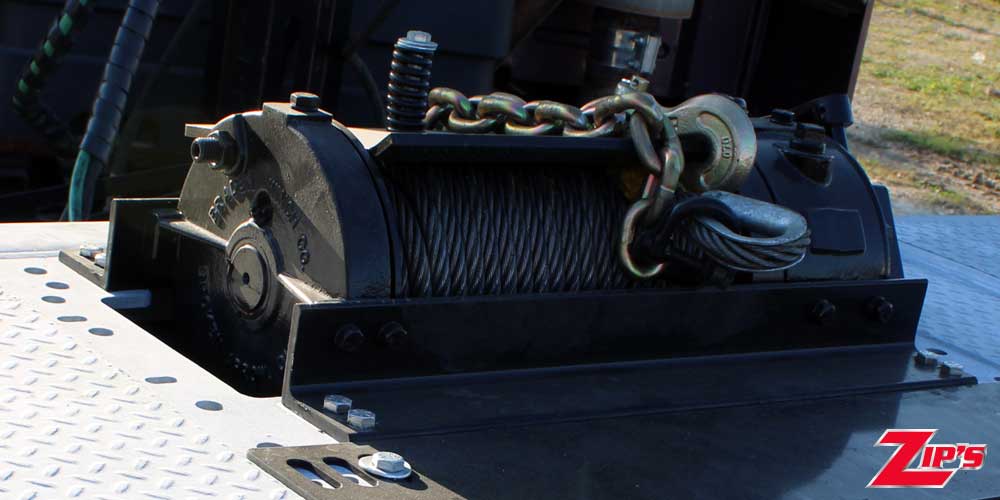

Winch - 20K Braden, Worm Gear
Upper Deck Slope Wear Protection - Wear Plate

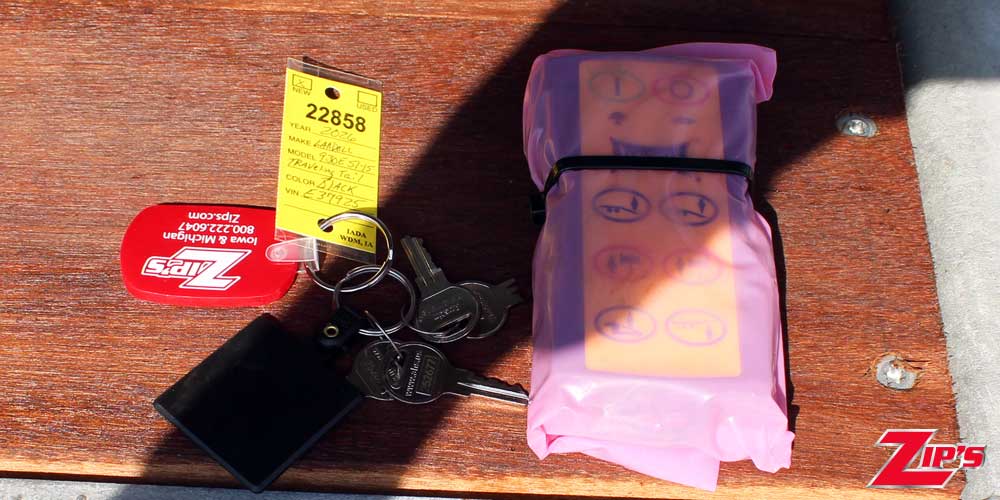

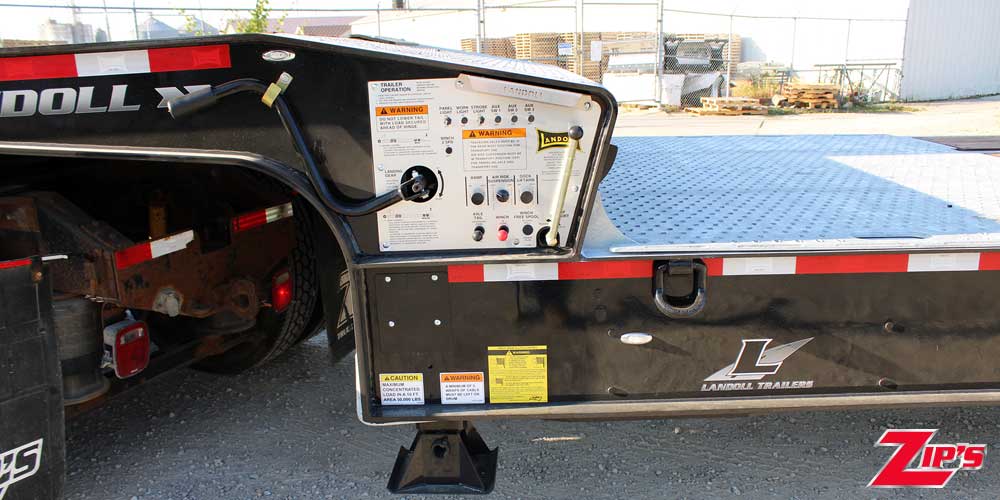

Wireless Remote Control (6 Function: Tilt, Travel, and Winch)
Tie Downs:
Lower Deck Center Keyhole Tie Downs Flush with Wood
Center Keyhole Tie Downs Flush with Wood - Tail
Bent D-Ring Tie Down Each Side At Front Of Lower Deck
Deck and Accessories:

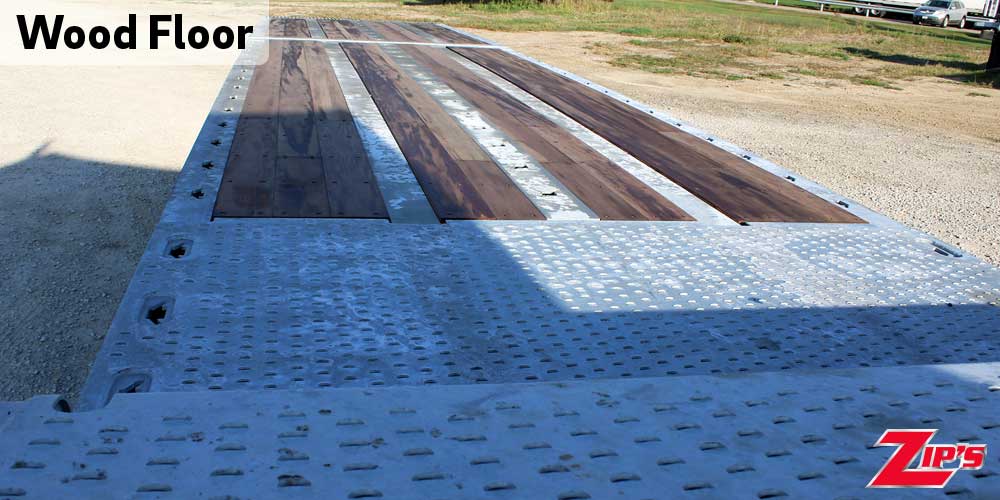

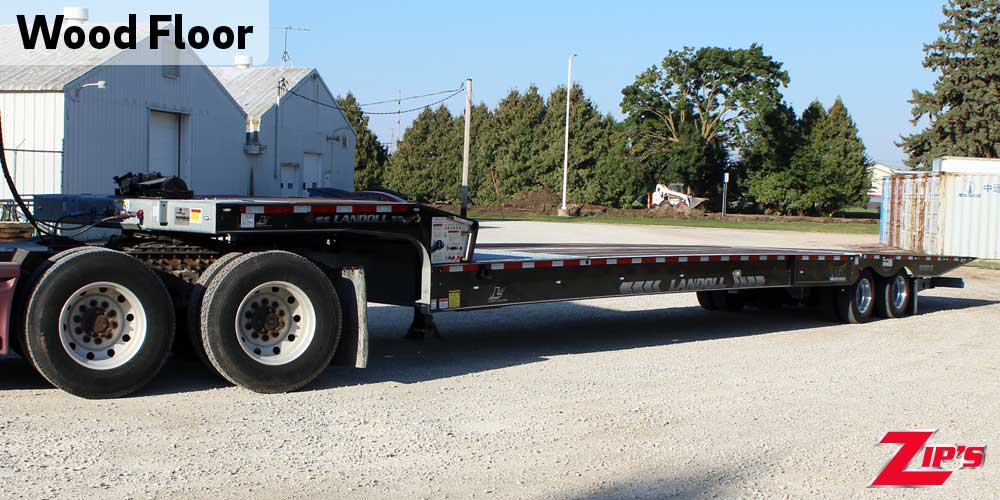

Apitong Wood Deck On Tail-1"

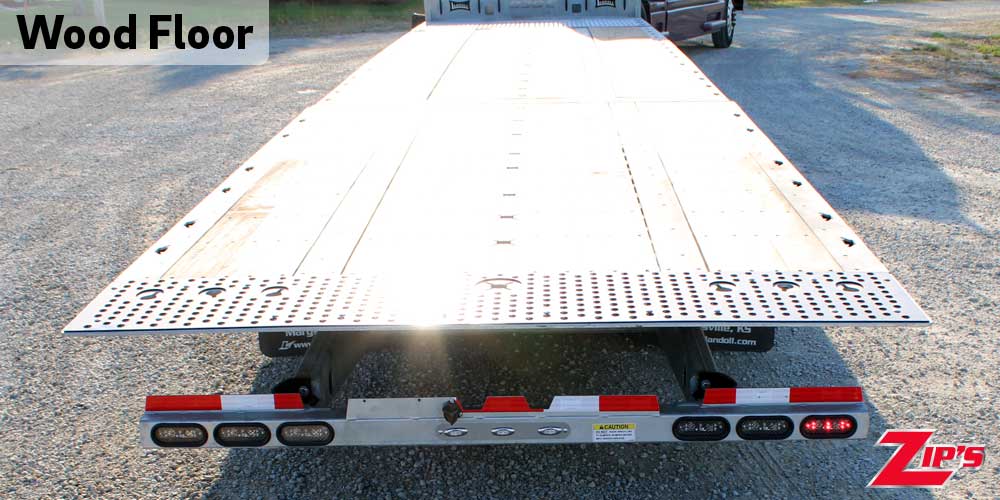

Landoll Traction Plate on Approach (Bolt-On) - Painted
Deck Type - 1-3/8" Apitong Wood Decking

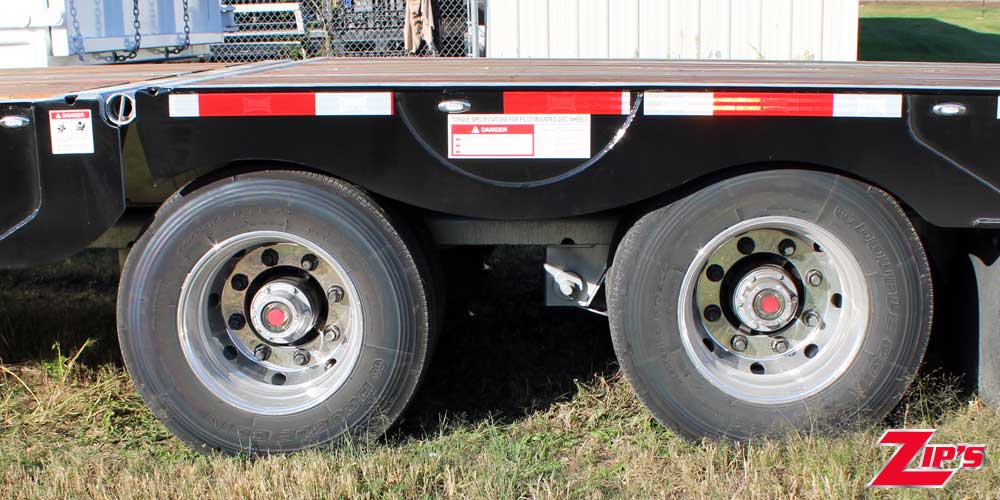

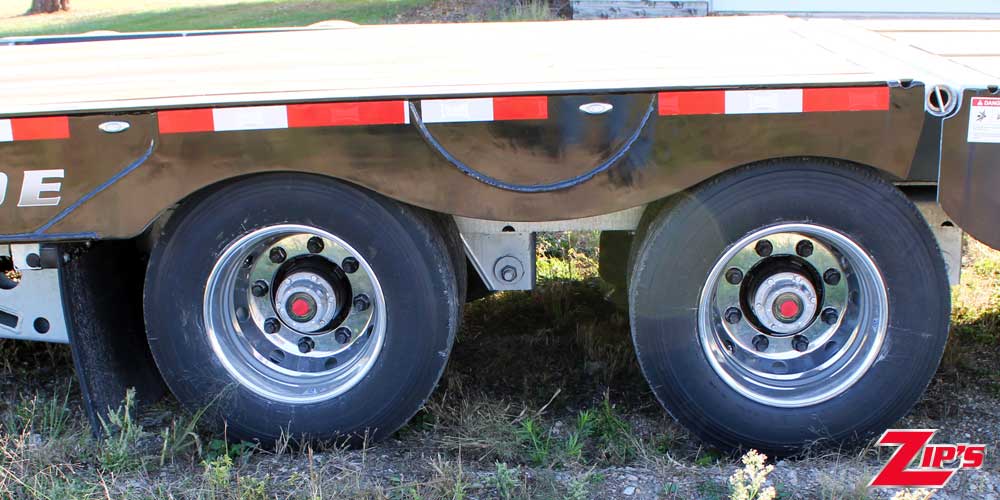

Tires and Wheels:
Tires - 235/75R 17.5 Double Coin
Outside Wheel Type - 17.5 Polished Aluminum Wheel (8 Bolt)
Inside Wheel Type - 17.5 Steel Hub Wheel (8 Bolt)
Paint and Special Options:
Standard Landoll Branded Decals (Affects Lower Deck Only)
Hot Dip Galvanizing
Hot Dip Galvanized Under Carriage Weldment
Hot Dip Galvanized Bumper
Paint over Galvanizing (Side Frame Web Only)
Wet Paint Color - Black
