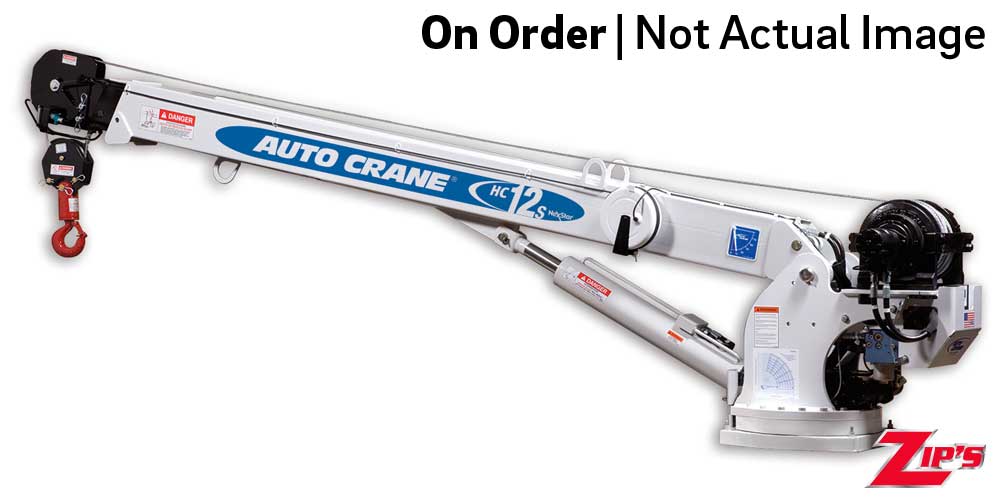

Auto Crane HC-12 Service Crane, w/Titan 60 Service Body

HC-12S

Capacity 12,000 lbs (5,443 kg) at 6 ft (1.83 m)
Rating 60,000 ft-lb (8.30 t-m)
Length 25 ft (7.62 m) fully extended
Weight 1,900 lb (862 kg)
Chassis Class 6 (26,500 GVWR)

Automatic overload protection system
Full, non-continuous power rotation
-370° movement for maximum versatility in lifting
Capable of lifting at 100% in all positions
-12° to +75° boom elevation

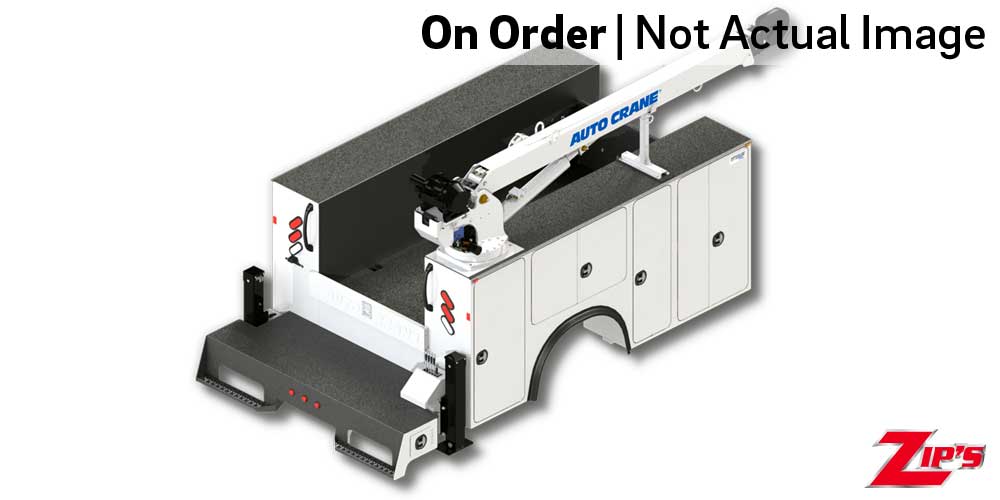

Titan-60 Service Body

Capacity: 60,000 ft lb (8.3 tM)
Storage Space: 60″ Standard:
99.14 cu/ft (2.81 cu/m) for 46″ Tall
104.29 cu/ ft (2.95 cu/m) for 58″ Tall
84″ Standard:
121.8 cu/ft (3.45 cu/m)
84″ Tall:
127.2 cu/ft (3.60 cu/m)
Applicable Service Cranes: HC-9, HC-10
Cargo Floor: 50″ (1.27 m)
One-piece 10 gauge Galvaneal Steel side-pack design

12 gauge (2.8mm) tread plate on tops and cargo area
Integral crane box transfers load directly to outriggers, reinforced up to 60,000 ft lb Internal stainless steel hinges reduce potential corrosion points
Double-paneled galvanneal doors
Gas shock door closers
Rounded door corners
Flush door panels with bulb seal gasket and functional full-length drip rail
Fully undercoated

This Body Is Suitable for an 84" CA  or 120" CA Chassis, Requires a GVWR of 26,000#, 34" Frame Rail Width, and Frame Strength of 14,500#, Maximum Tire Size of 22.5.

Please See our Selection of Chassis Available For Build By Clicking HERE
