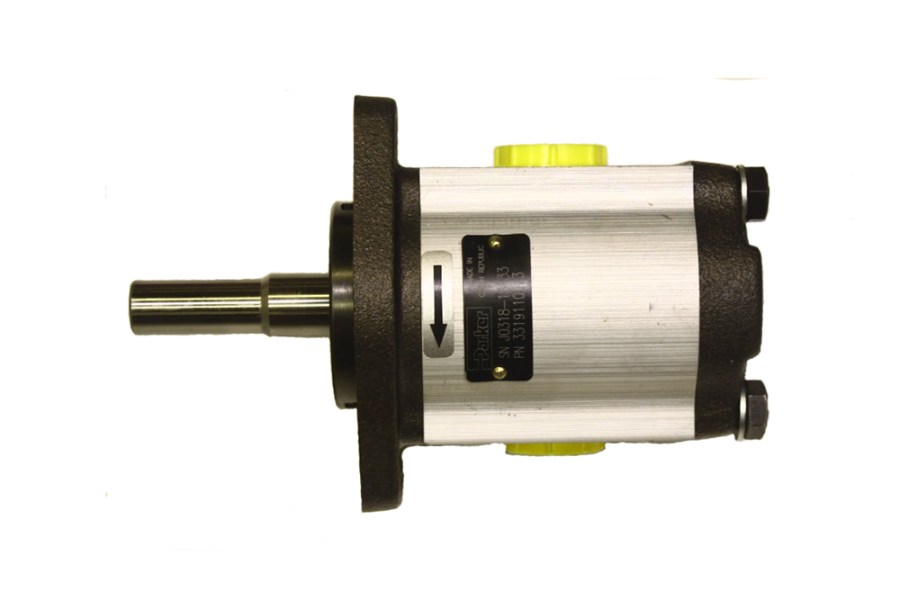

DewEze AA Parker Hydraulic Pump 0.73ci P505 331-9110-313 Side Port S10mb P8mb.
This is the Pump Only
NOTE TO INSTALLER
Clutches will need a short burnishing period to generate the rated
torque. This is a process of cycling the clutch to slightly wear the friction
surfaces. This allows full contact and maximum magnetic attraction required for
rated torque (or more).
BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.
- Model Number: 1950264
- Port Side: Side
- Mount: AA
- CID: 0.73
- Center Section Thicken: 2 9/16"
- Appearance: Aluminum
Where It's Used: 700429, 700510, 700541, 700549, 700558, 700605
