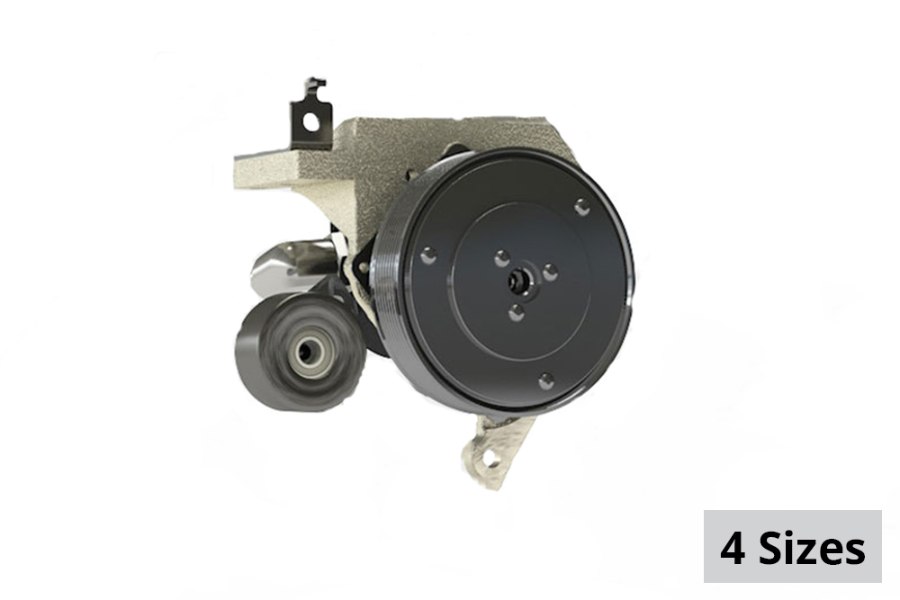

DewEze A Clutch Pump Mt Kit Freightliner M2 2011-2025 Side Port Complete Kit

Pump Size *: 9 GPM

9 GPM

Not available

7 GPM

7 GPM

Not available

12 GPM

12 GPM

Not available

17 GPM

17 GPM

Not available

SKU: 700536-9-12-17

Price: $2,948.99–$3,371.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

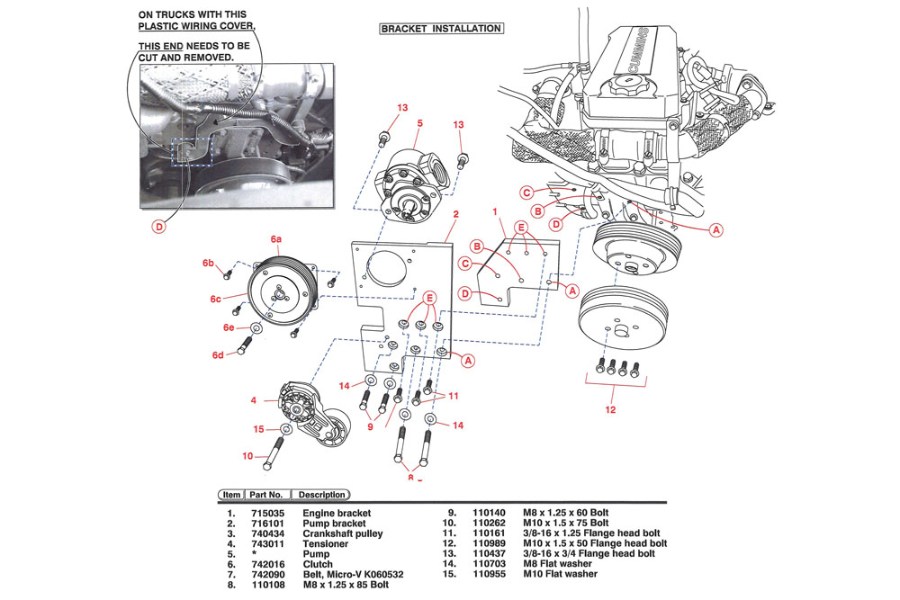

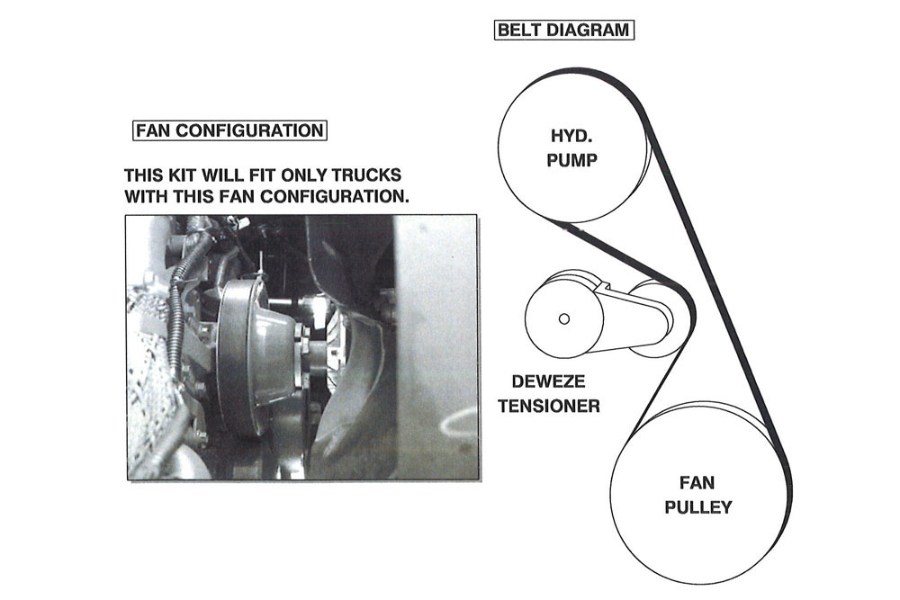

This kit is for Freightliner M2's with Cummins ISB engines that are model years 2011 to 2025. The 7, 9, 12 OR 17 gallon pump side port is the application for a carrier on the truck and there is a specific fan configuration on the truck that this kit works with. This is a Complete Clutch Pump Kit (Basic pump kits include: pump, idler pulley, clutch, serpentine belt, crankshaft pulley, pump mtg. Bracket's as needed.

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Make: Freightliner

Size: Cummins

Fuel: Diesel

OEM Belt: S

Years: 2011 - 2025

Options: Cummins w/ or w/o AC

Pump Type: PH14

Pump Port: Side

Clutch Configuration: Add-On

Belt: 6 Groove Serp

Proposition 65 Warning

Image may not represent actual system, please look at brochure for more accurate details

Available in the following sizes

Item #	Pump Size
700536-7	7 Gallons Per Minute
700536-9	9 Gallons Per Minute
700536-12	12 Gallons Per Minute
700536-17	17 Gallons Per Minute
