Fill-Rite 115V AC 15 GPM Fuel Transfer Pump with Nozzle

SKU: FR610H

Price: $549.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

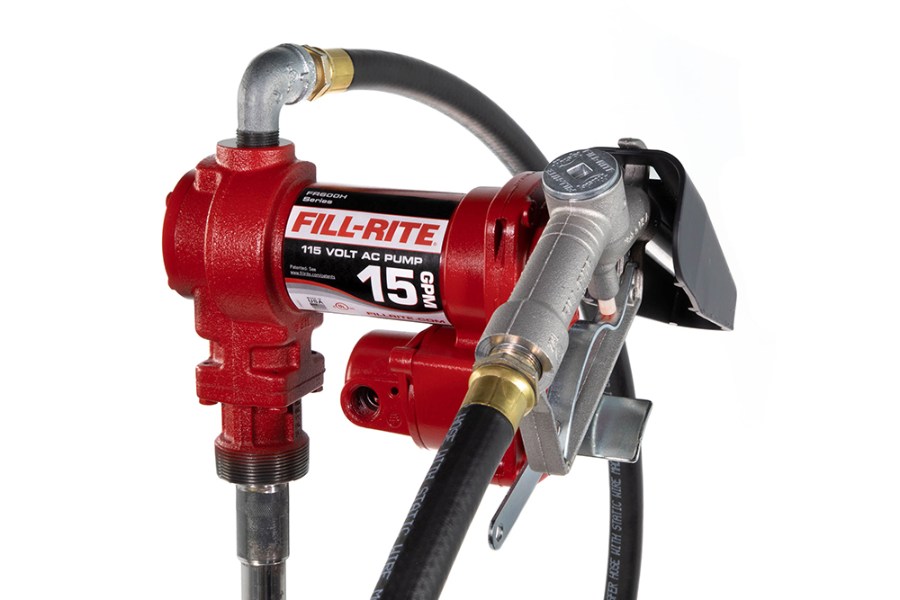

Fill-Rite's 600 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction. The FR610H model is a 115V AC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, manual nozzle, and installation components.

Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
Stationary Tanks – powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Easy Installation – adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Equipment Safeguard – built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
Reliable On/Off Switch – on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Max Flowrate: 15 GPM / 57 LPM
Power Type: 115V AC
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Motor Power (HP): 0.17
Max Current (A): 2 A
Suction Lift (ft.): 8 '
Dry Vacuum (in. Hg): 5
Discharge Head (ft): 37 '
Strainer Mesh Size (Micron): 20x20
Max Discharge Pressure (PSI): 16 PSI

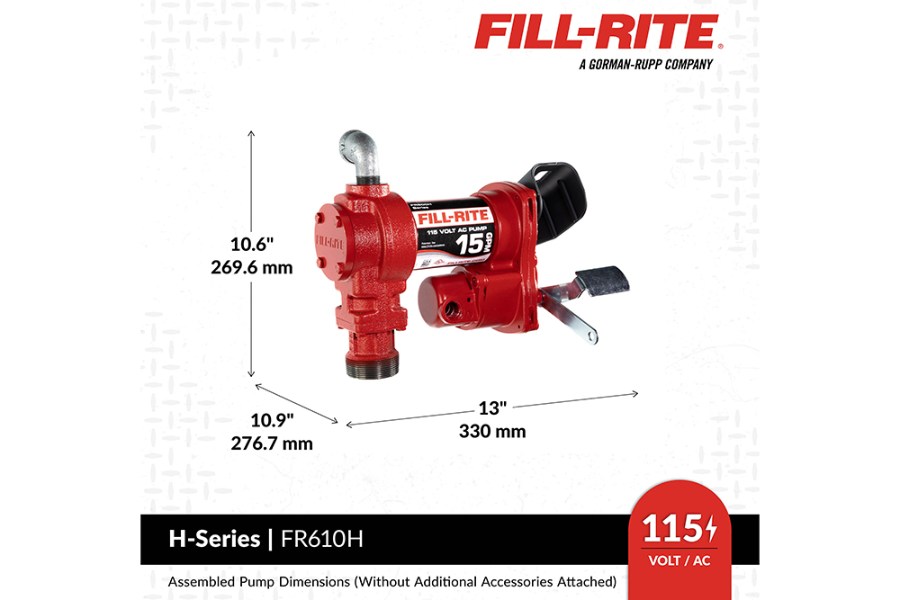

Assembled Product Height x Width x Depth (in.): 10.5 x 12.8 x 10.8
Assembled Product Weight (lbs.): 26.9
Package Height x Width x Depth (in.): 10.63 x 15.44 x 18.31
Gross Weight (lbs.): 30.000 lbs
Cable Connection: Bare Leads
Suction Pipe:20" – 34 ½" Steel Telescoping Suction Pipe
Discharge Hose: ¾" X 12' UL Listed Hose with Static Ground Wire
Nozzle: ¾" Cast Aluminum Manual Nozzle
