Fill-Rite 12V DC 13 GPM Fuel Transfer Pump with Nozzle

SKU: SD1202H

Price: $419.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Fill-Rite's 1200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.

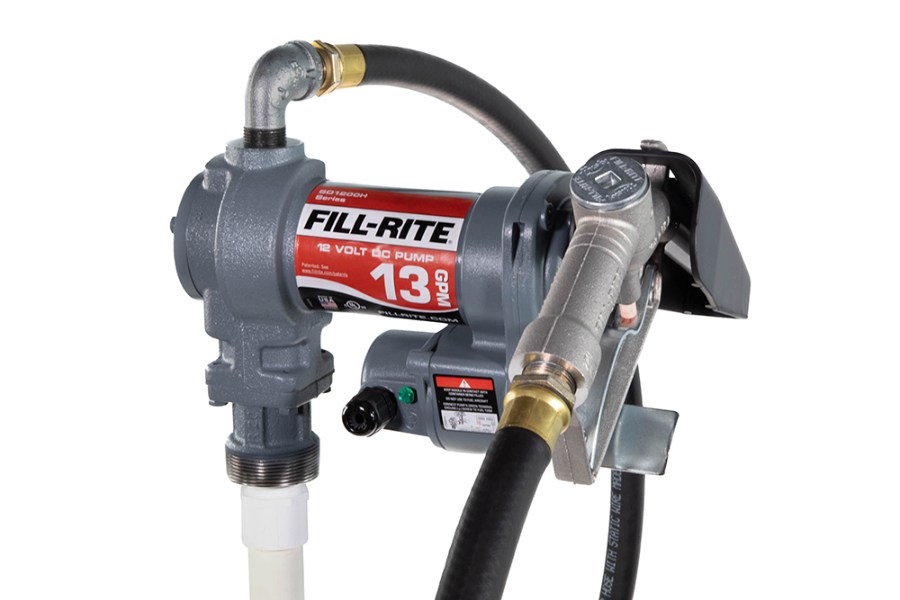

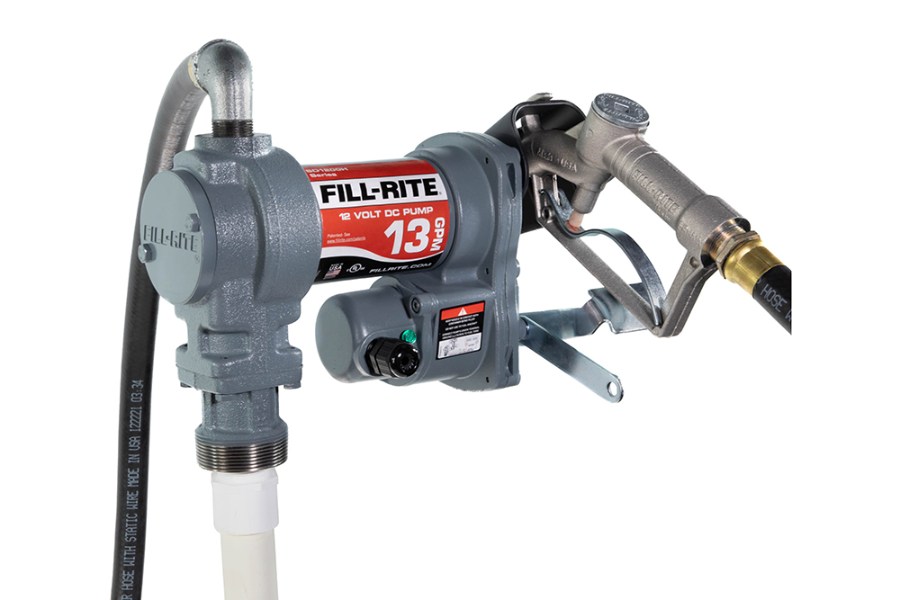

The SD1202H model is a 12V DC, 13 GPM, economy fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
Max Flowrate: 13 GPM / 49 LPM
Power Type: 12V DC
Compatible Fluids: Diesel, Gasoline, Mineral Spirits, Biodiesel
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Power Source: Electrical
Motor Power (HP): 0.25
Max Current (A): 20 A
Thermal Protection Switch: Yes
Self Priming: Yes
Suction Lift (ft.): 8 '
Dry Vacuum (in. Hg): 5
Discharge Head (ft): 37 '
Strainer Mesh Size (Micron): 20x20
Max Operating Pressure (PSI): 16
Cable Length (ft): 15
Cable Gauge (GA): 12
CableConnection: Bare Leads
Nozzle: ¾” Cast Aluminum Manual Nozzle

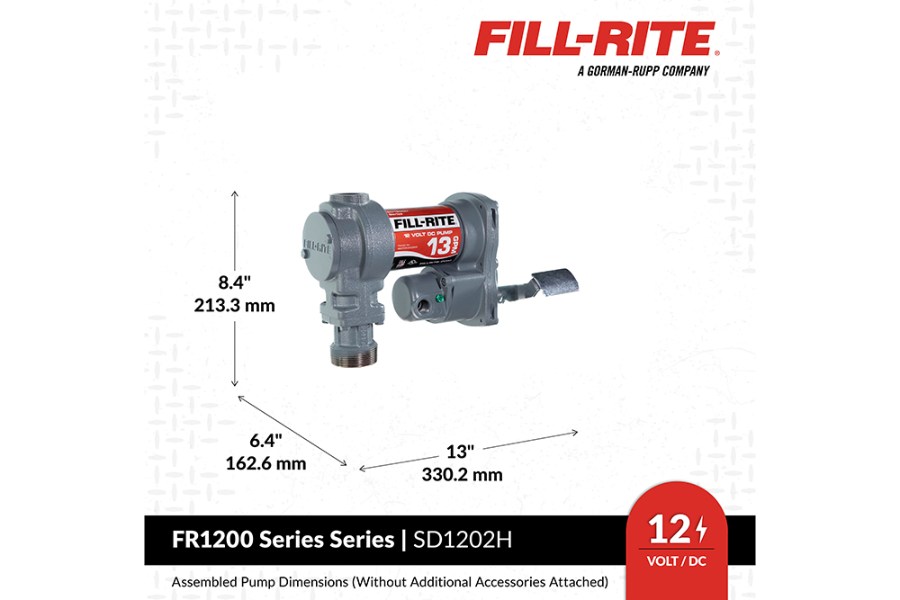

Assembled Product Height x Width x Depth (in.): 8.5 x 13 x 6.5
Assembled Product Weight (lbs.): 26.9
Package Height x Width x Depth (in.): 10.63 x 15.44 x 18.31
Gross Weight (lbs.): 32.000 lbs
