Fill-Rite 2-35 GPM 4-Digit Digital Fuel Transfer Meter

SKU: TT10AN

Price: $224.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

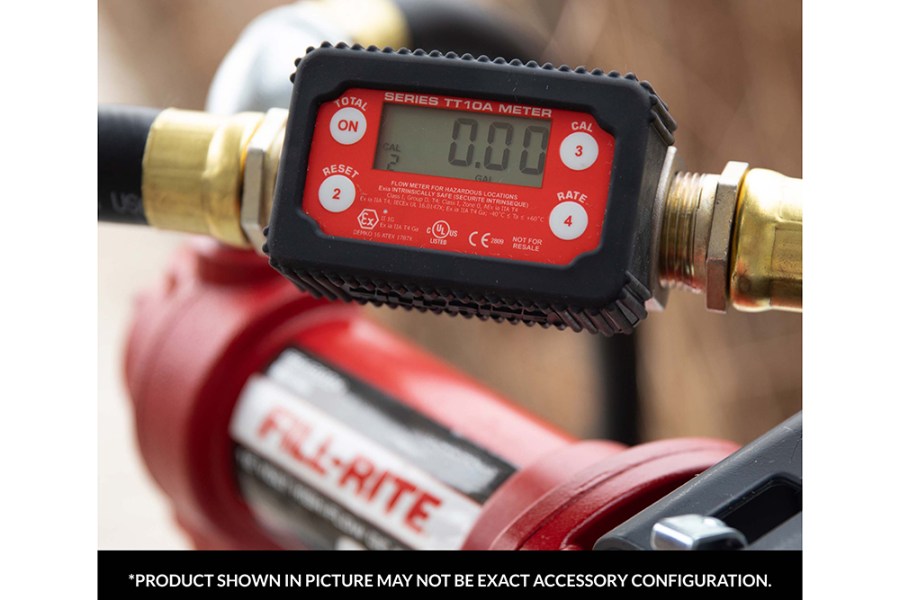

Fill-Rite's TT10 Series of digital fuel transfer meters are extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump.

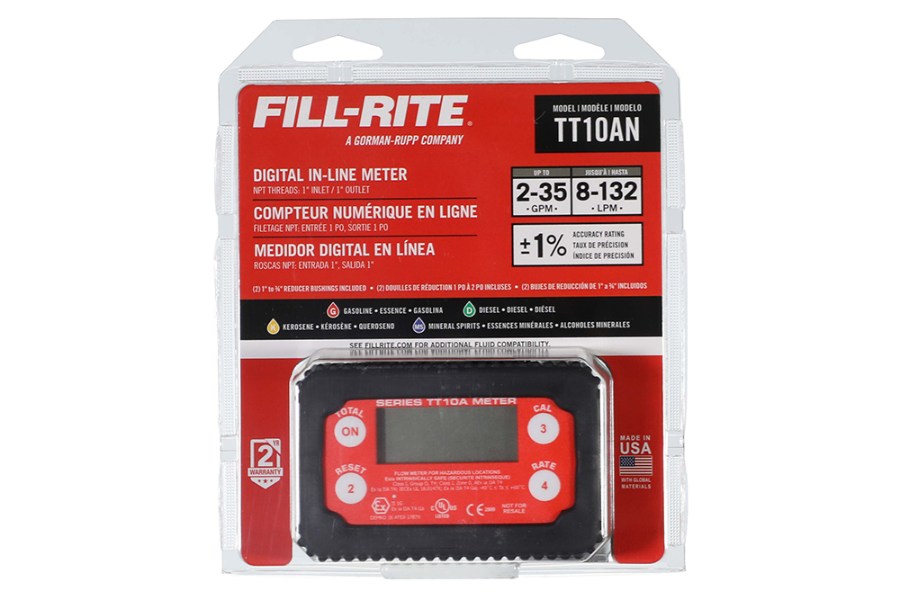

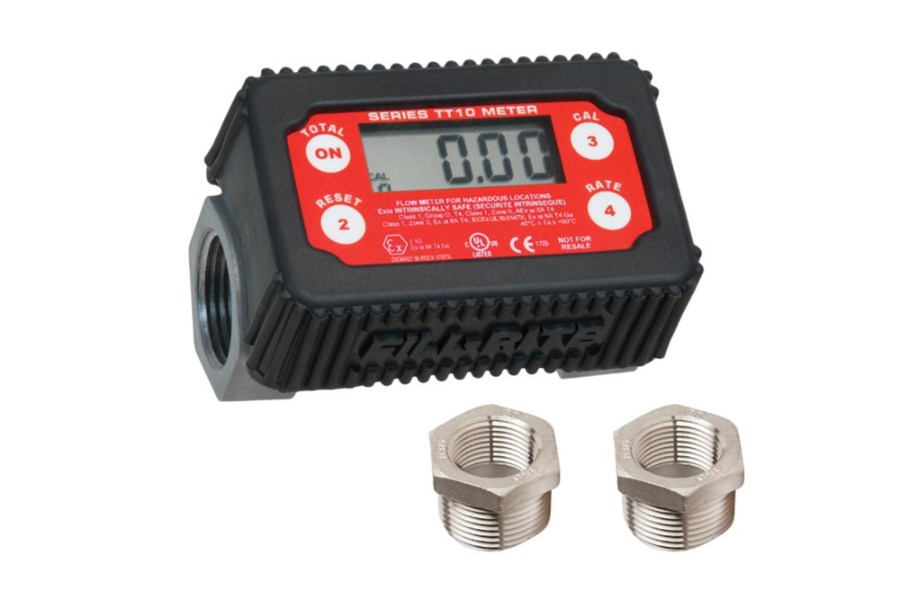

The TT10AN is a 4-digit digital fuel transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) 0.75" reducer bushings.

Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible

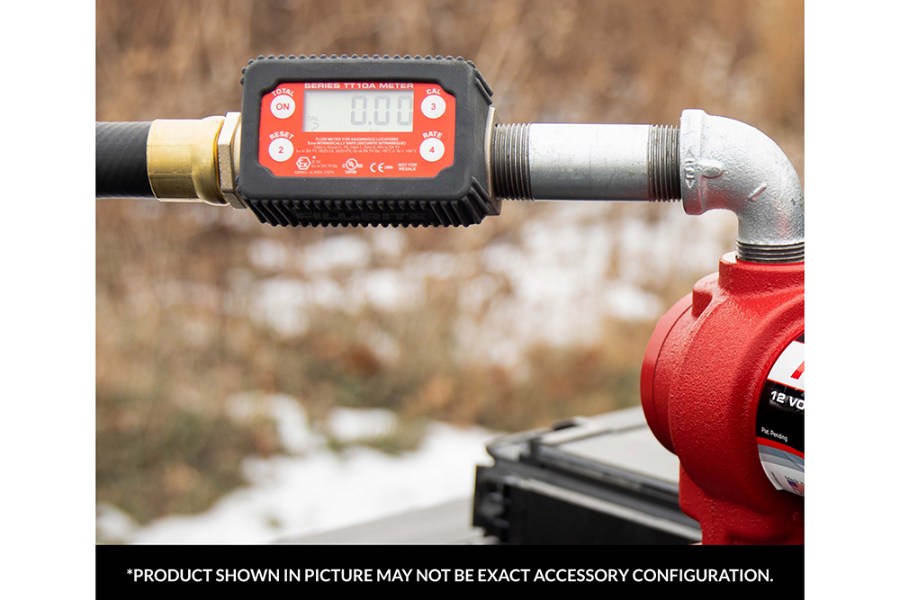

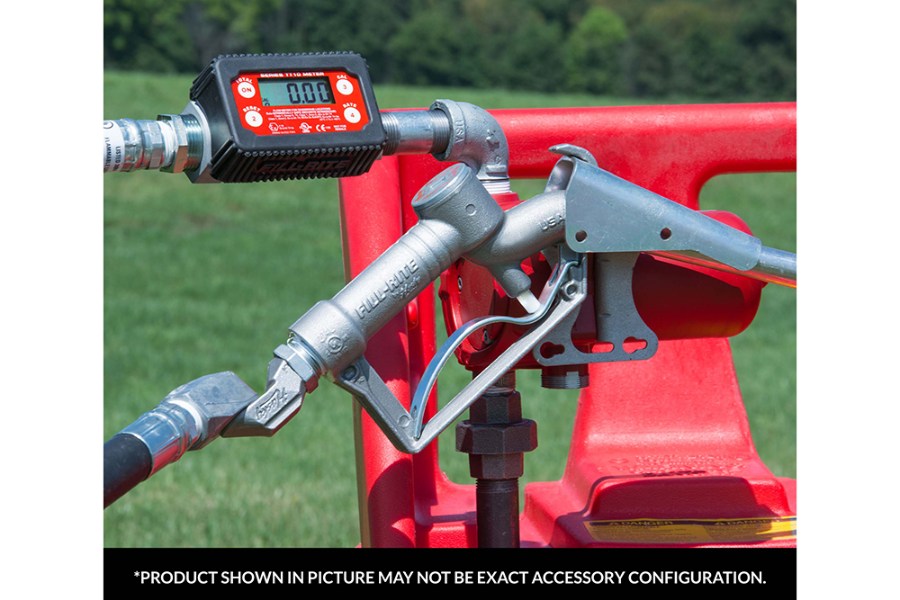

Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
Max Flowrate: 35
Flowrate Range: 2-35 GPM/ 8-132 LPM
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 1 " / Female / NPT
Operating Temperature Range (°F): -40 - 140°F / -40 - 60°C
Max Operating Pressure (PSI): 50
Accuracy (+/- %): 1 %
Repeatability (+/- %): 0.3 %
Display Type: LCD
Display Digits: 4
Power Source: Electrical
Totalizer: Yes
Pulse Output: No

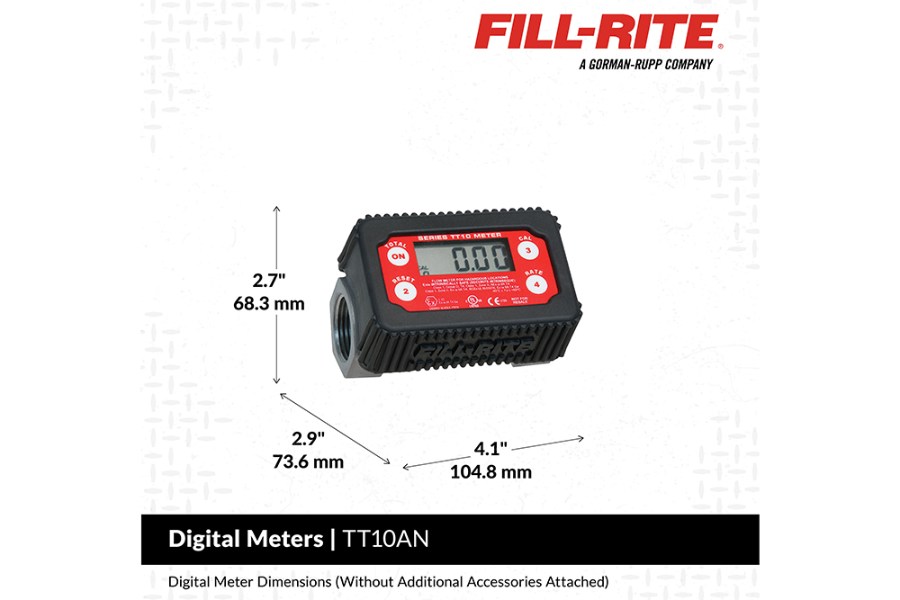

Assembled Product Height x Width x Depth (in.): 2.5 x 4 x 3
Assembled Product Weight (lbs.): 1.3
Package Height x Width x Depth (in.): 7.4 x 6.2 x 3
Gross Weight (lbs.): 1.600 lbs
