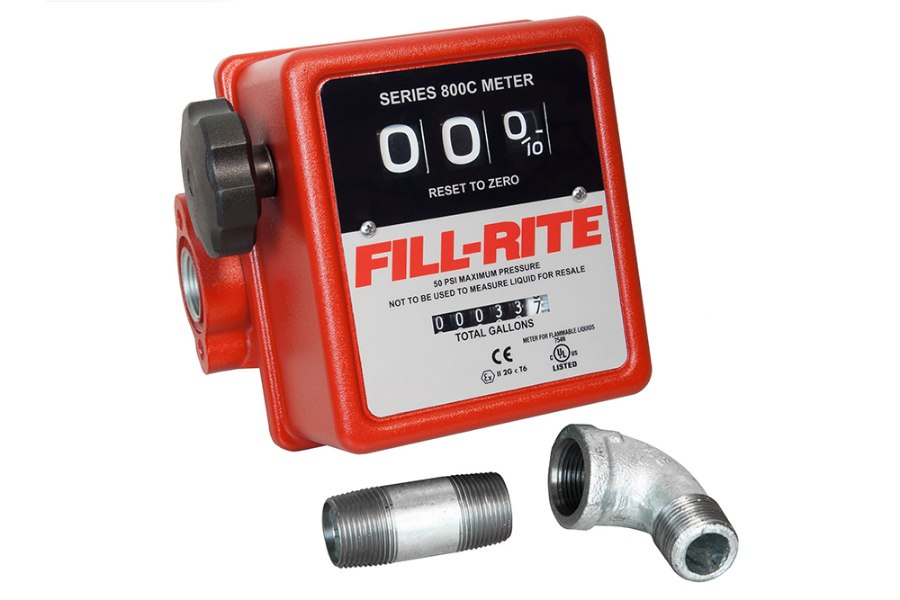

Fill-Rite 5-20 GPM 3-Digit Mechanical Fuel Transfer Meter

0 reviews

Leave a Review

Picture of Fill-Rite 5-20 GPM 3-Digit Mechanical Fuel Transfer Meter

SKU: FR808

Price: $264.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Fill-Rite’s 800 Series of mechanical fuel transfer meters are ideal for low-volume applications, registering up to 99 gallons per batch

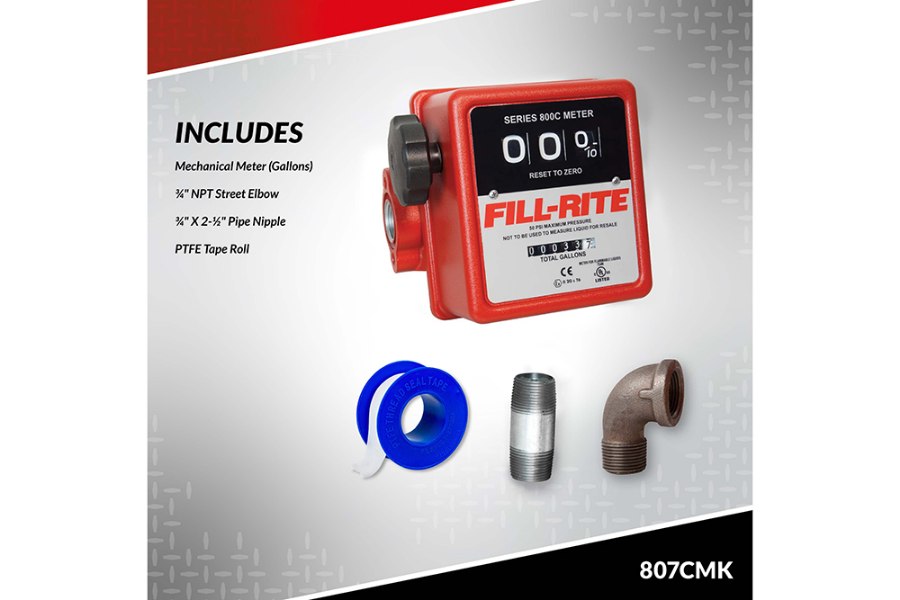

The 807CMK is a 3-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 5-20 gallons per minute at +/- 1% accuracy. This model includes additional installation components.

Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Extreme Accuracy — measures fuel within +/- 1% accuracy, ensuring your record-keeping is precise as possible
Low-Volume Applications – 3-digit counter registers flow rates between 5-20 GPM and up to 99.9 gallons per batch, perfect for equipment with small fuel tanks
Lifetime Tracking — 5-digit non-resettable counter tracks total volume transferred over lifetime of meter
Fluid Compatibility — designed for daily use with diesel, gasoline, kerosene, mineral spirits, heptane, hexane
Flowrate Range (GPM): 5-20 GPM
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Hexane
Inlet Size / Connection / Thread: 0.75 " / Female / NPT
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C
Max Operating Pressure (PSI): 50
Accuracy (+/- %): 1 %
Repeatability (+/- %): 0.38 %
Display Type: Mechanical
Display Digits: 3
Power Source: Mechnical
Totalizer: Yes
Pulse Output: No

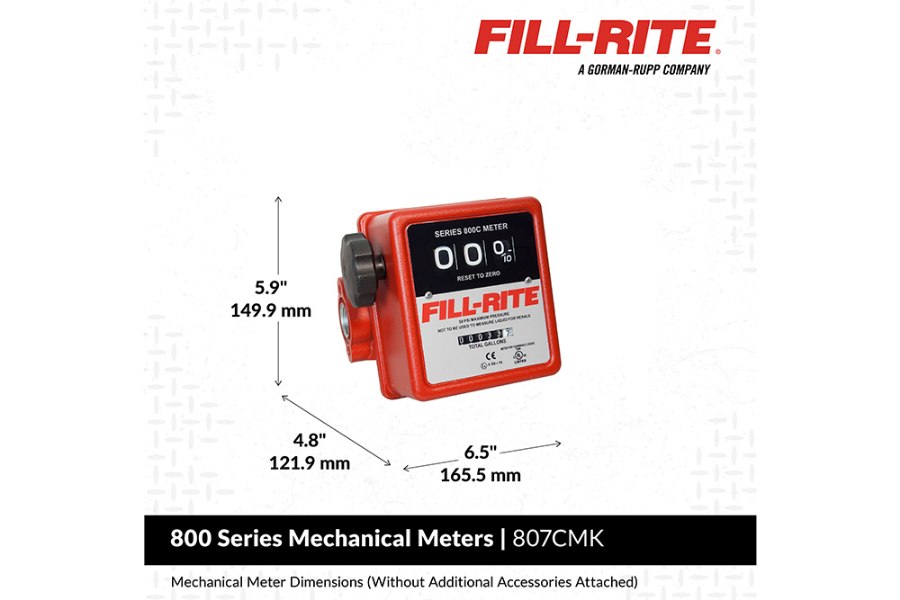

Assembled Product Height x Width x Depth (in.): 5.9 x 6.9 x 4.9
Assembled Product Weight (lbs.): 4.9
Package Height x Width x Depth (in.): 7.38 x 7.25 x 10.5
Gross Weight (lbs.): 5.600 lbs
