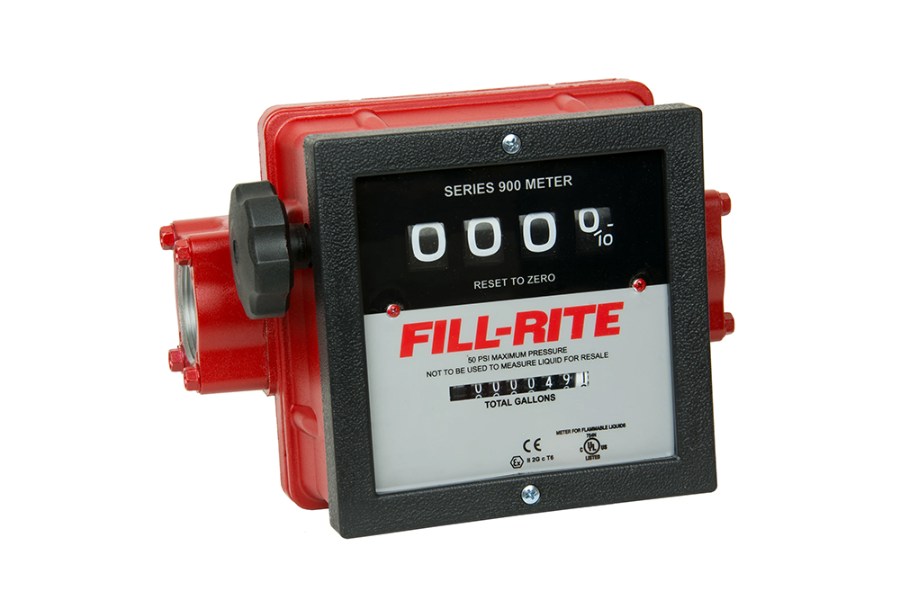

The 901C is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 2% accuracy. This model does not include additional installation components.
Fill-Rite’s 900 Series of mechanical fuel transfer meters are ideal for high-volume applications, registering up to 999 gallons per batch
- Versatile Technology – designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
- Cast-Aluminum Construction – built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
- Extreme Accuracy – measures fuel within +/- 2% accuracy, ensuring your record-keeping is precise as possible
- Low-Volume Applications – 4-digit counter registers flow rates between 6-40 GPM and up to 999.9 gallons per batch, perfect for heavy equipment with large fuel tanks
- Lifetime Tracking – 7-digit non-resettable counter tracks total volume transferred over lifetime of meter
- Flowrate Range (GPM): 6-40 GPM
- Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Hexane
- Inlet Size / Connection / Thread: 1.5 " / Female / NPT
- Outlet Size / Connection / Thread: 1.5 " / Female / NPT
- Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C
- Max Operating Pressure (PSI): 50
- Accuracy (+/- %): 2 %
- Repeatability (+/- %): 0.38 %
- Display Type: Mechanical
- Display Digits: 4
- Power Source: Mechnical
- Totalizer: Yes
- Pulse Output: No

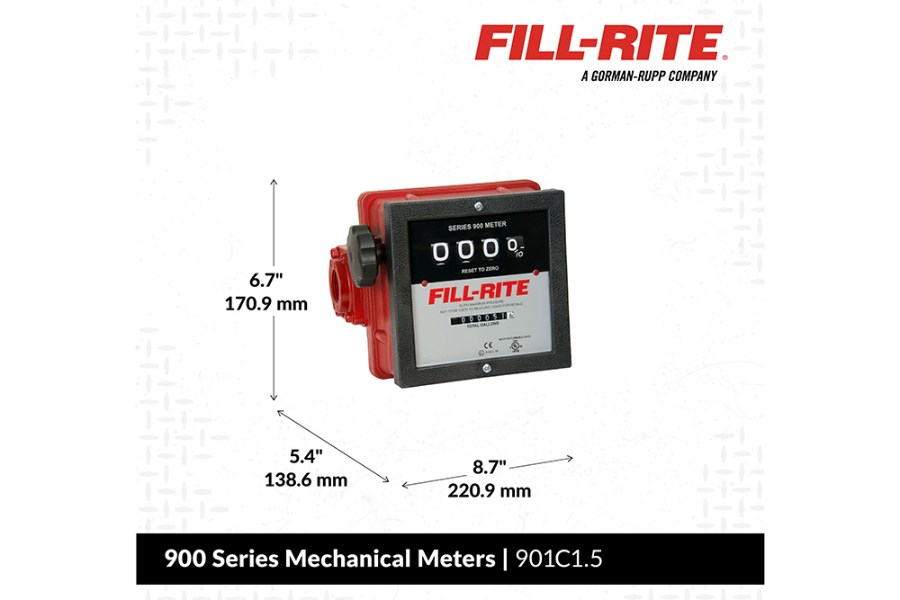

- Assembled Product Height x Width x Depth (in.): 6.7 x 9.2 x 5.5
- Assembled Product Weight (lbs.): 7.4
- Package Height x Width x Depth (in.): 7.38 x 7.25 x 10.5
- Gross Weight (lbs.): 8.100 lbs
