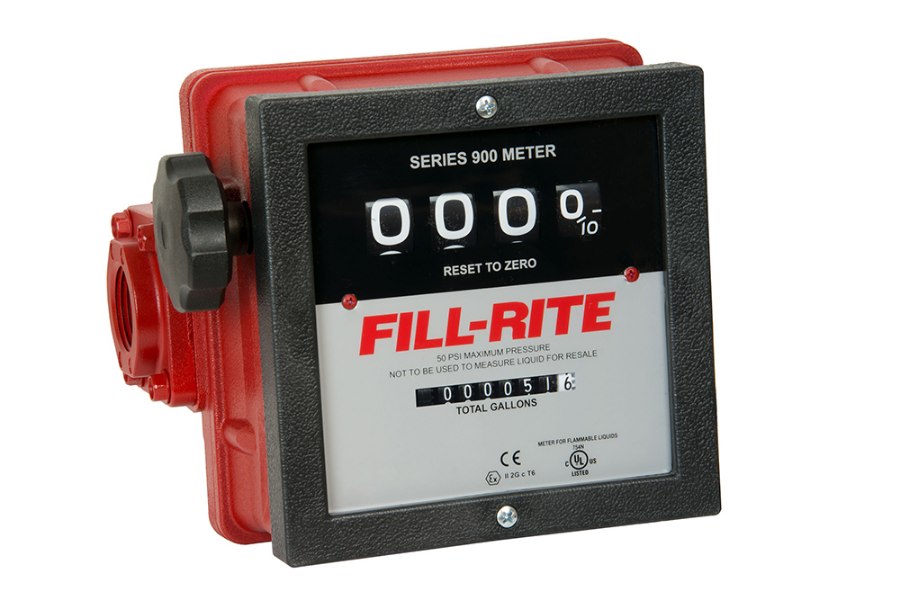

Fill-Rite 6-40 GPM 4-Digit Mechanical Fuel Transfer Meter

Price: $339.99

SKU: FR809

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Fill-Rite’s 900 Series of mechanical fuel transfer meters are ideal for high-volume applications, registering up to 999 gallons per batch. The 901C is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 2% accuracy. This model does not include additional installation components.

Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Extreme Accuracy — measures fuel within +/- 2% accuracy, ensuring your record-keeping is precise as possible
High-Volume Applications – 4-digit counter registers flow rates between 6-40 GPM and up to 999.9 gallons per batch, perfect for heavy equipment with large fuel tanks
Lifetime Tracking — 7-digit non-resettable counter tracks total volume transferred over lifetime of meter
Fluid Compatibility — designed for daily use with diesel, gasoline, kerosene, mineral Spirits, heptane, hexane
Flowrate Range (GPM): 6-40 GPM
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Hexane
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 1 " / Female / NPT
Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C
Max Operating Pressure (PSI): 50
Accuracy (+/- %): 2 %
Repeatability (+/- %): 0.38 %
Display Type: Mechanical
Display Digits: 4
Power Source: Mechnical
Totalizer: Yes
Pulse Output: No

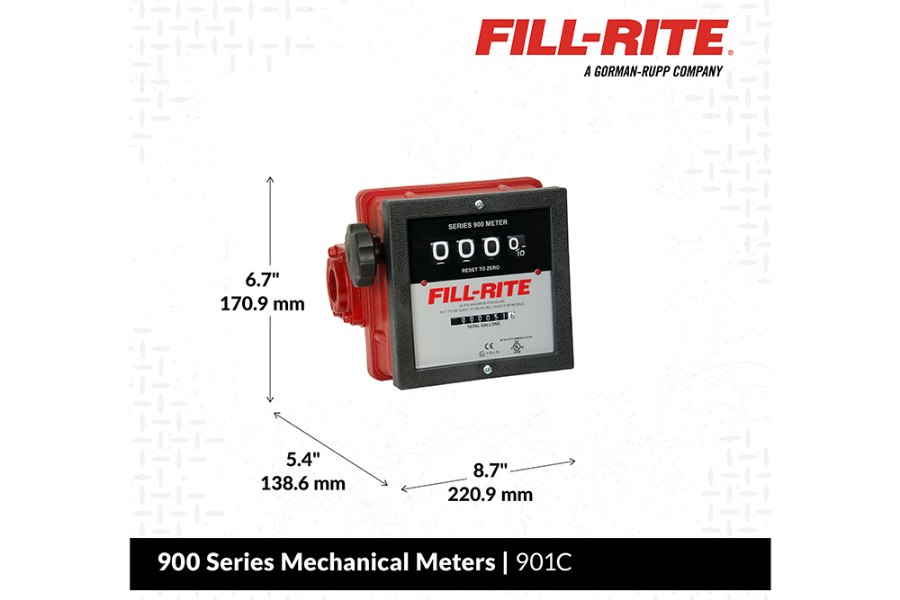

Assembled Product Height x Width x Depth (in.): 6.7 x 8.7 x 5.5
Assembled Product Weight (lbs.): 7.5
Package Height x Width x Depth (in.): 7.38 x 7.25 x 10.5
Gross Weight (lbs.): 8.100 lbs
