Green Pin Bow Shackle with Safety Bolt and Fixed Nut

0 reviews

Leave a Review

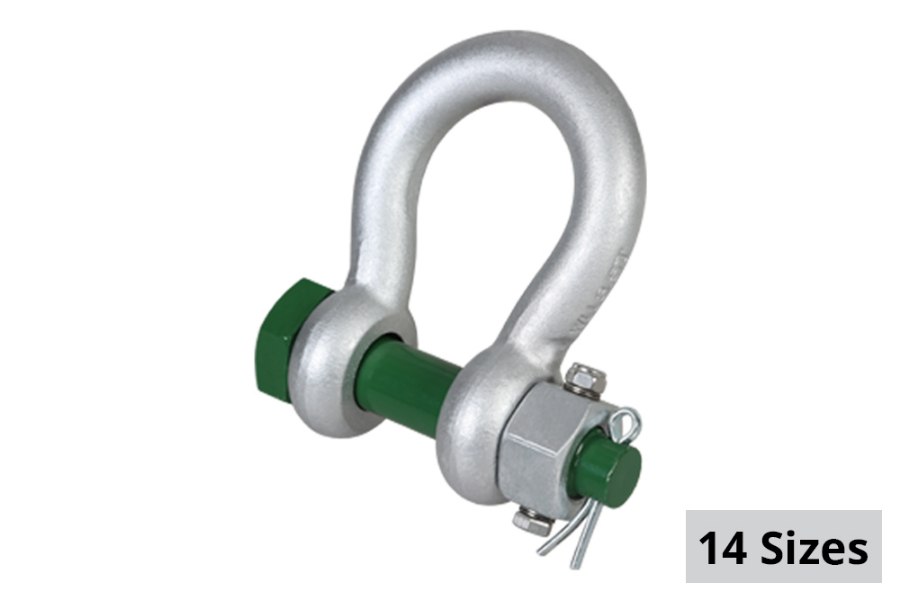

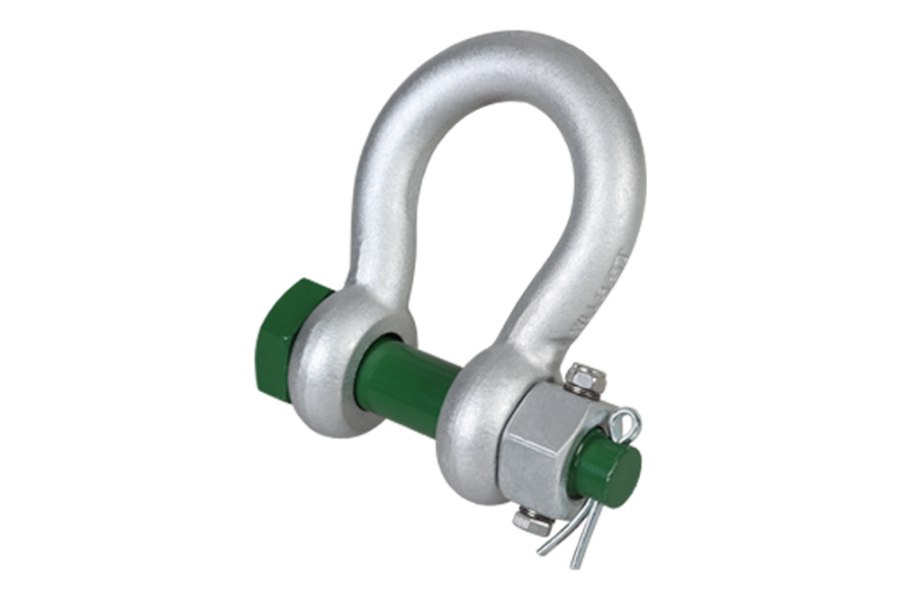

Picture of Green Pin Bow Shackle with Safety Bolt and Fixed Nut

SKU: GP-G-4143FN

Price: $24.99–$1,283.99

Qty:

Bulk Discounts Available

Qty	Price	Savings
4	$24.37	$2.50
8	$23.74	$10.00
12	$22.49	$29.99

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The Green Pin Bow Shackle FN is a bow shackle with a safety bolt and a fixed nut. The Green Pin Bow Shackle FN offers a triple safety due to the split pin, safety bolt and fixed nut. The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock washers. When the load is dynamic or can be exposed to extreme vibrations the GreenPin Bow Shackle FN is thus a top choice. Of course, the Green Pin Bow Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The shackle is suitable for both one-leg and multi-leg systems. It is available in a range with a working load limit from 2 up to 85 ton.

Triple safety (split pin, safety bolt, fixed nut)
Top choice when the load is dynamic or exposed to extreme vibrations
Conforms to wide range of certifications (e.g. DNV GL)
Suitable for both one-leg and multi-leg systems
Product Code: G-4143
Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety Factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp Range: -40 Celcius up to +200 Celcius

Available in the following sizes

Item#	Size	WLL
GPGHMB13FN	1/2"	2 Ton
GPGHMB50FN	2"	35 Ton
GPGHMB16FN	5/8"	3.25 Ton
GPGHMB19FN	3/4"	4.75 Ton
GPGHMB22FN	7/8"	6.5 Ton
GPGHMB25FN	1"	8.5 Ton
GPGHMB28FN	1-1/8"	9.5 Ton
GPGHMB32FN	1-1/4"	12 Ton
GPGHMB35FN	1-3/8"	13.5 Ton
GPGHMB38FN	1-1/2"	17 Ton
GPGHMB45FN	1-3/4"	25 Ton
GPGHMB57FN	2-1/4"	42.5 Ton
GPGHMB65FN	2-1/2"	55 Ton
GPGHMB75FN	3"	85 Ton

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GPGHMB65FN	GPGHMB65FN	2 1/2" - 55 Ton WLL
GPGHMB19FN	GPGHMB19FN	3/4" - 4.75 Ton WLL
GPGHMB13FN	GPGHMB13FN	1/2" - 2 Ton WLL
GPGHMB57FN	GPGHMB57FN	2 1/4" - 42.5 Ton WLL
GPGHMB35FN	GPGHMB35FN	1 3/8" - 13.5 Ton WLL
GPGHMB16FN	GPGHMB16FN	5/8" - 3.25 Ton WLL
GPGHMB32FN	GPGHMB32FN	1 1/4" - 12 Ton WLL
GPGHMB22FN	GPGHMB22FN	7/8" - 6.5 Ton WLL
GPGHMB45FN	GPGHMB45FN	1 3/4" - 25 Ton WLL
GPGHMB25FN	GPGHMB25FN	1" - 8.5 Ton WLL
GPGHMB28FN	GPGHMB28FN	1 .1/8" - 9.5 Ton WLL
GPGHMB75FN	GPGHMB75FN	3" - 85 Ton WLL
GPGHMB38FN	GPGHMB38FN	1 1/2" - 17 Ton WLL
GPGHMB50FN	GPGHMB50FN	2" - 35 Ton WLL
