Green Pin Bow Shackle with Screw Collar Pin

0 reviews

Leave a Review

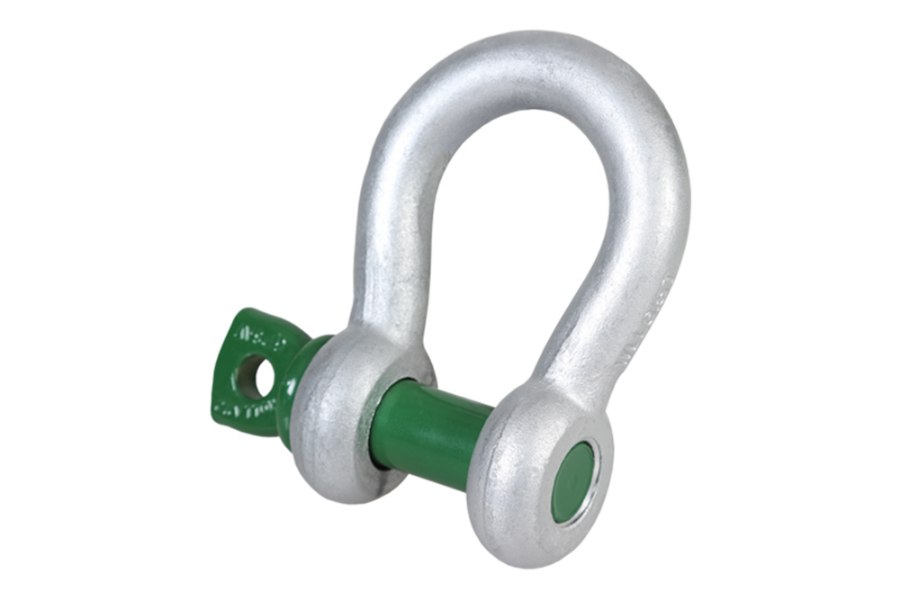

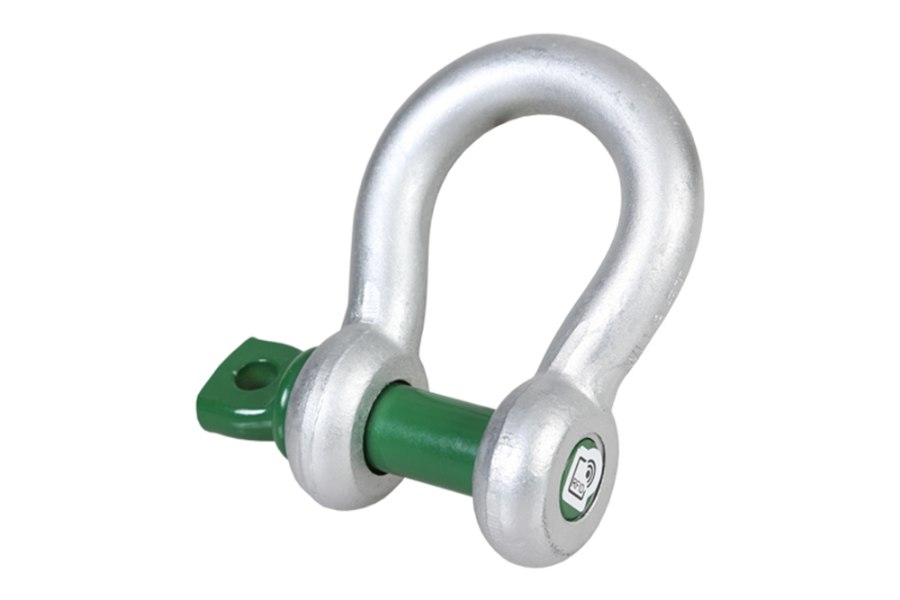

Picture of Green Pin Bow Shackle with Screw Collar Pin

SKU: GP-G-4161

Price: $5.99–$749.99

Qty:

Bulk Discounts Available

Qty	Price	Savings
4	$5.84	$0.60
8	$5.69	$2.40
12	$5.39	$7.19

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The Green Pin Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.

Screw Pin for Quick Assembly
Galvanization assures long term durability
Suitable for both one-leg and multi-leg systems
Conforms to wide range of certifications
Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety Factor: MBL equals 6 x WLL
Finish: hot dipped galvanized

Temp Range: 40°C up to +200°C

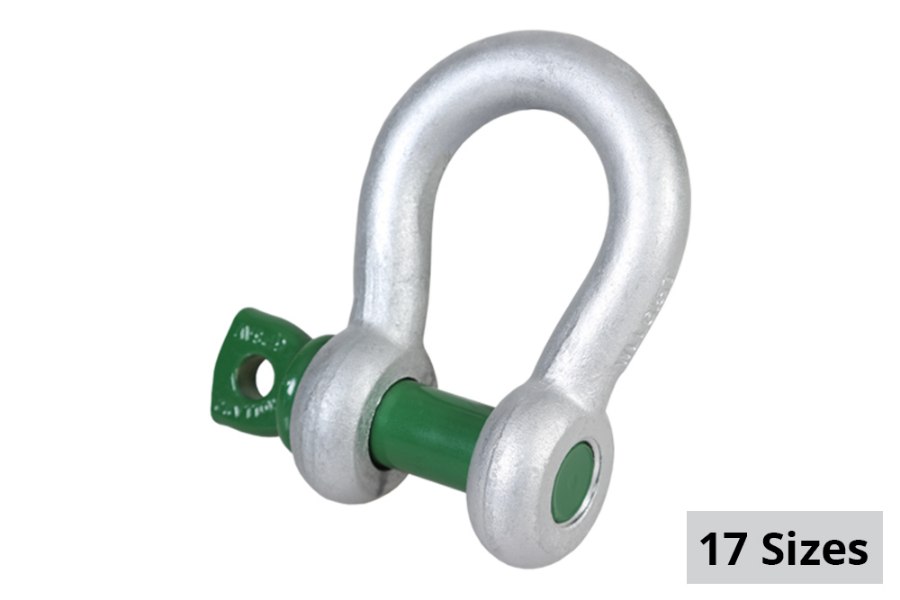

Available in the following sizes

Item#	Size	WLL
GPGHBB10	3/8"	1 Ton
GPGHBB13	1/2"	2 Ton
GPGHBB50	2"	35 Ton
GPGHBB16	5/8"	3.25 Ton
GPGHBB19	3/4"	4.75 Ton
GPGHBB05	3/16"	.33 Ton
GPGHBB06	1/4"	.5 Ton
PGHBB08	5/16"	.75 Ton
GPGHBB11	7/16"	1.5 Ton
GPGHBB28	1-1/8"	9.5 Ton
GPGHBB22	7/8"	6.5 Ton
GPGHBB25	1"	8.5 Ton
GPGHBB32	1-1/4"	12 Ton
GPGHBB35	1-3/8"	13.5 Ton
GPGHBB38	1-1/2"	17 Ton
GPGHBB45	1-3/4"	25 Ton
GPGHBB65	2-1/2"	55 Ton

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GPGHBB19	GPGHBB19	3/4" - 4.75 Ton WLL
GPGHBB11	GPGHBB11	7/16" - 1.5 Ton WLL
GPGHBB65	GPGHBB65	2 1/2" - 55 Ton WLL
GPGHBB32	GPGHBB32	1 1/4" - 12 Ton WLL
GPGHBB13	GPGHBB13	1/2" - 2 Ton WLL
GPGHBB08	GPGHBB08	5/16" - .75 Ton WLL
GPGHBB06	GPGHBB06	1/4" - .5 Ton WLL
GPGHBB05	GPGHBB05	3/16" - .33 Ton WLL
GPGHBB16	GPGHBB16	5/8" - 3.25 Ton WLL
GPGHBB22	GPGHBB22	7/8" - 6.5 Ton WLL
GPGHBB28	GPGHBB28	1 1/8" - 9.5 Ton WLL
GPGHBB10	GPGHBB10	3/8" - 1 Ton WLL
GPGHBB38	GPGHBB38	1 1/2" - 17 Ton WLL
GPGHBB25	GPGHBB25	1" - 8.5 Ton WLL
GPGHBB35	GPGHBB35	1 3/8" - 13.5 Ton WLL
GPGHBB45	GPGHBB45	1 3/4" - 25 Ton WLL
GPGHBB50	GPGHBB50	2" - 35 Ton WLL
