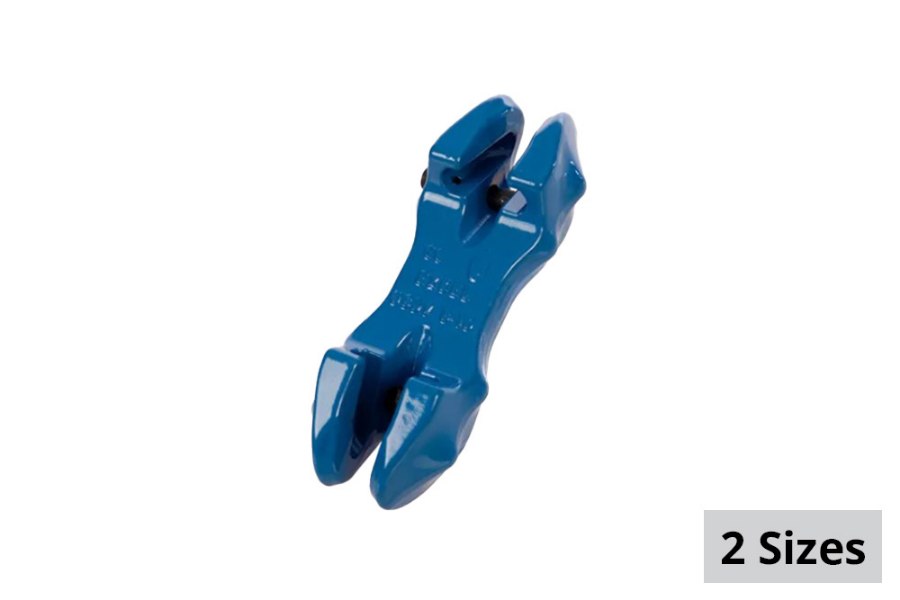

Green Pin G100 Shortening Clutch with Double Lock

Be the first to review this product

Choose Size *: 7/32" - 1.4T

7/32" - 1.4T

Not available

5/16" - 2.6T

5/16" - 2.6T

Not available

SKU: GP-SHORTCLUTCH-DL

Price: $70.99–$80.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The Green Pin® Shortening Clutch with Double Lock is a grade 10 shortening clutch with double locking pin. The shortening clutch is an essential part of chain slings, used to shorten the length of the chain leg and prevents instability of the load. The clutch compared to the shortening hook makes a straight pull possible. This clutch is a removeable clutch which can be added occasionally to the chain leg and then be removed fast to get back the initial length. This shortening clutch is available with a double locking system, designed to prevent accidental disengagement of the chain. The Green Pin® Shortening Clutch with Double Lock is available in a range to suit 6 mm up to 13 mm grade 10 chain.

Product Code: UGDV
Material: Grade 100 Alloy Steel - Quenched and Tempered
Safety Factor: 4:1
Finish: Blue Paint
Temperature Range: -40°C up to +200°C

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GPUGDV6	GPUGDV6	7/32" - 1.4T
GPUGDV8	GPUGDV8	5/16" - 2.6T
