Green Pin Super Bow Shackle with Safety Bolt

0 reviews

Leave a Review

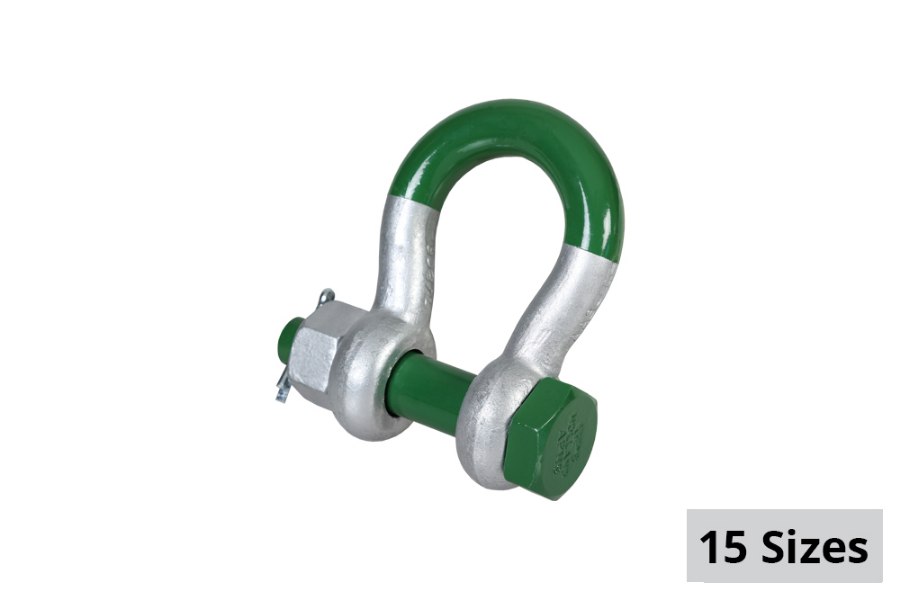

Picture of Green Pin Super Bow Shackle with Safety Bolt

SKU: GP-G-5263

Price: $52.99–$4,055.99

Qty:

Bulk Discounts Available

Qty	Price	Savings
4	$51.67	$5.30
8	$50.34	$21.20
12	$47.69	$63.59

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The Green Pin Super Bow Shackle BN is a grade 8 bow shackle with a safety bolt. Handling of the Green Pin Super Bow Shackle BN is easier due to the smaller size and weight (with an equal working load limit when compared to non-Super products). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread. The Green Pin Super Bow Shackle BN is available in a range with a working load limit from 3.3 up to 175t (note: sizes 150t and 175t have a round headed bolt).

Easier handling due to smaller size and weight (with equal WLL)
Double safety (cotter pin & safety bolt)
Galvanization assures long-term durability
Conforms to wide range of certifications (e.g. DNV GL)
Product Code: G-5263
Material: bow and pin alloy steel, Grade 8, quenched and tempered
Safety Factor: MBL equals 5 x WLL
Finish: hot dipped galvanized (175 ton shackle is painted)
Temp Range: -20 Celcius up to +200 Celcius
Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B

Note: Shackles with WLL 150 t and 175 t have a round headed bolt

Available in the following sizes

Item #	Size	WLL
GP-SUGHMB28	1-1/8"	15 Ton
GP-HDSUHM0175	4-1/8"	175 Ton
GP-SUGHMB32	1-1/4"	18 Ton
GP-SUGHMB35	1-3/8"	21 Ton
GP-SUGHMB38	1-1/2"	30 Ton
GP-SUGHMB13	1/2"	3.3 Ton
GP-SUGHMB70	2-1/2"	85 Ton
GP-SUGHMB16	5/8"	5 Ton
GP-SUGHMB45	1-3/4"	40 Ton
GP-HDSUHM0150	3-3/4"	150 Ton
GP-SUGHMB22	7/8"	9.5 Ton
GP-SUGHMB25	1"	12.5 Ton
GP-SUGHMB57	2"	55 Ton
GP-SUGHMB83	3"	120 Ton

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GP-SUGHMB28	SUGHMB28	1 1/8" - 15 TON WLL
GP-SUGHMB45	SUGHMB45	1 3/4" - 40 TON WLL
GP-SUGHMB19	SUGHMB19	3/4" - 7 TON WLL
GP-SUGHMB25	SUGHMB25	1" - 12.5 TON WLL
GP-HDSUHM0150	HDSUHM0150	3 3/4" - 150 TON WLL
GP-SUGHMB38	SUGHMB38	1 1/2" - 30 TON WLL
GP-HDSUHM0175	HDSUHM0175	4 1/8" - 175 TON WLL
GP-SUGHMB13	SUGHMB13	1/2" - 3.3 TON WLL
GP-SUGHMB35	SUGHMB35	1 3/8" - 21 TON WLL
GP-SUGHMB22	SUGHMB22	7/8" - 9.5 TON WLL
GP-SUGHMB83	SUGHMB83	3" - 120 TON WLL
GP-SUGHMB32	SUGHMB32	1 1/4" - 18 TON WLL
GP-SUGHMB70	SUGHMB70	2 1/2" - 85 TON WLL
GP-SUGHMB16	SUGHMB16	5/8" - 5 TON WLL
GP-SUGHMB57	SUGHMB57	2" - 55 TON WLL
