Gunnebo Classic Berglok Chain Coupler BL

0 reviews

Leave a Review

Picture of Gunnebo Classic Berglok Chain Coupler BL

Choose SIZE *: 5/16" - 4,500 WLL

5/16" - 4,500 WLL

Not available

3/8" - 7,100 WLL

3/8" - 7,100 WLL

Not available

1/2" - 12,000 WLL

1/2" - 12,000 WLL

Not available

5/8" - 18,000 WLL

5/8" - 18,000 WLL

Not available

SKU: GI-BERGLOK-BL

Price: $40.99–$110.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

Item #	GI-Z622036	GI-Z195823	GI-Z208022	GI-Z217820	GI-Z208226
Code	BL-6-8	BL-7/8-8	BL-10-8	BL-13-8	BL-16-8
WLL lb*	2,500	4,500	7,100	12,000	18,000
For chain dim.	(6mm)	9/32, 5/16	3/8	1/2	5/8

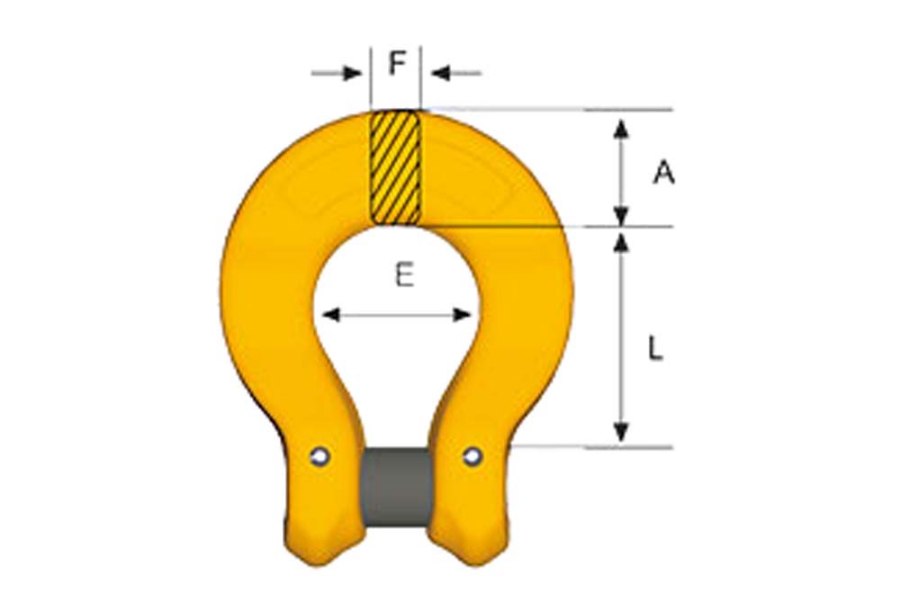

L	1.06	1.38	1.77	2.20	2.68
E	0.79	0.98	1.26	1.57	1.97
F	0.35	0.43	0.55	0.67	1.97
A	0.55	0.71	0.87	1.10	1.38
Weight lb	0.22	0.44	0.88	1.76	3.09
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z622036	GI-Z195823	GI-Z208022	GI-Z217820	GI-Z208226
Code	BL-6-8	BL-7/8-8	BL-10-8	BL-13-8	BL-16-8
WLL tonnes*	1.1	2.0	3.2	5.4	8.2
For chain dim.	6	7, 8	10	13	16
L	27	35	45	56	68
E	20	25	32	40	50
F	9	11	14	17	22
A	14	18	22	28	35
Weight kg	0.1	0.2	0.4	0.8	1.4
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z208226	Z208226	5/8" - 18,000 WLL
GI-Z195823	Z195823	5/16" - 4,500 WLL
GI-Z217820	Z217820	1/2" - 12,000 WLL
GI-Z208022	Z208022	3/8" - 7,100 WLL
