Gunnebo Classic Clevis Shackle GSA

Be the first to review this product

Choose SIZE *: 5/16" - 2 METRIC TON

5/16" - 2 METRIC TON

Not available

3/8" - 3.2 METRIC TON

3/8" - 3.2 METRIC TON

Not available

1/2" - 5.4 METRIC TON

1/2" - 5.4 METRIC TON

Not available

5/8" - 8.2 METRIC TON

5/8" - 8.2 METRIC TON

Not available

SKU: GI-CLEVISSHACKLE-GSA

Price: $126.99–$553.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

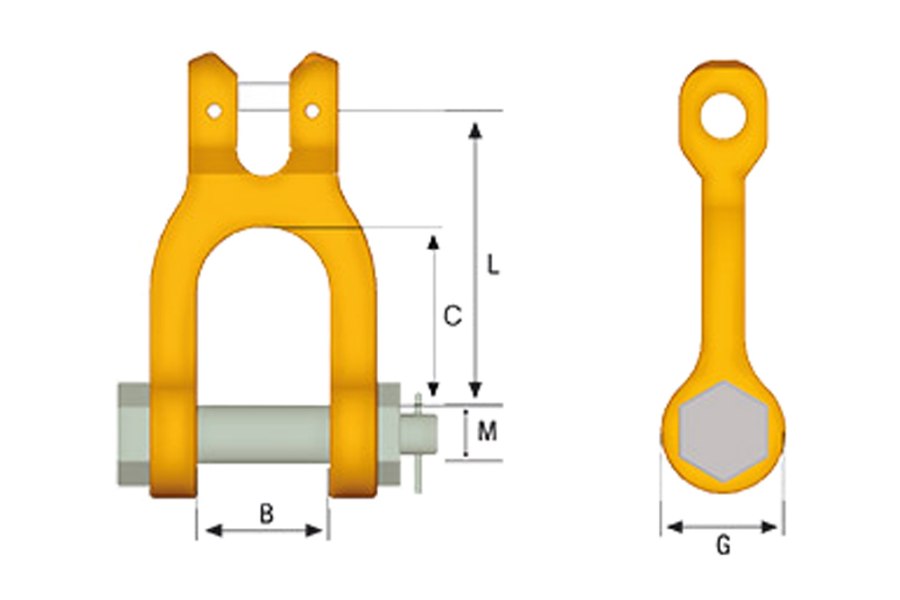

Imperial

Item #	GI-Z700882	GI-Z700883	GI-Z700884	GI-Z700885
Code	GSA-7/8-8	GSA-10-8	GSA-13-8	GSA-16-8
WLL lb*	4,409	7,054	11,905	18,077
For chain dim.	9/32, 5/16	3/8	1/2	5/8
A	1.26	1.34	1.97	2.36
C	1.42	1.89	2.56	2.76
D2	1.34	1.57	1.73	2.13
L	2.36	3.15	3.86	4.49
D1	0.63	0.79	0.87	1.06
Weight lb	0.88	1.76	3.09	5.29
*Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z700882	GI-Z700883	GI-Z700884	GI-Z700885
Code	GSA-7/8-8	GSA-10-8	GSA-13-8	GSA-16-8
WLL tonnes*	2.0	3.2	5.4	8.2
For chain dim.	7, 8	10	13	16
A	32	34	50	60
C	36	48	65	70
D2	34	40	44	54
L	60	80	98	114
D1	16	20	22	27
Weight kg	0.4	0.8	1.4	2.4
*Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z700882	Z700882	5/16" - 2 METRIC TON
GI-Z700884	Z700884	1/2" - 5.4 METRIC TON
GI-Z700885	Z700885	5/8" - 8.2 METRIC TON
GI-Z700883	Z700883	3/8" - 3.2 METRIC TON
