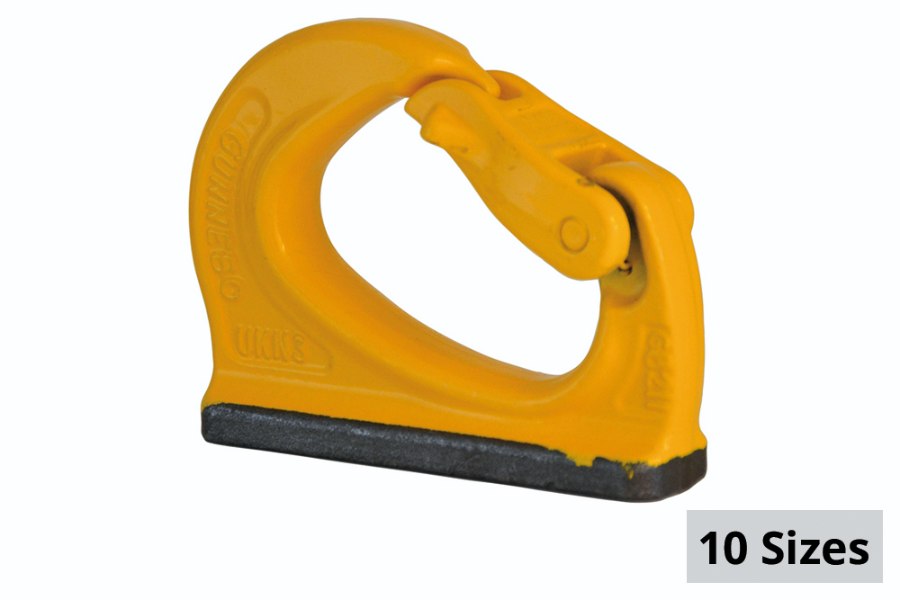

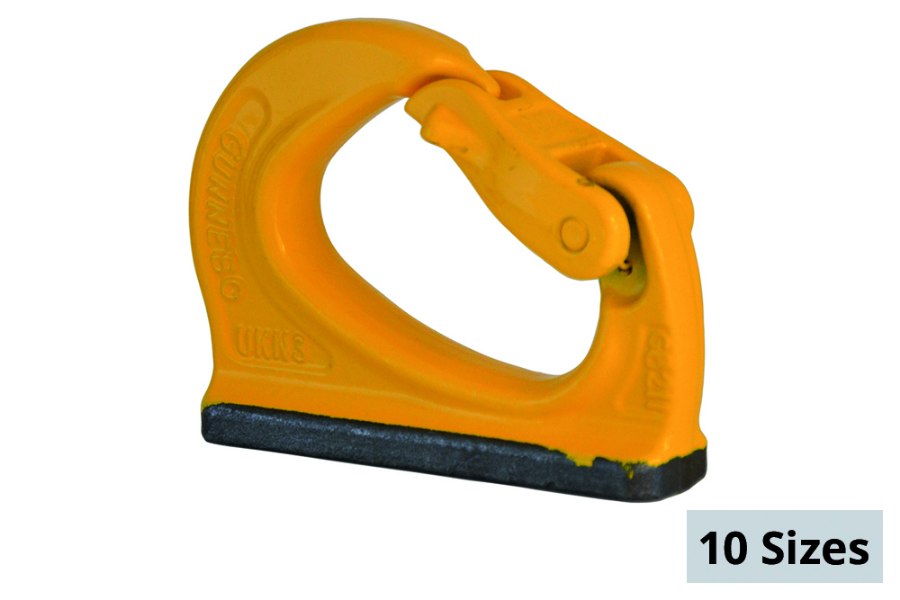

Gunnebo Classic Universal Weld-on Hook

Used Truck Marketplace

Towing Instructions

Free Shipping!

800-222-6047

Description

Imperial

Item #	GI-Z1002560	GI-Z6511810	GI-Z7009060	GI-Z6455730	GI-Z6521160	GI-Z6455800	GI-Z6515390	GI-Z6456030	GI-Z1007850	GI-Z1007851
Code	UKN-0.75*	UKN-1*	UKN-2*	UKN-3	UKN-4	UKN-5	UKN-8	UKN-10	UKN-15	UKN-20
WLL lb*	1,653	2,204	4,500	6,612	8,800	11,020	17,632	22,040	33,060	44,080
B	0.79	1.06	1.30	1.18	1.18	1.34	1.34	.85	2.17	2.56
G	0.51	0.67	0.79	0.91	1.14	1.18	1.57	1.69	1.97	2.36
H	0.79	0.98	1.18	1.26	1.50	1.85	2.01	2.28	2.64	3.35
K	0.75	0.98	1.18	1.38	1.65	1.77	1.97	2.17	2.36	2.36
L	3.21	3.74	4.49	5.20	5.51	6.50	6.77	8.66	9.45	10.83
A	0.20	0.24	0.31	0.39	0.43	0.47	0.51	0.55	0.59	0.59
X	2.20	2.83	3.39	4.13	4.49	5.16	5.24	6.69	7.40	8.15
Weight lb	0.44	1.32	1.98	2.87	4.41	7.05	7.94	18.08	21.61	27.34
Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in inches.

Metric

Item #	GI-Z1002560	GI-Z6511810	GI-Z7009060	GI-Z6455730	GI-Z6521160	GI-Z6455800	GI-Z6515390	GI-Z6456030	GI-Z1007850	GI-Z1007851
Code	UKN-0.75*	UKN-1*	UKN-2*	UKN-3	UKN-4	UKN-5	UKN-8	UKN-10	UKN-15	UKN-20
WLL tonnes*	0.75	1.0	2.0	3.0	4.0	5.0	8.0	10.0	15.0	20.0
B	20	27	33	30	30	34	34	47	55	65
G	13	17	20	23	29	30	40	43	50	60
H	20	25	30	32	38	47	51	58	67	85
K	19	25	30	32	38	47	51	58	67	85
L	81.5	95	114	132	140	165	172	220	240	275
A	5	6	8	10	11	12	13	14	15	15
X	56	72	86	105	114	131	133	170	188	207
Weight kg	0.2	0.6	0.9	1.3	2.0	3.2	3.6	8.2	9.8	12.4
Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z7009060	Z7009060	2T - 4,500 WLL
GI-Z6515390	Z6515390	8T - 17,632 WLL
GI-Z1002560	Z1002560	.75T - 1,653 WLL
GI-Z1007850	Z1007850	15T - 33,060 WLL
GI-Z6455730	Z6455730	3T - 6,612 WLL
GI-Z6455800	Z6455800	5T - 11,020 WLL
GI-Z6511810	Z6511810	1T - 2,204 WLL
GI-Z6521160	Z6521160	4T - 8,800 WLL
GI-Z1007851	Z1007851	20T - 44,080 WLL
GI-Z6456030	Z6456030	10T - 22,040 WLL
