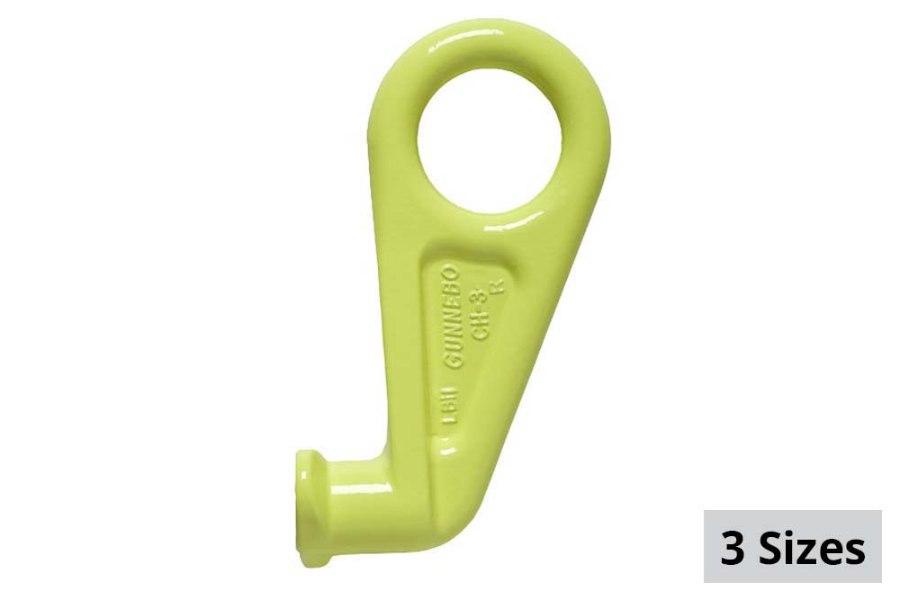

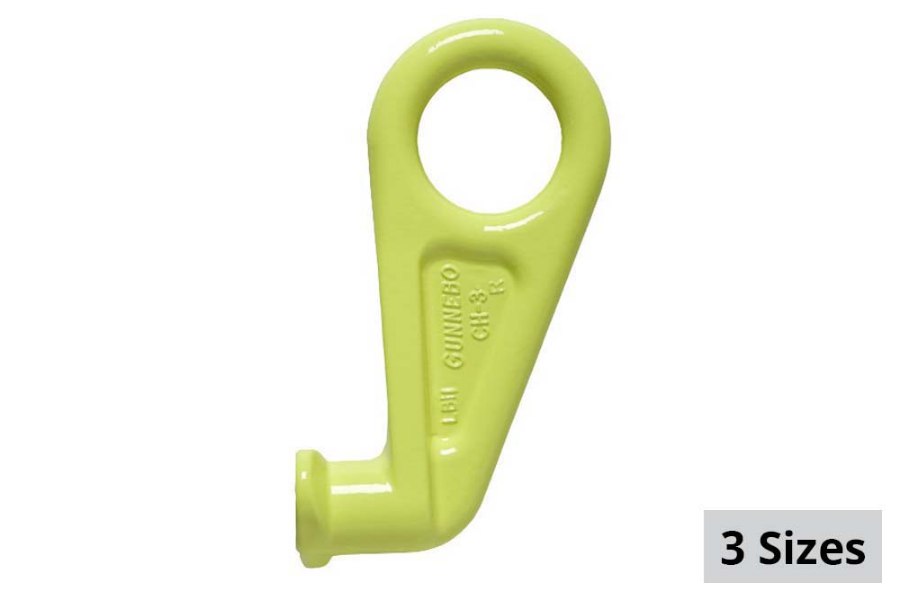

Gunnebo GrabiQ Container Hook CH

Be the first to review this product

Choose SIZE *: STRAIGHT - 27,550 WLL

STRAIGHT - 27,550 WLL

Not available

RIGHT - 27,550 WLL

RIGHT - 27,550 WLL

Not available

LEFT - 27,550 WLL

LEFT - 27,550 WLL

Not available

SKU: GI-CONTAINERHOOK

Price: $386.99–$549.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

Item #	GI-Z101220	GI-Z101221	GI-Z101219

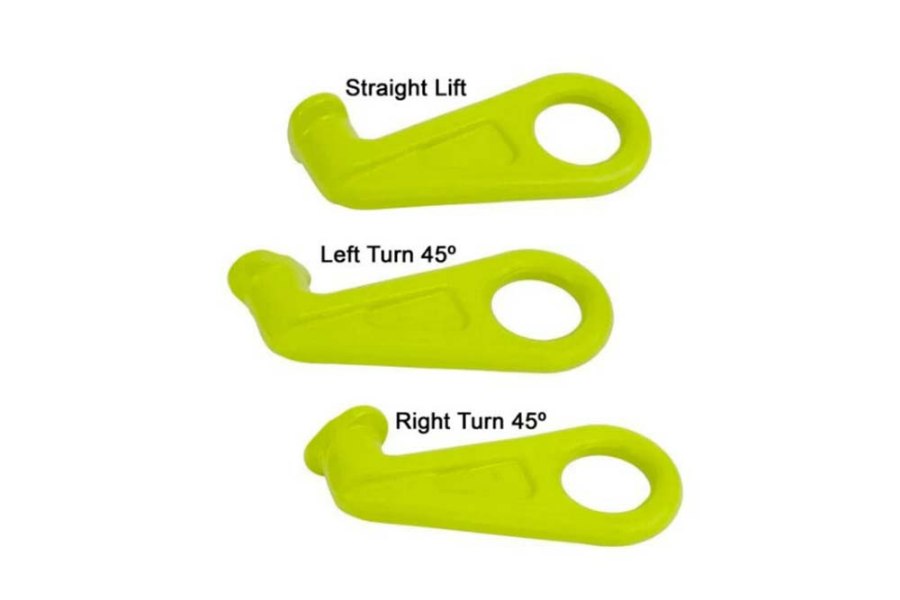

Code	CH-3	CH-3. 45° left	CH-3. 45° right
WLL lb*	27,550	27,550	27,550
A	0.98	0.98	0.98
L	7.36	7.36	7.36
E	2.76	2.76	2.76
B	1.81	1.81	1.81
H	1.85	1.85	1.85
G	2.95	2.95	2.95
Weight lb	8.378	8.378	8.378
*Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101220	GI-Z101221	GI-Z101219
Code	CH-3	CH-3. 45° left	CH-3. 45° right
WLL tonnes*	12.5	12.5	12.5
A	25	25	25
L	187	187	187
E	70	70	70
B	46	46	46
H	47	47	47
G	75	75	75
Weight kg	3.8	3.8	3.8
*Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101219	Z101219	RIGHT - 27,550 WLL
GI-Z101220	Z101220	STRAIGHT - 27,550 WLL
GI-Z101221	Z101221	LEFT - 27,550 WLL
