Gunnebo GrabiQ Couplinig Link G

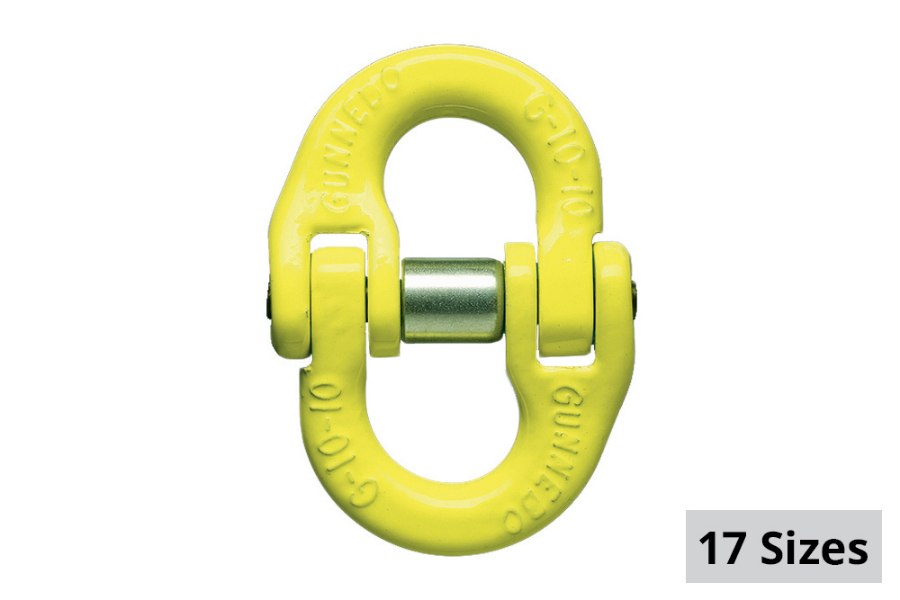

This GrabiQ G Coupling Link from Gunnebo features a heavy-duty retaining collar for semi-permanent connections for chains, slings and hooks. The coupler is forged with extra-wide inside dimension, and a heat number identification allows for full product traceability. The heavy-duty finish ensures product durability. Featuring a Safety Factor of 4:1, the Grade 100 coupler is approved for overhead lifting and 25 percent stronger than Grade 80. Choose from 10 sizes and Working Load Limits ranging from 3,306 lbs. to 88,160 lbs. Various sizes allow slings to handle different capacities.

Connects chains, slings and hooks
Grade 100 approved for overhead lifting
10 sizes: 7/32” to 1-1/4"
WLL: 3,306 lbs. to 88,160 lbs.
Forged with extra-wide inside dimension
Heavy-duty retaining collar
Heat number identification for traceability

Imperial

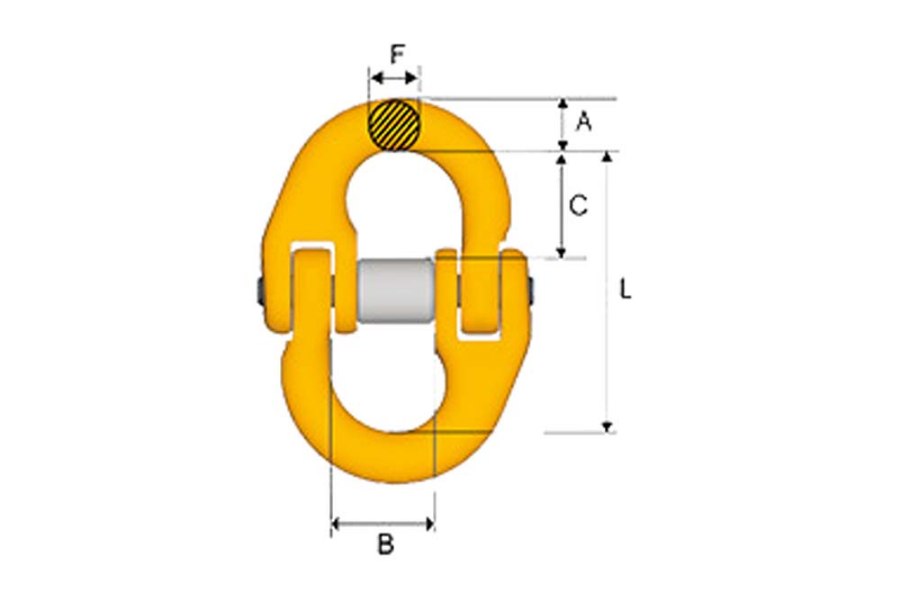

Item #	Code	WLL lb*	For chain dim.	L	B	F	A	C	Weight lb
GI-Z100822	G-6-8	5,700	5/16	1.77	0.59	0.28	0.31	0.67	0.22
GI-Z279430	G-10-8	7,100	3/8	2.68	0.98	0.43	0.51	1.02	0.66
GI-Z100823	G-10-10	8,800	3/8	2.68	0.98	0.47	0.51	1.02	0.74
GI-Z279537	G-13-8	12,000	1/2	3.50	1.18	0.59	0.63	1.30	1.54
GI-Z100824	G-13-10	15,000	1/2	0.27	0.26	0.59	0.66	1.30	1.67
GI-Z279634	G-16-8	18,000	5/8	4.13	1.42	0.75	0.79	1.57	2.65
GI-Z100825	G-16-10	22,600	5/8	4.17	1.41	0.74	0.79	1.57	3.01
GI-Z279731	G-18/20-8	28,300	3/4	1.69	1.69	0.87	0.91	1.85	4.19
GI-Z101119	G-20-10	35,300	3/4	4.92	1.69	0.91	1.02	1.73	6.01
GI-Z279838	G-22-8	34,200	7/8	5.98	1.97	0.94	1.02	2.32	6.61
GI-Z100821	G-6-10	3,306	7/32	1.77	0.59	0.27	8.31	0.62	0.20
GI-Z101339	G-22-10	44,080	7/8	5.98	1.97	1.02	1.10	2.32	7.94
GI-Z101358	G-7-10	4,500	9/32	2.20	0.71	0.35	0.43	0.87	0.36
GI-Z101365	G-26-10	88,160	1	6.34	2.28	1.25	1.34	2.40	12.57
GI-Z101666	G-32-10	88,160	1-1/4	7.87	2.76	1.50	1.57	3.03	20.94
GI-Z349171	G-26-8	47,700	1	6.34	2.28	1.18	1.30	2.40	11.46
GI-Z349189	G-32-8	72,300	1-1/4	7.87	2.76	1.50	1.57	3.03	20.94
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	Code	WLL tonnes*	For chain dim.	L	B	F	A	C	Weight kg
GI-Z100822	G-6-8	1.1	6	45	15	7	8	17	0.1
GI-Z279430	G-10-8	3.2	10	68	25	11	13	26	0.3
GI-Z100823	G-10-10	4.0	10	68	25	12	13	26	0.3
GI-Z279537	G-13-8	5.4	13	89	30	15	16	33	0.7
GI-Z100824	G-13-10	6.8	13	89	29	15	17	33	0.7
GI-Z279634	G-16-8	8.2	16	105	36	19	20	40	1.2
GI-Z100825	G-16-10	10.3	16	106	36	19	20	40	1.3
GI-Z279731	G-18/20-8	12.8	19	125	43	22	23	47	1.9
GI-Z101119	G-20-10	16.0	19	125	43	23	26	44	2.7
GI-Z279838	G-22-8	15.5	22	152	50	24	26	59	3.0
GI-Z100821	G-6-10	1.5	6	45	15	7	8	16	0.1
GI-Z101339	G-22-10	20.0	22	152	50	26	28	59	3.6
GI-Z101358	G-7-10	2.0	6	56	18	9	11	22	0.1
GI-Z101365	G-26-10	27.3	25	161	58	32	34	61	5.7
GI-Z101666	G-32-10	40.0	23	200	70	38	40	77	9.5
GI-Z349171	G-26-8	21.7	26	161	58	30	33	61	5.2
GI-Z349189	G-32-8	32.8	32	200	70	38	40	77	9.5
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm.

Item #	MFG #	GTIN #	Size
GI-Z100824	Z100824	--	1/2" - 15,000 WLL
GI-Z279838	Z279838	--	7/8" - 34,200 WLL
GI-Z279537	Z279537	--	1/2" - 12,000 WLL
GI-Z101365	Z101365	--	1" - 60,169 WLL
GI-Z279634	Z279634	--	5/8" - 18,000 WLL
GI-Z100821	Z100821	--	7/32" - 3,306 WLL
GI-Z279430	Z279430	--	3/8" - 7,100 WLL
GI-Z100822	Z100822	--	5/16" - 5,700 WLL
GI-Z349189	Z349189	--	1 1/4" - 72,300 WLL
GI-Z101339	Z101339	--	7/8" - 44,080 WLL
GI-Z100823	Z100823	--	3/8" - 8,800 WLL
GI-Z100825	Z100825	7318953547804	5/8" - 22,600 WLL
GI-Z101666	Z101666	--	1 1/4" - 88,160 WLL
GI-Z279731	Z279731	--	3/4" - 28,300 WLL
GI-Z101119	Z101119	--	3/4" - 35,300 WLL
GI-Z101358	Z101358	--	9/32" - 4,500 WLL
GI-Z349171	Z349171	--	1" - 47,700 WLL
