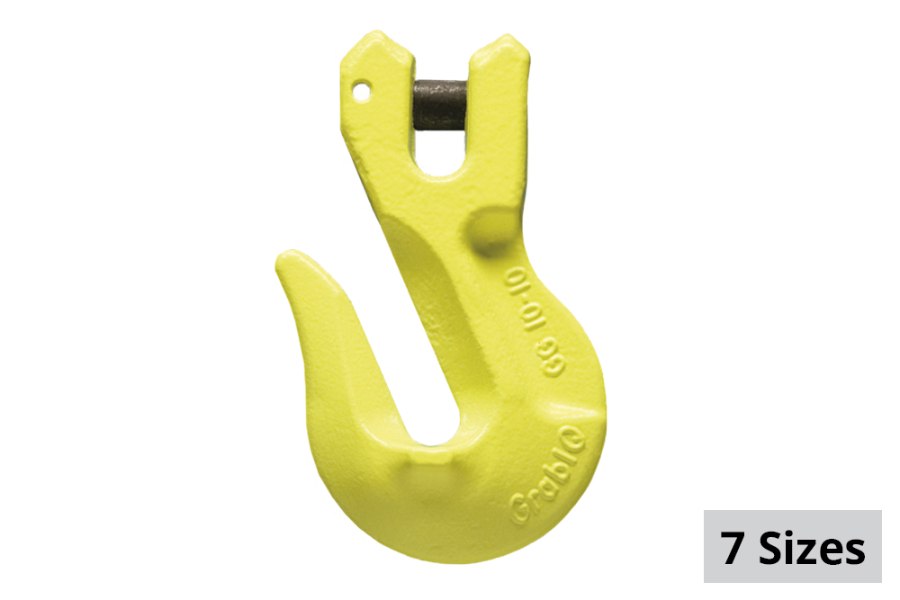

Gunnebo GrabiQ Grab Hook GG

0 reviews

Leave a Review

Choose SIZE *: 7/32" - 3,306 WLL

7/32" - 3,306 WLL

Not available

9/32" - 4,500 WLL

9/32" - 4,500 WLL

Not available

5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

3/4" - 35,300 WLL

3/4" - 35,300 WLL

Not available

SKU: GI-GRABHOOK-GG

Price: $38.99–$223.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

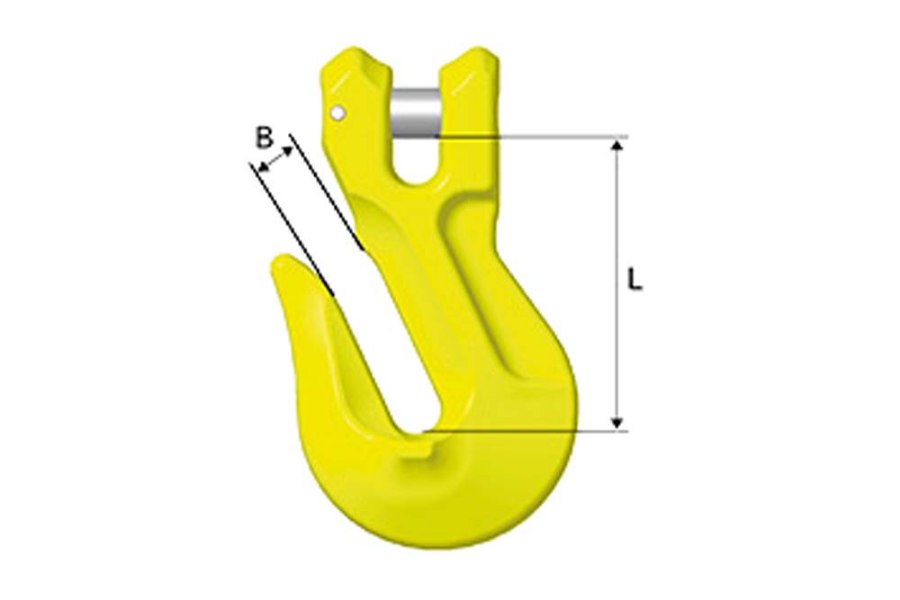

Item #	GI-Z101844	GI-Z100845	GI-B14771	GI-B14772	GI-B14773	GI-B14774	Z101152
Code	GG-6-10	GG-7-10	GG-8-10	GG-10-10	GG-13-10	GG-16-10	GG-20-10
WLL lb*	3,306	4,500	5,700	8,800	15,000	22,600	35,300
L	2.13	2.24	2.24	2.99	3.82	3.82	5.79
B	0.31	0.39	0.39	0.47	0.63	0.79	1.02
Weight lb	0.44	0.66	0.88	1.98	3.97	6.83	15.43
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101844	GI-Z100845	GI-B14771	GI-B14772	GI-B14773	GI-B14774	Z101152
Code	GG-6-10	GG-7-10	GG-8-10	GG-10-10	GG-13-10	GG-16-10	GG-20-10
WLL tonnes*	1.5	2.0	2.6	4.0	6.8	10.3	16.0
L	54	57	57	76	97	114	147
B	8	10	10	12	16	20	26
Weight kg	0.2	0.3	0.4	0.9	1.8	3.1	7.0
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101844	Z101844	7/32" - 3,306 WLL
GI-B14771	B14771	5/16" - 5,700 WLL
GI-Z100845	Z100845	9/32" - 4,500 WLL
GI-Z101152	Z101152	3/4" - 35,300 WLL
GI-B14773	B14773	1/2" - 15,000 WLL
GI-B14772	B14772	3/8" - 8,800 WLL
GI-B14774	B14774	5/8" - 22,600 WLL
