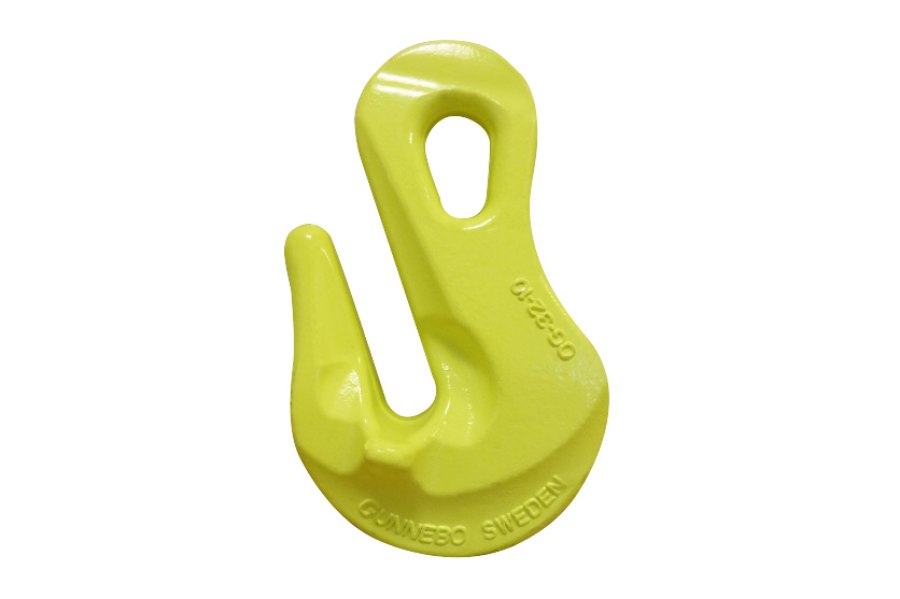

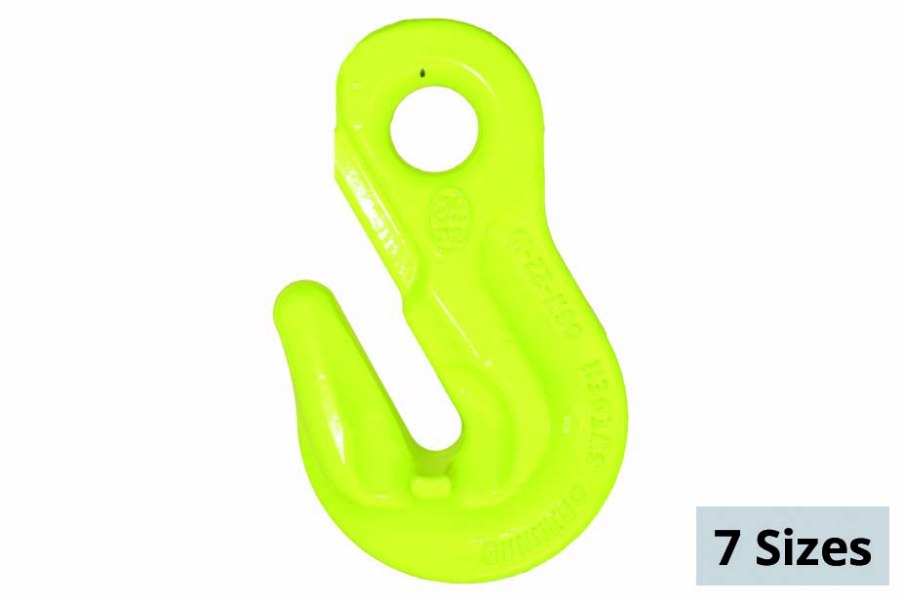

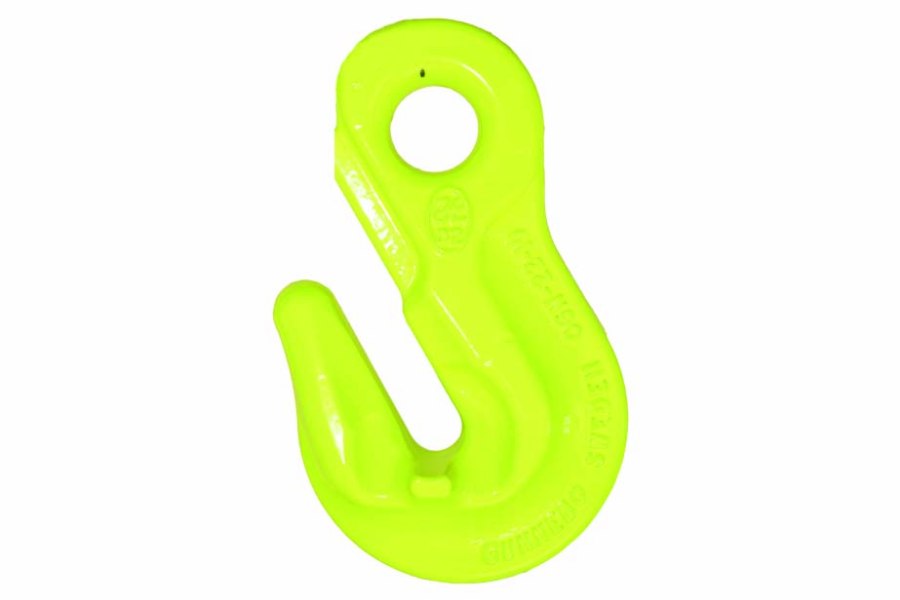

Gunnebo GrabiQ Grab Hook OG

Item #	GI-Z101296	GI-Z101297	GI-Z101298	GI-Z101299	GI-Z101300	GI-Z101301	GI-Z101302
Code	OG-7/8-10	OG-10-10	OG-13-10	OG-16-10	OG-20-10	OG-22-10	OG-26-10
WWL lb*	5,700	8,800	15,000	22,600	35,300	44,094	60,169

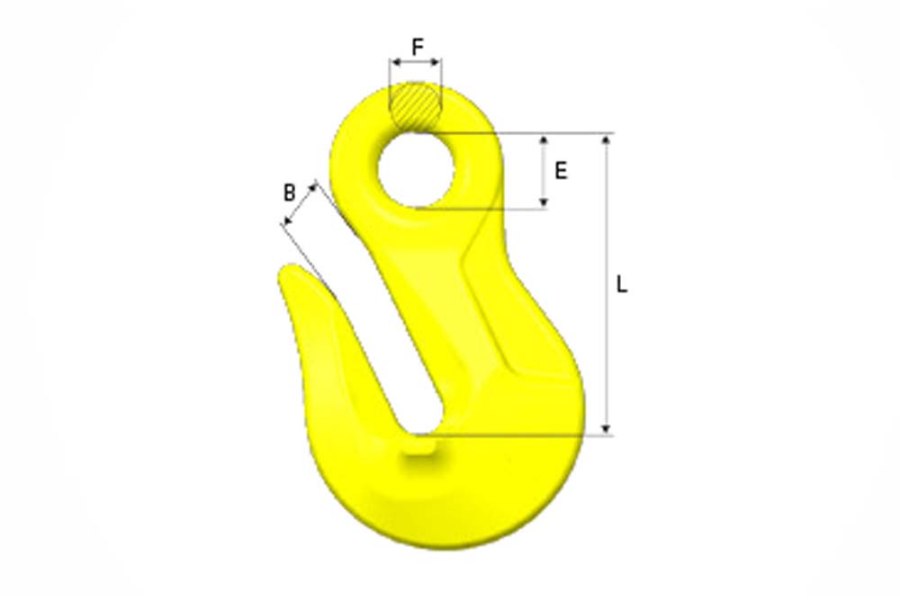

L	2.56	3.35	4.09	5.16	6.57	7.36	8.98
B	0.39	0.47	0.63	0.79	1.02	1.02	1.26
E	0.67	0.79	1.02	1.02	1.61	1.81	2.17
F	0.39	0.47	0.63	0.75	0.91	1.26	1.50
Weight lb	0.66	1.54	3.53	6.17	13.45	18.96	30.86
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Code

OG-7/8-10

OG-10-10

OG-13-10

OG-16-10

OG-20-10

OG-22-10

OG-26-10

WWL lb*

5,700

8,800

15,000

22,600

35,300

44,094

60,169

L

2.56

3.35

4.09

5.16

6.57

7.36

8.98

B

0.39

0.47

0.63

0.79

1.02

1.26

E

0.67

0.79

1.02

1.61

1.81

2.17

F

0.39

0.47

0.63

0.75

0.91

1.26

1.50

Weight lb

0.66

1.54

3.53

6.17

13.45

18.96

30.86

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015.
*Safety factor 4:1. All dimensions in inches.
