Gunnebo GrabiQ Master Link M

The M Master Link from Gunnebo is used with GrabIQ slings. Choose from 16 sizes with Working Load Limits ranging from 3,306 lbs. to 275,500 lbs. Featuring a Safety Factor of 5:1, each M Master Link can handle up to five separate sling legs with quick insertion and removal as needed for the lifting job.

As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.

16 sizes available: 3/8" to 3-1/8"
WLL: 3,306 lbs. to 275,500 lbs.
Safety Factor: 5:1
Accommodates up to 5 slings
Stamped for traceability

Imperial

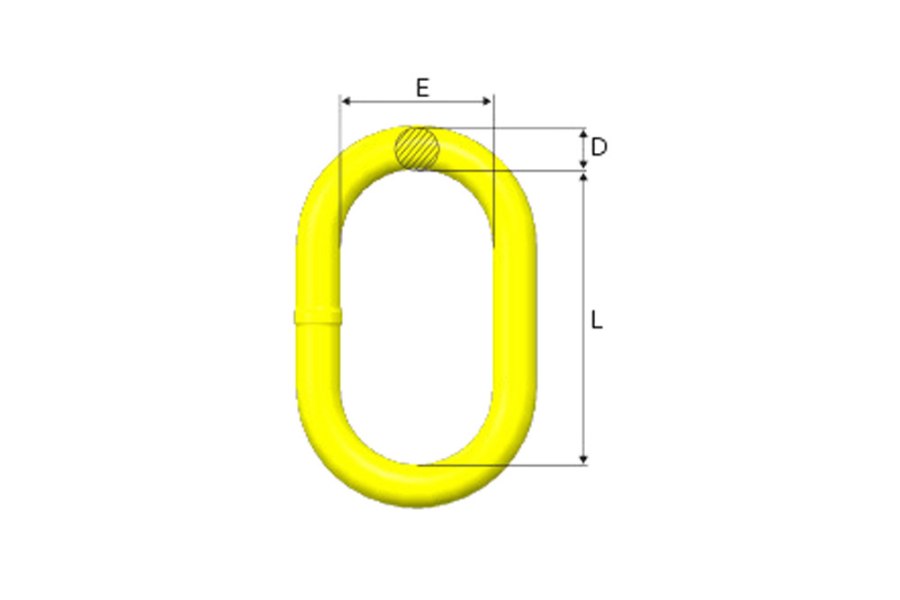

Item #	Code	WLL lb (SF 5:1) EN 1677-4	WLL lb (SF 5:1) A-952/A952M, AS 3775.2-2014	L	E	D	Weight lb
GI-Z101271	M-6-10	3,306	3,306	3.94	2.36	3/8	0.44
GI-Z101272	M-86-10	5,510	7,100	4.92	2.76	1/2	0.88
GI-Z101273	M-108-10	8,800	11,460	5.51	3.15	5/8	1.76
GI-Z101274	M-13-10	15,000	15,000	5.91	3.54	3/4	2.20
GI-Z101267	M-1310-10	16,530	17,632	6.30	3.74	7/8	3.31
GI-Z101268	M-1613-10	22,040	29,974	7.48	4.33	1-1/8	6.17
GI-Z101247	M-19-10	26,448	35,300	7.87	4.72	1-3/16	7.72
GI-Z101269	M-2016-10	37,468	45,402	9.45	5.51	1-3/8	11.46
GI-Z101270	M-2220-10	55,100	68,103	9.84	5.91	1-9/16	16.09
GI-Z101275	M-2622-10	61,712	70,528	9.84	5.91	1-5/8	19.18
GI-Z101284	M-32-10	72,732	85,074	11.81	7.09	1-3/4	25.79
GI-Z101276	M-3226-10	94,772	102,706	11.81	7.87	2	32.63
GI-Z101277	M-3632-10	123,424	143,260	13.78	7.87	2-1/8	45.64
GI-Z101278	M-4536-10	154,280	160,231	14.76	8.27	2-3/8	58.20
GI-Z101279	M-90T-10	198,360	220,400	17.72	9.84	2-3/4	94.36
GI-Z101280	M-125T-10**	275,500	275,500	17.72	10.24	3-1/8	125.66
** Dimension L and E not acc. to EN 1677-4. Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	Code	WLL lb (SF 5:1) EN 1677-4	WLL lb (SF 5:1) A-952/A952M, AS 3775.2	L	E	D	Weight kg
GI-Z101271	M-6-10	1.5	1.5	100	60	11	0.2
GI-Z101272	M-86-10	3.2	3.2	125	70	14	0.4
GI-Z101273	M-108-10	5.2	5.2	140	80	17	0.8
GI-Z101274	M-13-10	6.8	6.8	150	90	19	1.0
GI-Z101267	M-1310-10	8.0	8.0	160	95	22	1.5
GI-Z101268	M-1613-10	13.6	13.6	190	110	28	2.8
GI-Z101247	M-19-10	16.0	16.0	200	120	30	3.5
GI-Z101269	M-2016-10	20.6	20.6	240	140	34	5.2
GI-Z101270	M-2220-10	30.9	30.9	250	150	40	7.3
GI-Z101275	M-2622-10	35.0	35.0	250	150	42	8.7
GI-Z101284	M-32-10	38.6	38.6	300	180	45	11.7
GI-Z101276	M-3226-10	46.6	46.6	300	200	50	14.8
GI-Z101277	M-3632-10	65.0	65.0	350	200	55	20.7
GI-Z101278	M-4536-10	72.7	72.7	375	210	60	26.4
GI-Z101279	M-90T-10	100.0	100.0	450	250	70	42.8
GI-Z101280	M-125T-10**	125.0	125.0	450	260	80	57.0
** Dimension L and E not acc. to EN 1677-4. Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Item #	MFG #	Size
GI-Z101270	Z101270	1 9/16" - 68,103 WLL
GI-Z101269	Z101269	1 3/8" - 45,402 WLL
GI-Z101284	Z101284	1 3/4" - 85,074 WLL
GI-Z101274	Z101274	3/4" - 15,000 WLL
GI-Z101271	Z101271	3/8" - 3,306 WLL
GI-Z101277	Z101277	2 1/8" - 143,260 WLL
GI-Z101276	Z101276	2" - 102,706 WLL
GI-Z101275	Z101275	1 5/8" - 70,528 WLL
GI-Z101272	Z101272	1/2" - 7,100 WLL
GI-Z101273	Z101273	5/8" - 11,460 WLL
GI-Z101267	Z101267	7/8" - 17,632 WLL
GI-Z101279	Z101279	2 3/4" - 220,400 WLL
GI-Z101278	Z101278	2 3/8" - 160,231 WLL
GI-Z101280	Z101280	3 1/8" - 275,500 WLL
