Gunnebo GrabiQ Master Link MFX

0 reviews

Leave a Review

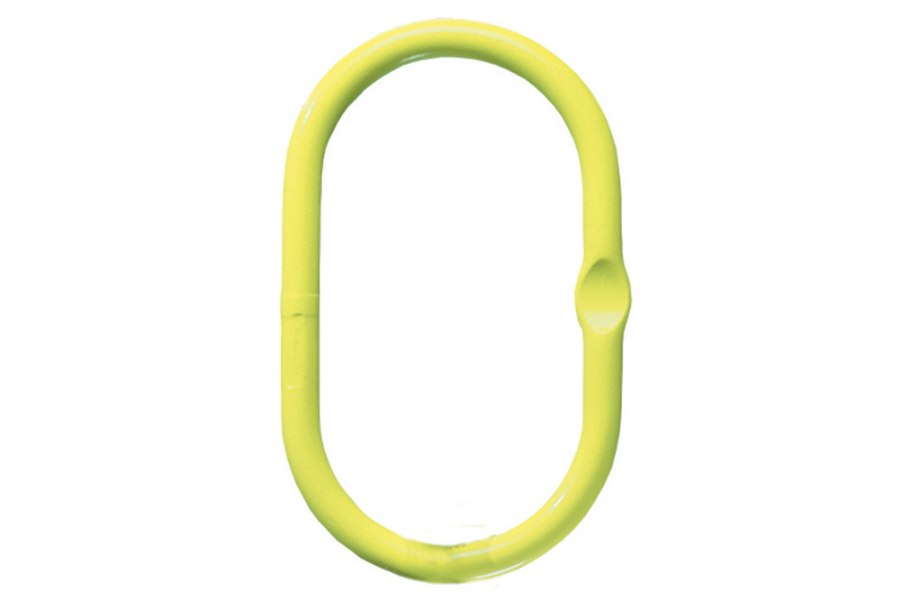

Picture of Gunnebo GrabiQ Master Link MFX

Choose SIZE *: 1 1/8" - 17,632 WLL

1 1/8" - 17,632 WLL

Not available

1 3/8" - 24,685 WLL

1 3/8" - 24,685 WLL

Not available

1 9/16" - 35,300 WLL

1 9/16" - 35,300 WLL

Not available

1" - 11,461 WLL

1" - 11,461 WLL

Not available

SKU: GI-MASTERLINK-MFX

Price: $106.99–$198.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The MFX Master Link from Gunnebo is an oversized link for 1- and 2-leg GrabIQ slings and is designed for use with CL, CLD, CG and CGD components. Choose from four sizes with Working Load Limits ranging from 11,461 lbs. to 35,500 lbs. Featuring a Safety Factor of 5:1, each MFX Master Link allows for efficient sling connection, and the various capacities of links allow for safe lifting with the correct master link.

As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.

Four sizes available: 1" to 1-9/16"
WLL: 11,461 lbs. to 35,300 lbs.
Safety Factor: 5:1
Oversized link
Accepts 1- and 2-leg slings
Stamped for traceability

Imperial

Item #	GI-Z100550	GI-Z100551	GI-Z100552	GI-Z101125
Code	MFX-108-10	MFX-1310-10	MFX-1613-10	MFX-2016-10
WLL lb (SF 5:1) EN 1677-4	9,367	16,530	24,685	35,300
WLL lb (SF 5:1) A-952/A952M AS 3775.2	11,461	17,632	29,974	45,402
For chain 1-leg	5/16, 3/8	1/2	5/8	3/4
For chain 2-leg	5/16	3/8	1/2	5/8

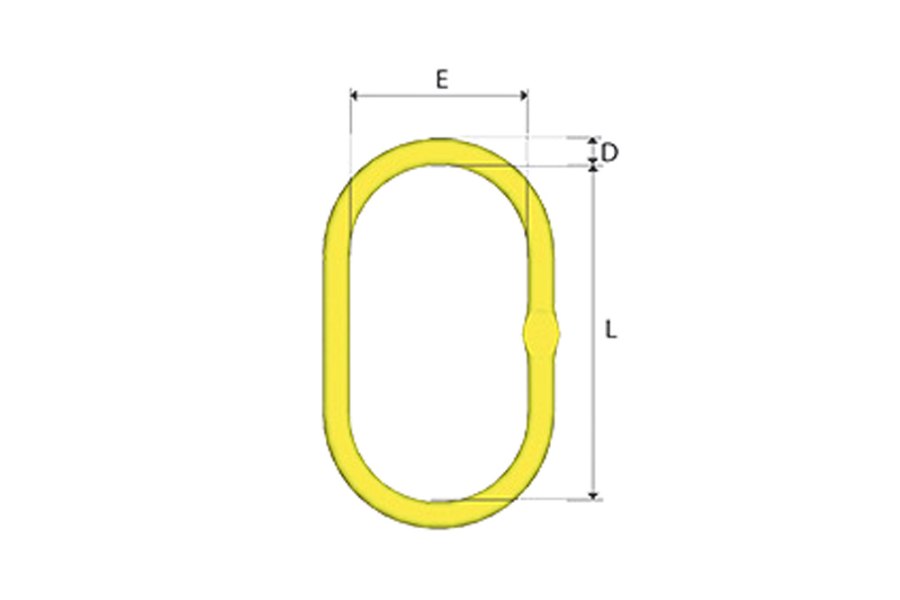

L	13.39	13.39	13.39	13.39
E	7.09	7.09	7.09	7.09
D	1	1-1/8	1-3/8	1-9/16
Weight lb	8.16	10.36	15.65	21.16
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. All dimensions in inches.

Metric

Item #	GI-Z100550	GI-Z100551	GI-Z100552	GI-Z101125
Code	MFX-108-10	MFX-1310-10	MFX-1613-10	MFX-2016-10
WLL t (SF 5:1) EN 1677-4	4.25	7.5	11.2	16.0
WLL t (SF 5:1) ASTM A-952	5.2	8.0	13.6	20.6
For chain 1-leg	8, 10	13	16	20
For chain 2-leg	8	10	13	16
L	340	340	340	340
E	180	180	180	180
D	25	28	34	40
Weight lb	3.7	4.7	7.1	9.6
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02, AS 3775:2014 and AS 3776:2015. All dimensions in mm.
