Gunnebo GrabiQ Safety Hook GBK

0 reviews

Leave a Review

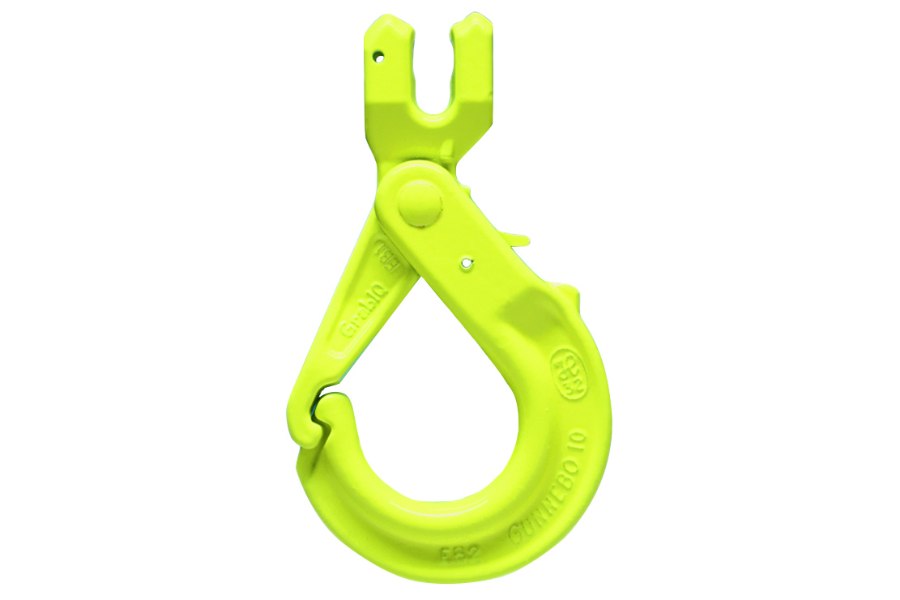

Picture of Gunnebo GrabiQ Safety Hook GBK

Choose SIZE *: 7/32" - 3,306 WLL

7/32" - 3,306 WLL

Not available

9/32" - 4,500 WLL

9/32" - 4,500 WLL

Not available

5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

SKU: GI-SAFETYHOOK-GBK

Price: $144.99–$438.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

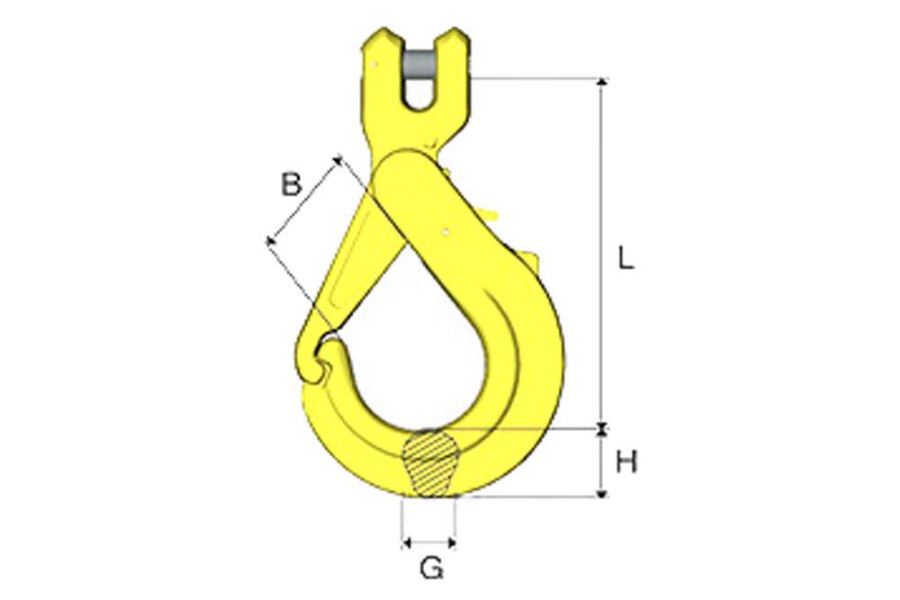

Item #	GI-Z100758	GI-Z100849	GI-Z100759	GI-Z100760	GI-Z100761	GI-Z100762
Code	GBK-6-10	GBK-7-10	GBK-8-10	GBK-10-10	GBK-13-10	GBK-16-10
WWL lb*	3,306	4,500	5,700	8,800	15,000	22,600
L	3.43	4.49	4.69	5.91	6.77	8.19
B	1.02	1.42	1.42	1.85	2.09	2.68
G	0.59	0.79	0.79	0.87	1.14	1.18
H	0.67	0.87	0.87	1.14	1.50	1.77
Weight lb	0.88	1.10	1.76	3.09	5.95	9.70
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z100758	GI-Z100849	GI-Z100759	GI-Z100760	GI-Z100761	GI-Z100762
Code	GBK-6-10	GBK-7-10	GBK-8-10	GBK-10-10	GBK-13-10	GBK-16-10
WWL tonnes*	1.5	2.0	2.6	4.0	6.8	10.3
L	87	114	119	150	172	208
B	26	36	36	47	53	68
G	15	20	20	22	29	30
H	17	22	22	29	38	45
Weight kg	0.4	0.5	0.8	1.4	2.7	4.4
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z100758	Z100758	7/32" - 3,306 WLL
GI-Z100759	Z100759	5/16" - 5,700 WLL
GI-Z100760	Z100760	3/8" - 8,800 WLL
GI-Z100761	Z100761	1/2" - 15,000 WLL
GI-Z100762	Z100762	5/8" - 22,600 WLL
GI-Z100849	Z100849	9/32" - 4,500 WLL
