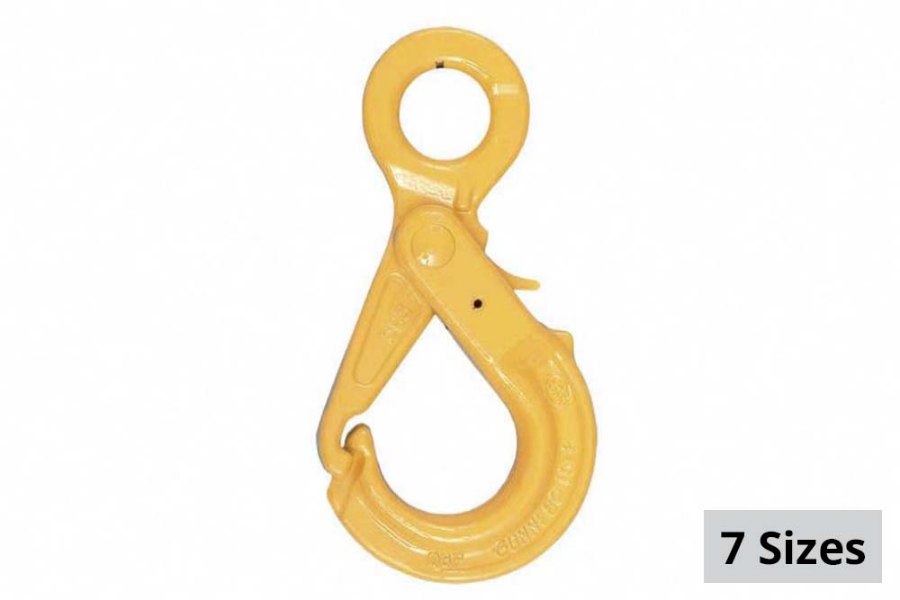

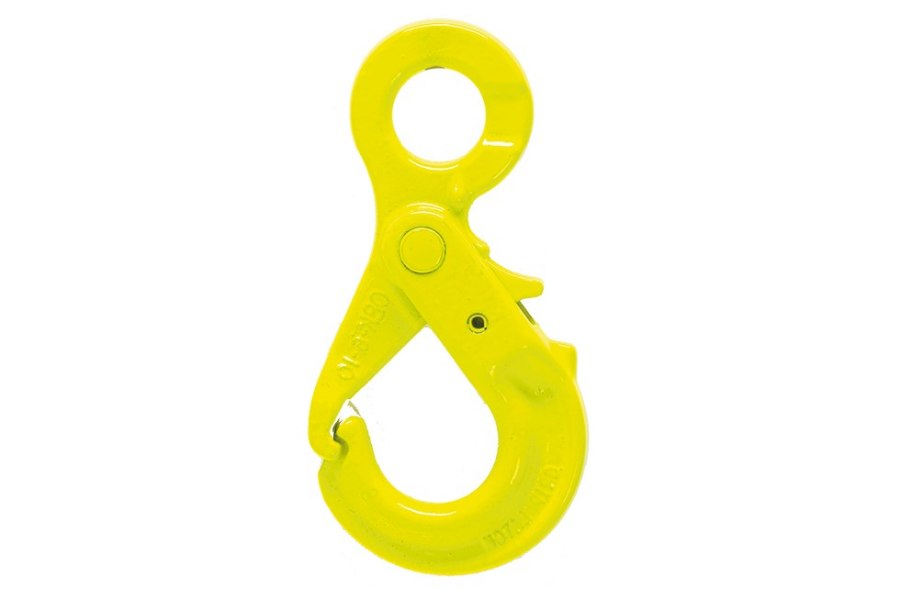

Gunnebo GrabiQ Safety Hook OBK

Be the first to review this product

Choose SIZE *: 7/32" - 3,306 WLL

7/32" - 3,306 WLL

Not available

5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

3/4" - 35,300 WLL

3/4" - 35,300 WLL

Not available

7/8" - 44,094 WLL

7/8" - 44,094 WLL

Not available

SKU: GI-SAFETYHOOK-OBK

Price: $138.99–$911.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

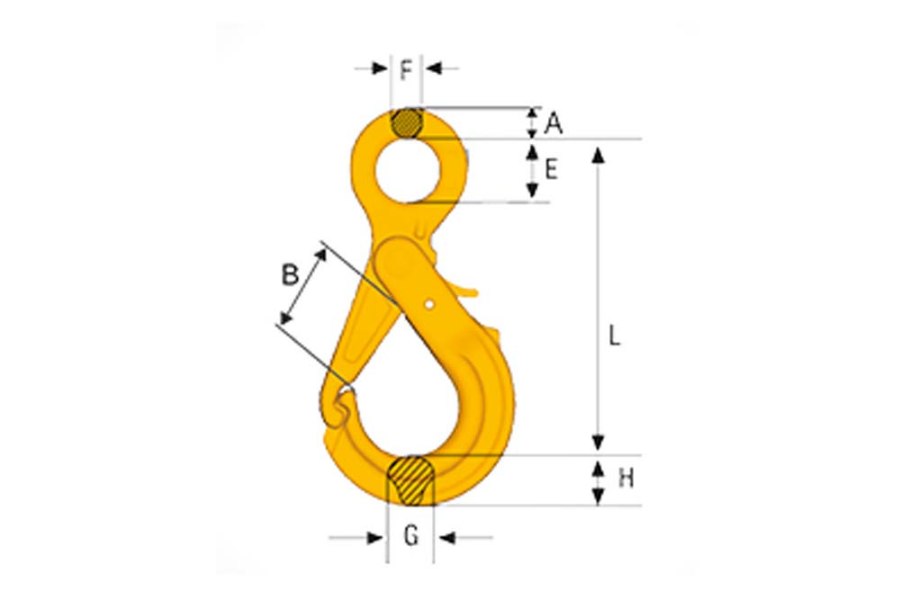

Item #	GI-Z101048	GI-Z101143	GI-Z101145	GI-Z101147	GI-Z101141	GI-Z101240	GI-Z100218
Code	OBK-6-10	OBK-7/8-10	OBK-10-10	OBK-13-10	OBK-16-10	OBK-18/20-10	OBK-22-8
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	34,200
A	0.47	0.55	0.63	0.83	1.02	1.10	1.18
L	4.06	5.47	6.69	8.11	9.88	11.54	13.19
B	1.02	1.46	1.85	2.09	2.68	2.91	3.43
E	0.87	1.10	1.34	1.73	2.20	2.36	2.76
F	0.35	0.39	0.51	0.59	0.75	0.87	0.94
G	0.59	0.79	0.87	1.14	1.14	1.73	1.57
H	0.67	0.87	1.14	1.50	1.77	2.20	2.28
Weight lb	0.88	1.76	2.87	5.73	9.70	16.09	23
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101048	GI-Z101143	GI-Z101145	GI-Z101147	GI-Z101141	GI-Z101240	GI-Z100218
Code	OBK-6-10	OBK-7/8-10	OBK-10-10	OBK-13-10	OBK-16-10	OBK-18/20-10	OBK-22-8
WLL tonnes*	1.5	2.6	4.0	6.8	10.3	16.0	15.5
A	12	14	16	21	26	28	30
L	103	139	170	206	251	293	335
B	26	37	47	53	68	74	87
E	22	28	34	44	56	60	70
F	9	10	13	15	19	22	24
G	15	20	22	29	29	44	40
H	17	22	29	38	45	56	58
Weight kg	0.4	0.8	1.3	2.6	4.4	8.3	10.5
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101240	Z101240	3/4" - 35,300 WLL
GI-Z101147	Z101147	1/2" - 15,000 WLL
GI-Z101141	Z101141	5/8" - 22,600 WLL
GI-Z101048	Z101048	7/32" - 3,306 WLL
GI-Z101145	Z101145	3/8" - 8,800 WLL
GI-Z101143	Z101143	5/16" - 5,700 WLL
GI-Z100218	Z100218	7/8" - 44,094 WLL
