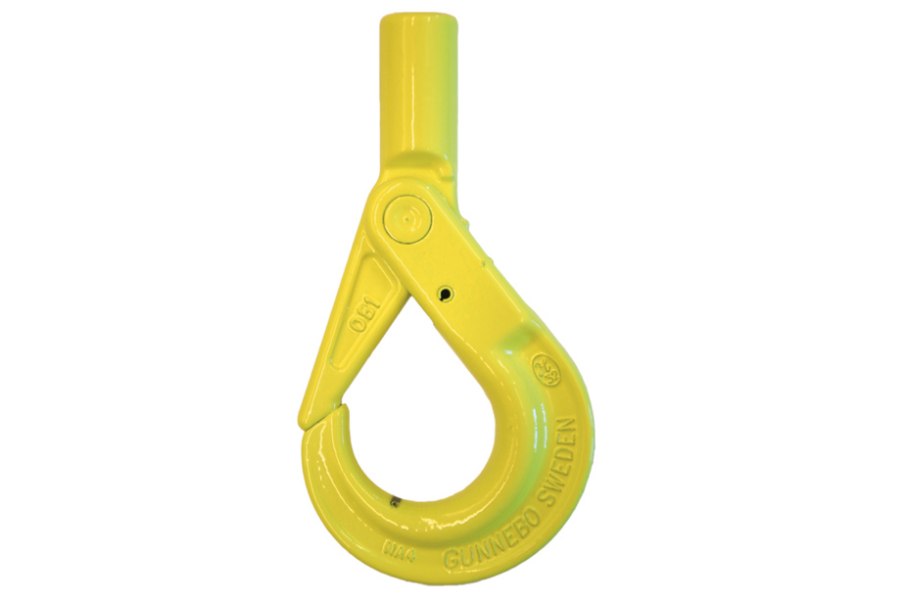

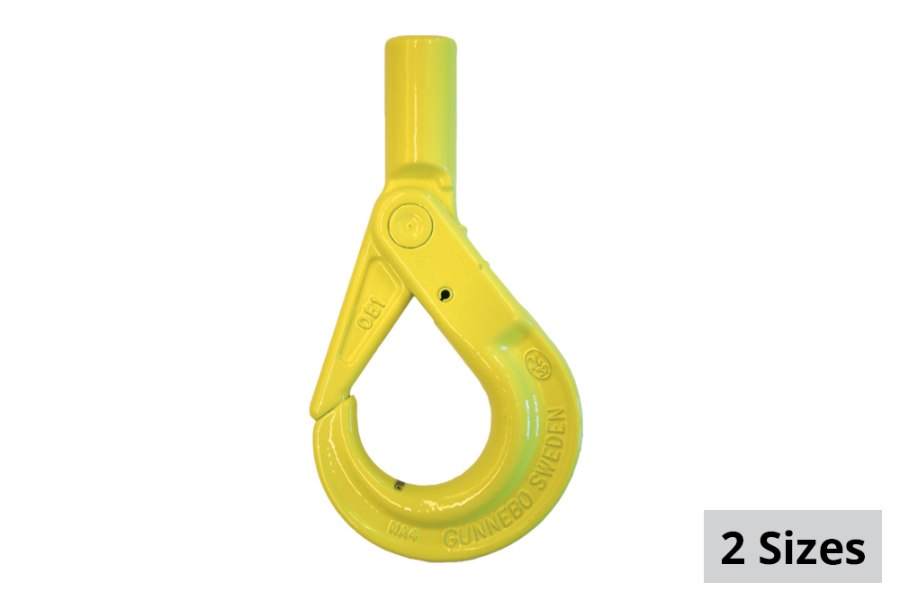

Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

Picture of Gunnebo GrabiQ Shank Safety Hook BKT

SIZE *

SKU: GI-SHANKSAFEHK-BKT

Price: $168.99–$203.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

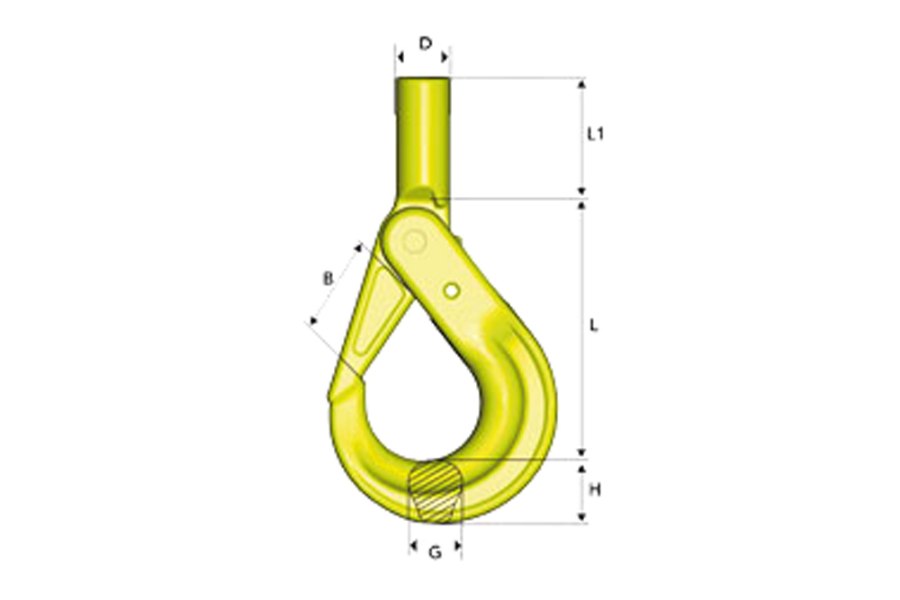

Imperial

Item #	GI-Z1011020	GI-Z1010710
Code	BKT-7/8-10	BKT-13-10
WLL lb*	5,700	15,000
A	4.37	6.30
L	1.46	2.17
B	1.85	3.03
E	0.94	1.34
F	0.51	0.79
G	0.67	1.18
H	1.02	1.54
Weight lb	1.98	6.61
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. d min = the smallest permitted shank dimension after machining. Note! After machining of the shank, proof loading must be carried out. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z1011020	GI-Z1010710
Code	BKT-7/8-10	BKT-13-10
WLL tonnes*	2.6	6.8
L	111	160
B	37	55
L1	47	77
D	24	34
dmin	13	20
G	17	30
H	26	39
Weight kg	0.9	3.0
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. d min = the smallest permitted shank dimension after machining. Note! After machining of the shank, proof loading must be carried out. *Safety factor 4:1. All dimensions in mm.
