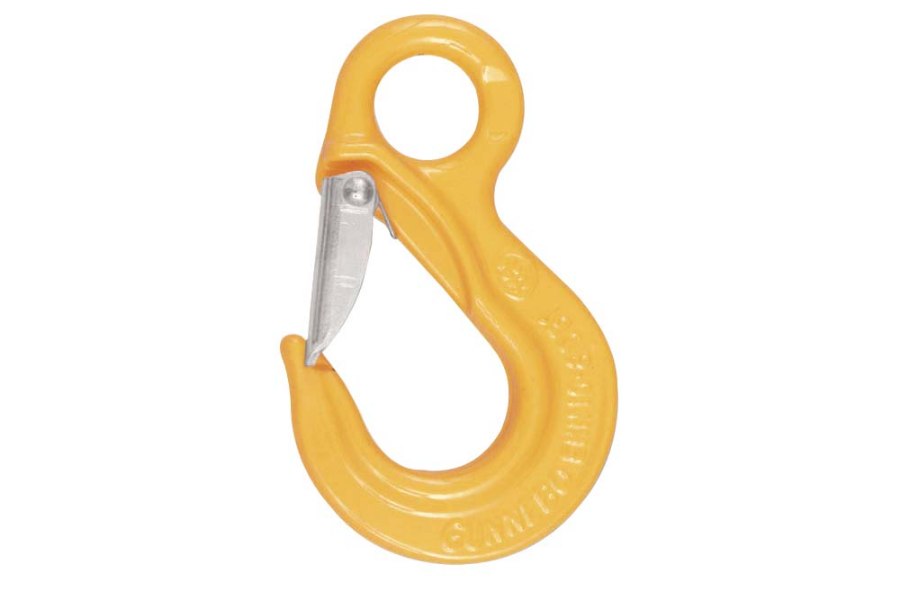

Gunnebo GrabiQ Sling Hook EKN

Used Truck Marketplace

Towing Instructions

Free Shipping!

800-222-6047

Description

Imperial

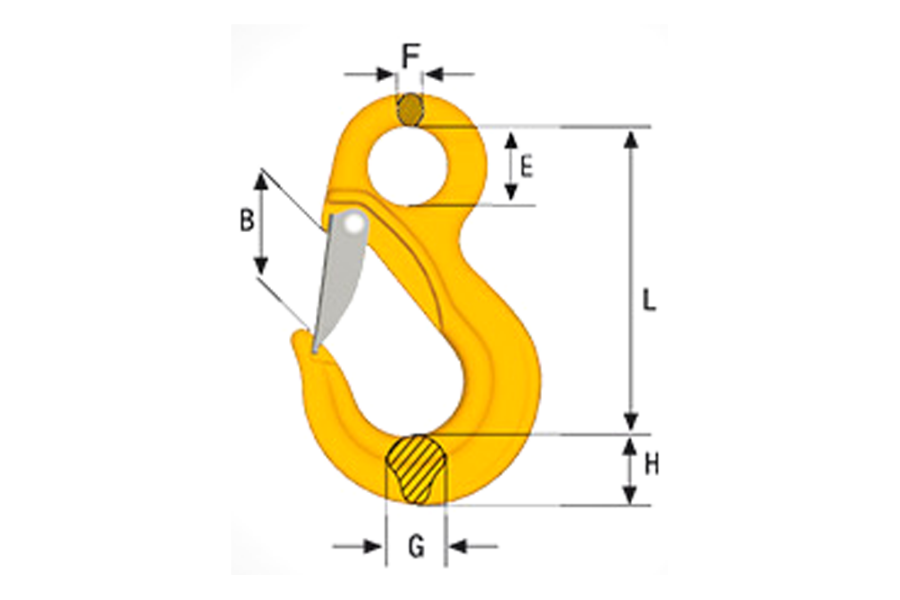

Item #	GI-Z101128	GI-Z101130	GI-Z101132	GI-Z101134	GI-Z101136	GI-Z101327	GI-Z101328	GI-Z101329	GI-Z100725	GI-Z101330
Code	EKN- 6-10	EKN- 7/8-10	EKN-10-10	EKN-13-10	EKN-16-10	EKN-20-10	EKN-22-10	EKN-26-10	72,300 WLL	EKN-32-10
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	44,080	60,169	72,311	88,160
L	3.66	4.25	5.28	6.54	7.99	9.02	10.51	11.85	13.11	13.90
B	0.98	1.02	1.38	1.65	2.09	2.56	2.87	3.23	3.66	3.78
E	0.91	1.10	1.34	1.73	2.20	2.40	2.52	2.60	2.99	3.54
F	0.39	0.47	0.55	0.71	0.87	1.02	1.22	1.26	1.50	1.50
G	0.67	0.67	0.91	1.10	1.42	1.65	1.69	2.01	2.40	2.40
H	0.79	0.91	1.18	1.50	1.85	2.36	2.64	2.95	3.14	3.86
Weight lb	0.88	1.32	2.20	4.63	8.82	14.11	19.62	28.66	41.73	55.12
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101128	GI-Z101130	GI-Z101132	GI-Z101134	GI-Z101136	GI-Z101327	GI-Z101328	GI-Z101329	GI-Z100725	GI-Z101330
Code	EKN- 6-10	EKN- 7/8-10	EKN-10-10	EKN-13-10	EKN-16-10	EKN-20-10	EKN-22-10	EKN-26-10	72,300 WLL	EKN-32-10
WLL tonnes*	1.5	2.6	4.0	6.8	10.3	16.0	20.0	27.3	32.8	40.0
L	93	108	134	166	203	229	267	301	333	353
B	25	26	37	42	53	60	73	82	93	96
E	23	28	34	44	56	61	64	66	76	90
F	10	12	14	18	22	26	31	32	38	32
G	17	17	23	28	36	42	43	51	61	61
H	20	23	30	38	47	60	67	75	80	98
Weight kg	0.4	0.6	1.0	2.1	4.0	6.4	8.9	13.0	18.927	25.0
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101136	Z101136	5/8" - 22,600 WLL
GI-Z101134	Z101134	1/2" - 15,000 WLL
GI-Z101327	Z101327	3/4" - 35,300 WLL
GI-Z101330	Z101330	1 1/4" - 88,160 WLL
GI-Z101130	Z101130	5/16" - 5,700 WLL
GI-Z101329	Z101329	1" - 60,169 WLL
GI-Z101128	Z101128	7/32" - 3,306 WLL
GI-Z101132	Z101132	3/8" - 8,800 WLL
GI-Z100725	Z100725	1 1/4" - 72,300 WLL
GI-Z101328	Z101328	7/8" - 44,080 WLL
