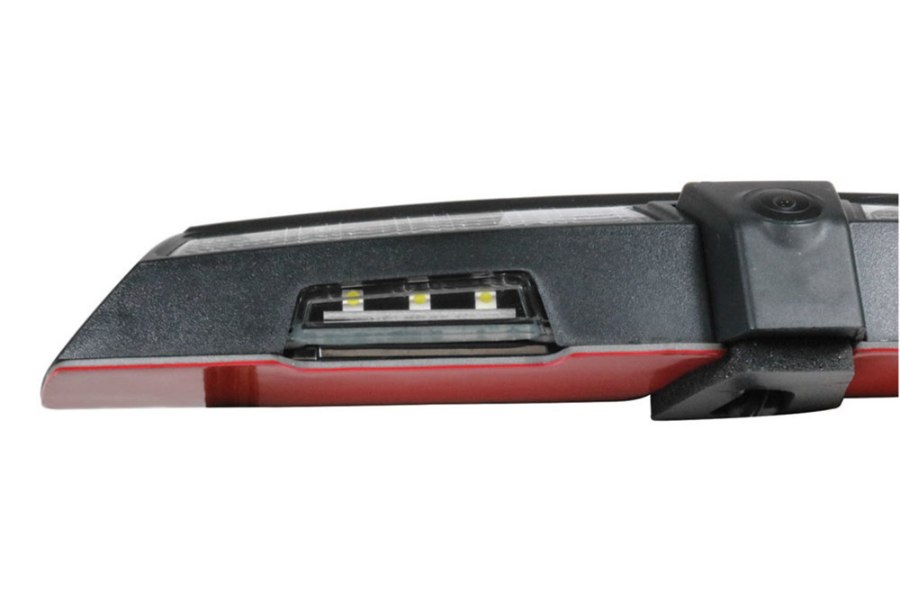

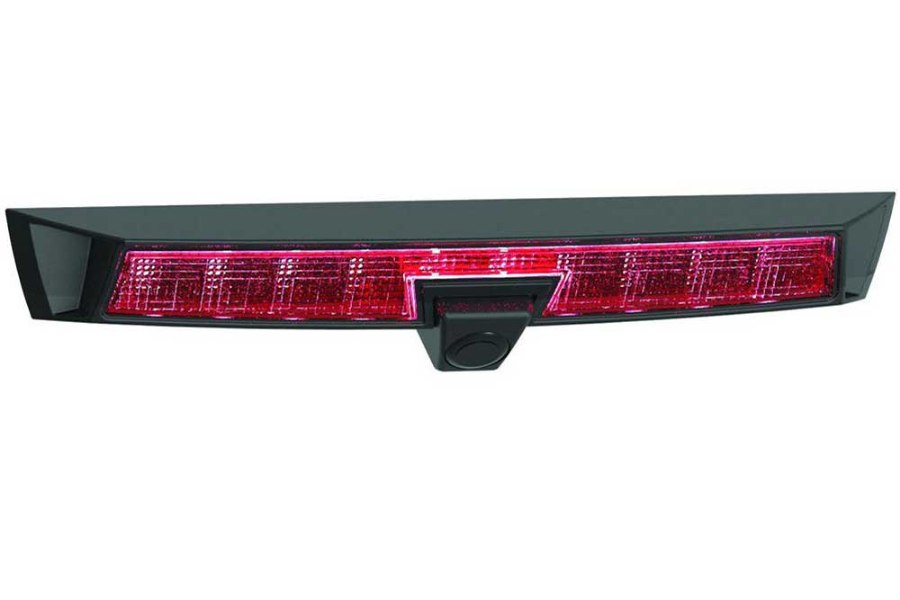

Hamsar LED Third Brake Light and Back-Up Camera System

SKU: LBC191
$317.99
View Cart
Qualifies for Free Shipping
with $199.00 minimum order
Description
These LED third brake lights with back up camera have a red lens. The kit includes a monitor, cables and mounting hardware. High quality automotive grade camera delivers superior picture quality and a 170? viewing angle (50 wide by 20 deep), surpassing FMVSS111 requirements. LEDs illuminate 200ms faster than incandescent bulbs, meaning faster braking distance response time. Guideline enabled camera (red, blue, green and yellow lines) enhances driver rearview assistance and safety. Night vision equipped for nighttime visibility and safety. Waterproof camera with IP68 environmental rating. Weatherproof CHMSL (IP65) with flat back is constructed with high quality automotive grade lens that will not fade, and meets FMVSS108 standard.

CHMSL Specifications:
  • Operating Voltage: 12Vdc
  • Operating Current: 0.2A @ 12Vdc
  • Power Consumption: 2W
  • Temperature Range: -40?C to +85?C
  • Ingress Protection: IP65
  • Lens: Automotive Optical Grade Hard-Coated Polycarbonate
  • Compliance: FMVSS108

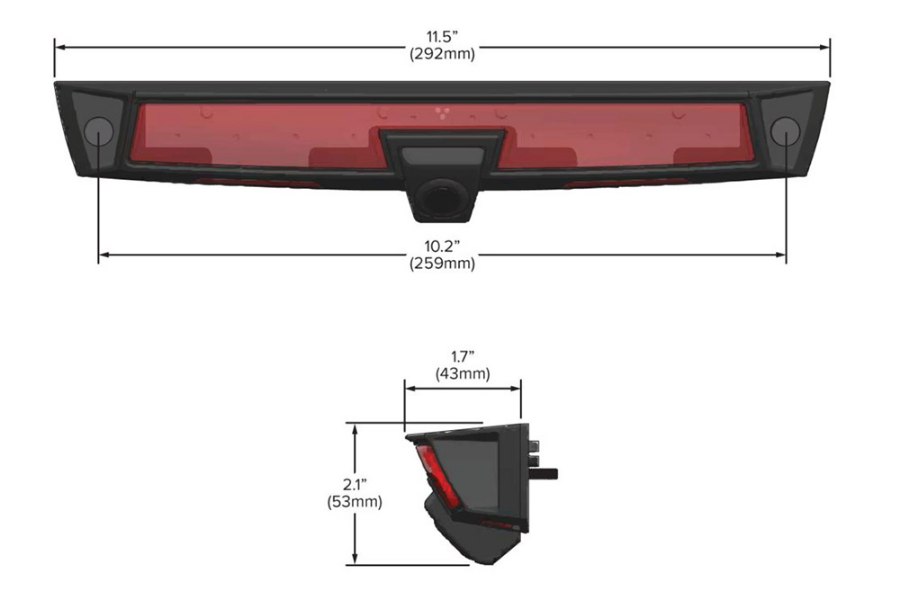

  • 11.5"L x 2.1"H x 1.7"D
    Camera Specifications:
  • View Angle: 170?
  • Night Vision: Yes
  • Operating Voltage: 12Vdc
  • Operating Current: 110mA
  • Temperature Range: -40?C to +85?C
  • Ingress Protection: IP68
  • Guidelines Enabled: Yes
    Monitor Specifications:
  • Operating Voltage: 12Vdc
  • Screen Size: 7 with TFT Panel
  • Aspect Ratio: 16:9 Image
  • System: PAL and NTSC Auto Switching
  • Overall Dimensions: 7.5 x 5.25 x 2.25
  • Resolution: 800 x 480 (RGB)
  • Brightness: 450cd/m2
  • Guidelines: Red, Blue, Green & Yellow
  • Speaker: Built-In
  • Video Output: Colour
  • Video Input: 2-Way Video Input with 2-Way Reversing Cable
  • Temperature Range: -20?C to +70?C
  • Storage Temperature: -30?C to +80?C
  • Mounting: Includes Bracket Hardware
  • Extension Cable: 30 Industrial Grade PVC Jacketed Video Cable w/ Steel Shell Swivel Locking Connectors
  • Connector Cables: Yes

  • Shipping & Returns

    Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

    Learn More

    Product Information
    Item # MFG #
    LBC191 84191
