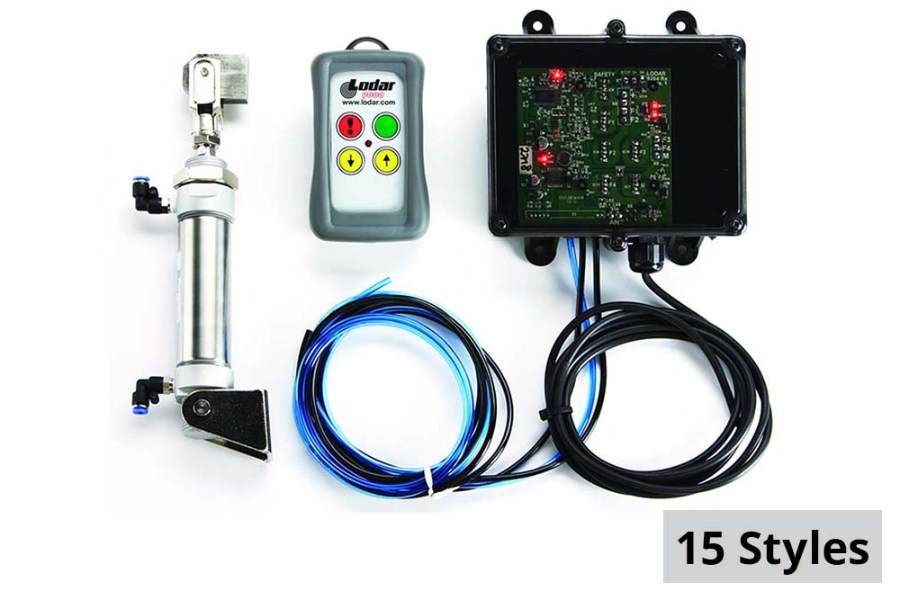

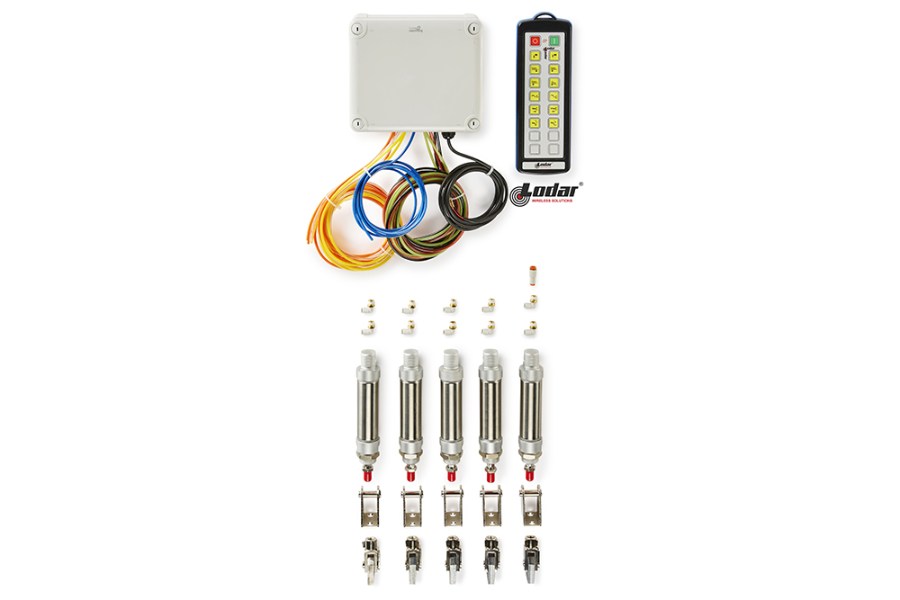

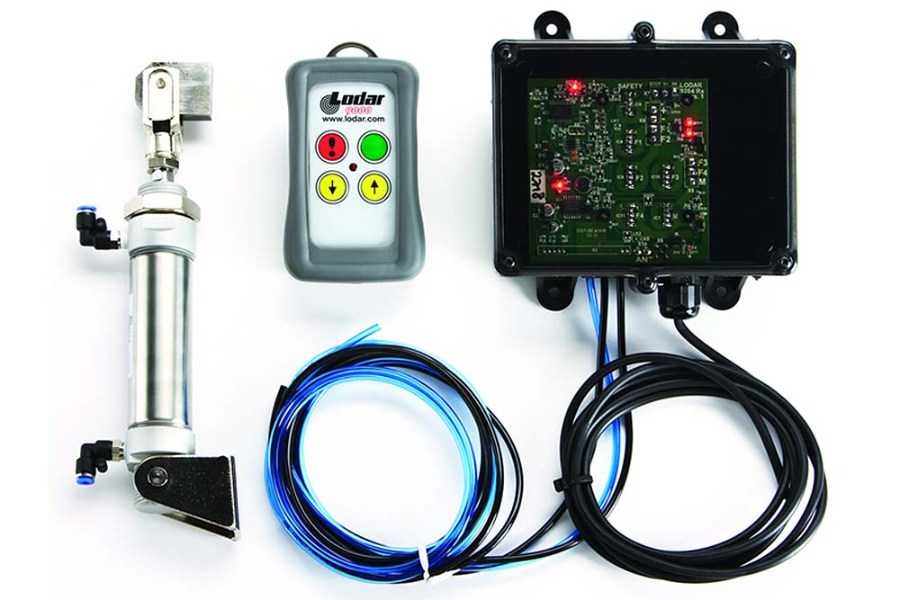

Lodar Air Actuator Wireless System

Please call for custom faceplate options. All default faceplates on 6+ function transmitters will be numbered.

For custom button inserts, please give us a call to order. Here are the available options: Button Images

9000 Series
Operating Distance: 200 ft. (61 m.)
Operating Voltage: 12/24 Volts DC
Receiver IP Rating: IP 65
Actuator: Air
Frequency: 433 MHz

Note:
Receiver and Transmitter must have the same frequency indicated by the last digit in the model number.
Example TX1002-3 needs P92102TX-3 (-3 indicates the frequency)
Related Products

Holder: AC9811
Aerial: AC9860

Functions	Part Number	Max Amps	Operating Distance	Transmitter	Transmitter Batteries	Transmitter IP Rating	Type	Kit Includes

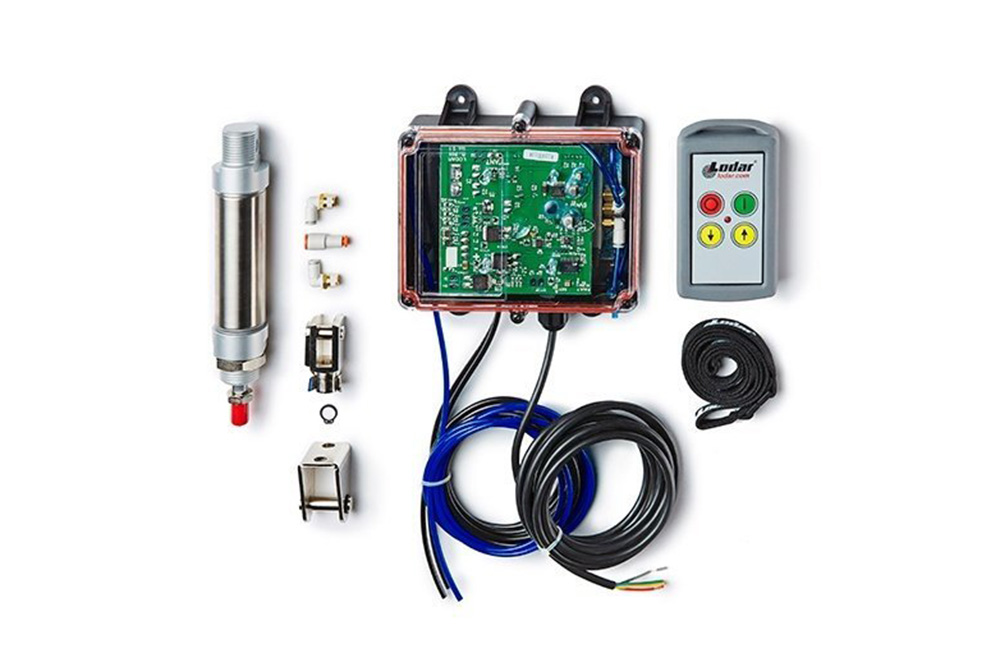

2	P92150-8	15	200 ft. (61 m.)	Standard	9V x 1	IP 54	Full System	1 x 9270RX 1 x (92102TX-8) 2 Function Lodar Standard Transmitter \| 9000 Series 1 x (9920) Lodar Air Actuator 1 x (9918) Lodar Air Valve 2 x (V08) Controls \| Fitting \| Elbow \| Air 1 x Instructions 1 x Lanyard

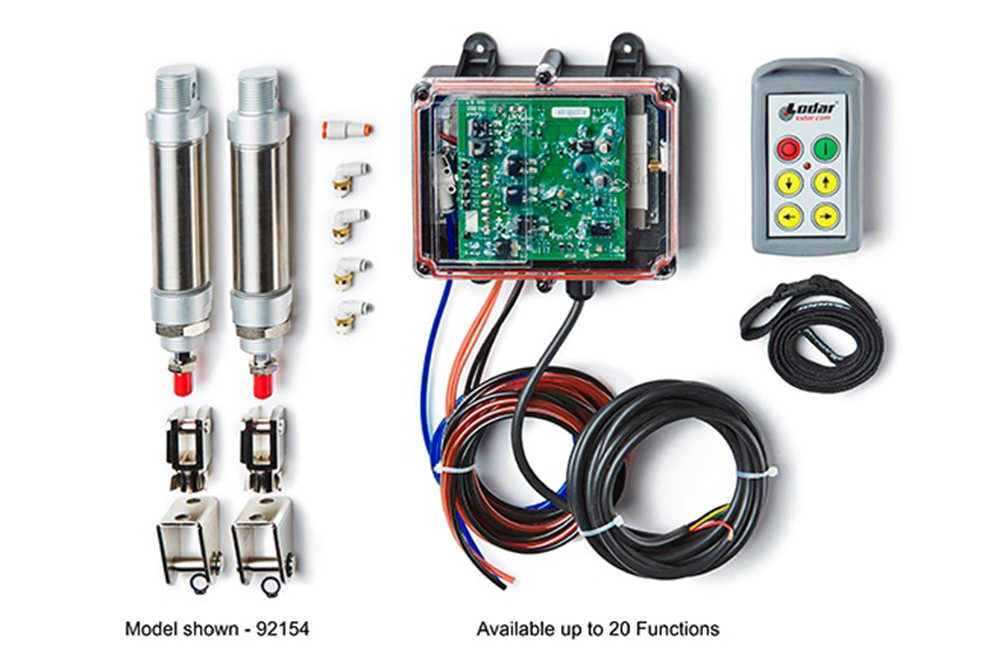

4	P92154-8	15	200 ft. (61 m.)	Standard	9V x 1	IP 54	Full System	1 x (9274RX-8) 4 Function Lodar FET Air Receiver \| 92 Series 1 x (92104TX-8) 4 Function Lodar Standard Transmitter \| 9000 Series 2 x (9920) Lodar Air Actuator 2 x (9918) Lodar Air Valve 1 x Instructions 1 x Lanyard
6	P92256-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x 9256RX 1 x (92206TX-8) 6 Function Lodar IP Transmitter \| 9000 Series 3 x (9920) Lodar Air Actuator 3 x (9918) Lodar Air Valve 1 x Instructions 1 x Lanyard
6	P92156-8	15	200 ft. (61 m.)	Standard	9V x 1	IP 54	Full System	1 x 9256RX 1 x (92106TX-8) 6 Function Lodar Standard Transmitter \| 9000 Series 3 x (9920) Lodar Air Actuator 3 x (9918) Lodar Air Valve 1 x Instructions 1 x Lanyard
8	P92258-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x (9278RX-8) 8 Function Lodar FET Air Receiver \| 92 Series 1 x (92210TX-8) 10 Function Lodar IP Transmitter \| 9000 Series 4 x (9918) Lodar Air Valve 4 x (9920) Lodar Air Actuator 1 x Instructions 1 x Lanyard
10	P92260-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x 9260RX 1 x (92210TX-8) 10 Function Lodar IP Transmitter \| 9000 Series 5 x (9920) Lodar Air Actuator 5 x (9918) Lodar Air Valve 10 x (V08) Controls \| Fitting \| Elbow \| Air 1 x Instructions 1 x Lanyard
12	P92262-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x 9262RX 1 x (92216TX-8) 16 Function Lodar IP Transmitter \| 9000 Series 6 x (9920) Lodar Air Actuator 6 x Air Valve 12 x (V08) Controls \| Fitting \| Elbow \| Air 1 x Instructions 1 x Lanyard
14	P92264-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x 9264RX 1 x (92216TX-8) 16 Function Lodar IP Transmitter \| 9000 Series 7 x (9920) Lodar Air Actuator 7 x (9918) Lodar Air Valve 14 x (V08) Controls \| Fitting \| Elbow \| Air 1 x Instructions 1 x Lanyard
16	P92266-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x 9266RX 1 x (92216TX-8) 16 Function Lodar IP Transmitter \| 9000 Series 8 x (9920) Lodar Air Actuator 8 x (9918) Lodar Air Valve 16 x (V08) Controls \| Fitting \| Elbow \| Air 1 x Instructions 1 x Lanyard
20	P92270-8	15	200 ft. (61 m.)	Industrial Pro	AAA x 4	IP 65	Full System	1 x (9220RX-8) 20 Function 12/24V Lodar FET Receiver \| 92 Series 1 x (92220TX-8) 20 Function Lodar IP Transmitter \| 9000 Series 10 x (9920) Lodar Air Actuator 10 x (9918) Lodar Air Valve 1 x Instructions 1 x Lanyard

Item #	MFG #	FUNCTIONS
P92258-8	92258-8	8 Functions

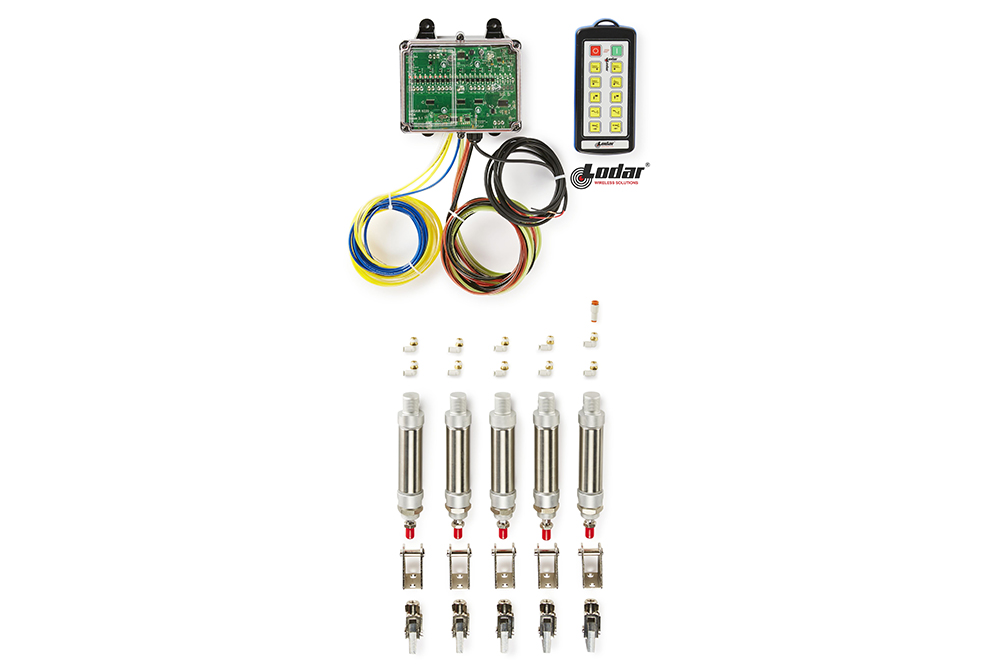

P92260-3	92260-3	10 Functions - 433 mHz European Frequency
P92260-8	92260-8	10 Functions
P92156-8	P92156-8	6 Functions

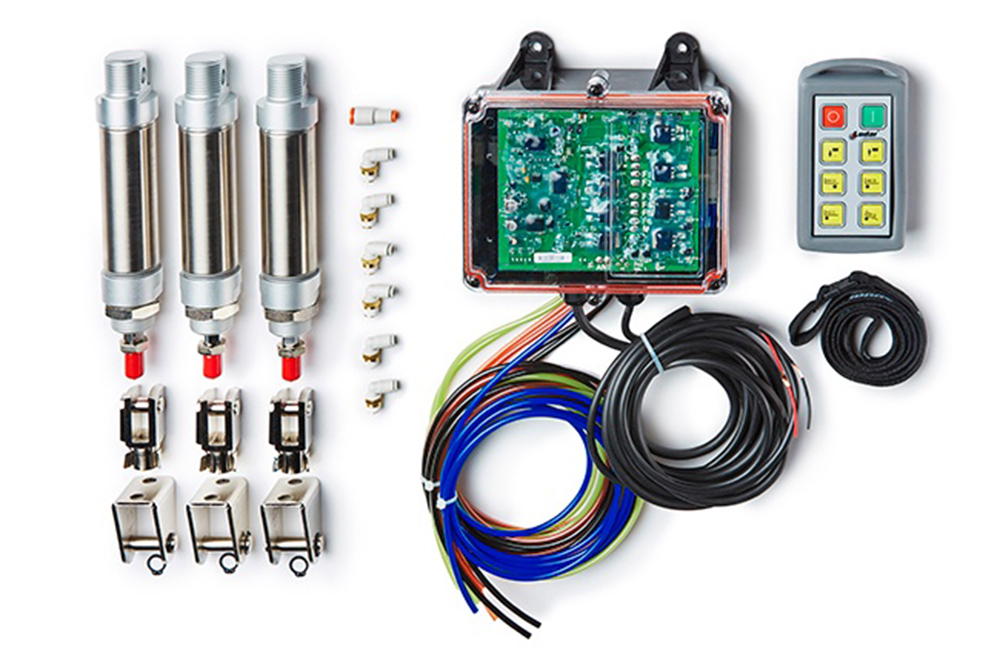

P92256-8	92256-8	6 Functions - HD Remote
P92154-3	92154-3	4 Functions - 433 mHz European Frequency

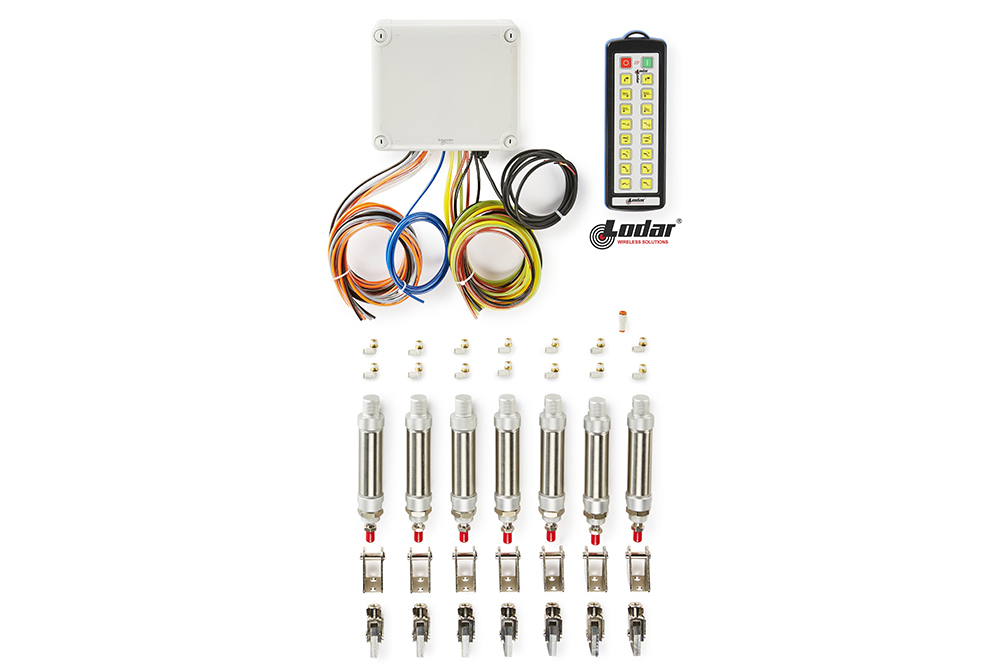

P92266-8	92266-8	16 Functions

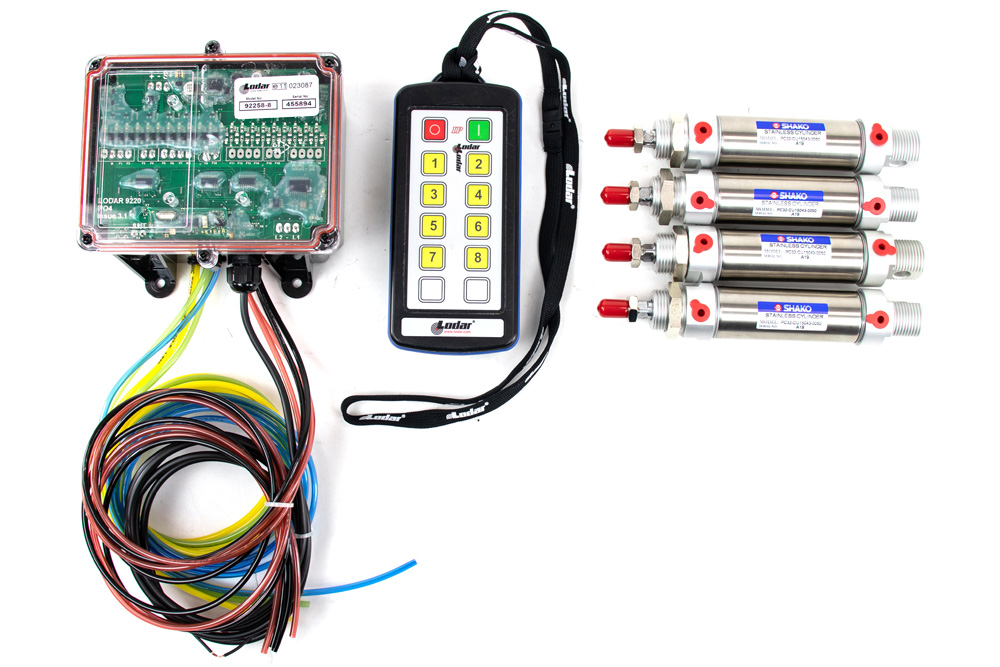

P92258-3	92258-3	8 Functions - 433 mHz European Frequency

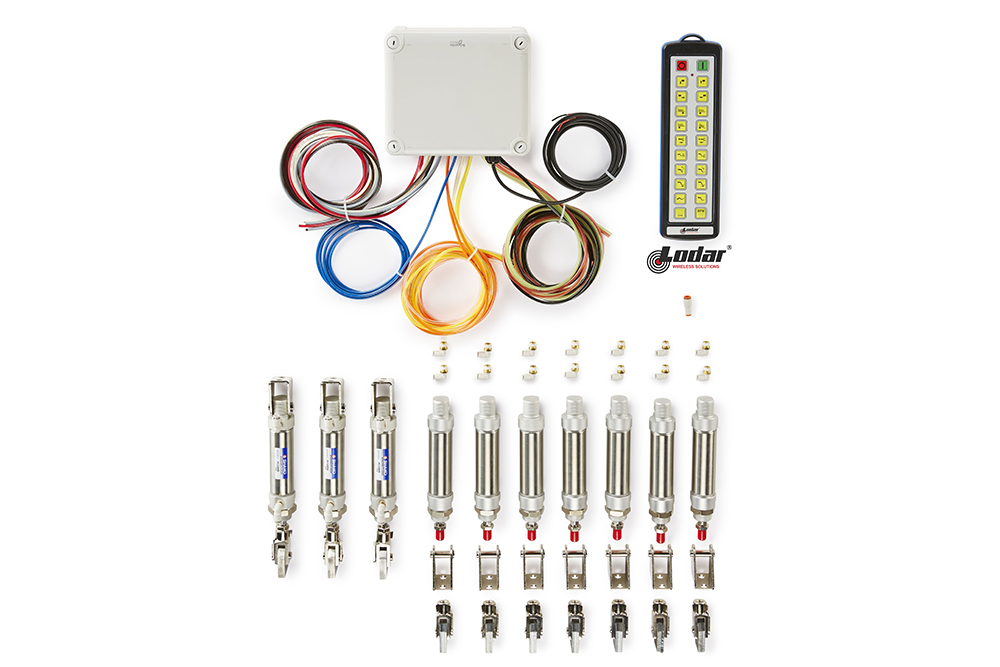

P92270-8	92270-8	20 Functions

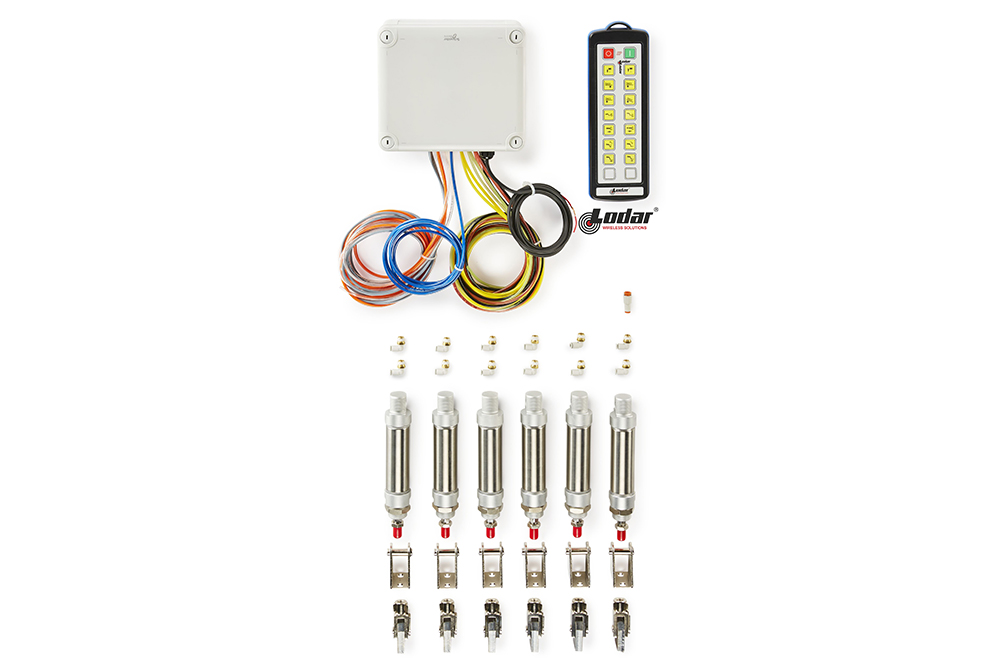

P92264-8	92264-8	14 Functions
P92150-8	92150-8	2 Functions
P92154-8	92154-8	4 Functions
P92262-8	92262-8	12 Functions

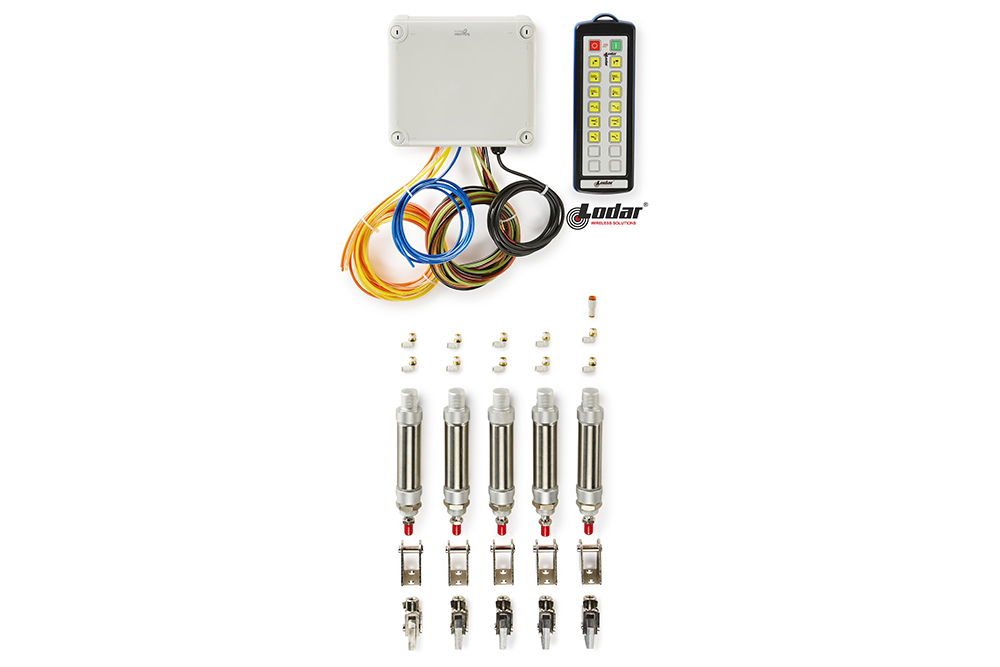

P92262-3	92262-3	12 Functions - 433 mHz European Frequency
P92268-8	92268-8	18 Functions
