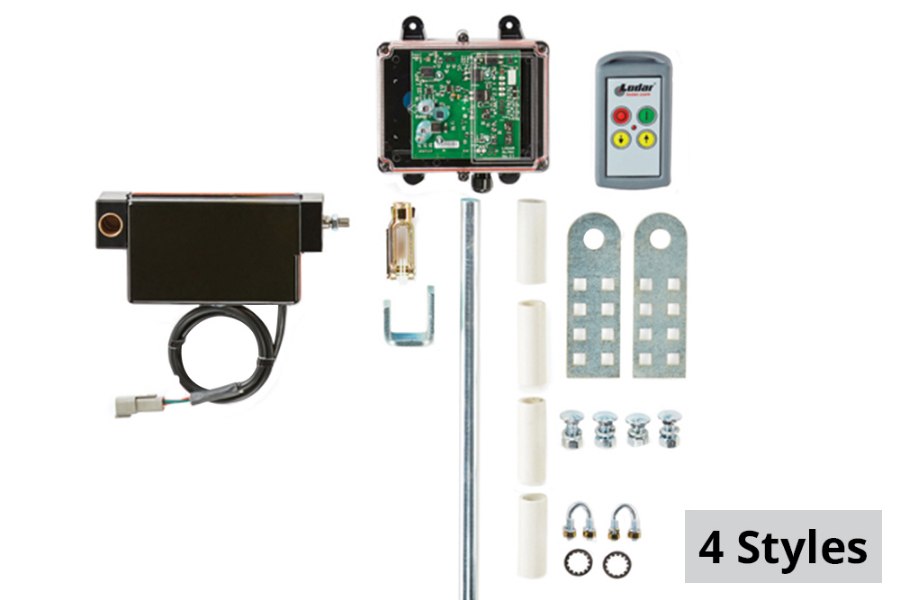

Lodar Electric Actuator Wireless System

FUNCTIONS *: 6 Functions - 3 Levers

6 Functions - 3 Levers

Not available

6 Functions - 3 Levers (433 MHz European Frequency)

6 Functions - 3 Levers (433 MHz European Frequency)

Not available

2 Function - 1 Lever

2 Function - 1 Lever

Not available

4 Functions - 2 Levers

4 Functions - 2 Levers

Not available

4 Functions - 2 Levers (433 MHz European Frequency)

4 Functions - 2 Levers (433 MHz European Frequency)

Not available

SKU: P92150A-KIT

Price: $1,173.99–$3,126.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Lodar Actus Electric Actuator for Hydraulic Valves. Kit Comes with a Lodar 2-6 Function Remote, Lodar Receiver, and an Actus Linear Actuator(s). For Example: This system will work with a single winch IN/OUT Functions. No Air Required. 12V power and ground needed for installation. Great when using a Ford F350/F450/F550 or Dodge 3500/4500/5500 Chassis since there are no on-board OEM air compressors available. *NOTE: Is NOT compatible with any small wrecker with "cable" operated controls.

For custom button inserts, please give us a call to order. Here are the available options: Button Images

Easiest installation on the market
Built-in clutch for added safety
No air required

Function Type

Part Number

Actuator

Frequency

Functions

Max Amps

Operating
Distance

Operating
Voltage

Receiver IP
Rating

Series

Transmitter

Transmitter
Batteries

Transmitter
IP Rating

Type

Transmitter

Holder

Aerial

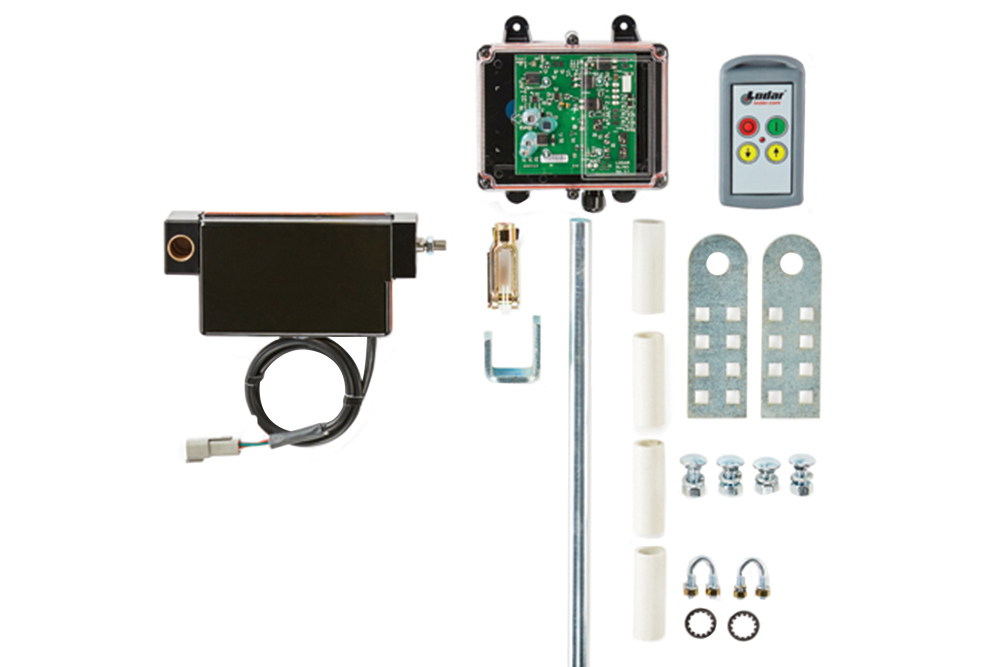

2 Function - 1 Lever

P92150A-8

Electric

433 MHz

200 ft. (61 m.)

12/24 Volts DC

IP 65

9000 Series

Standard

9V x 1

IP 54

Full System

92102TX

AC9811

AC9860

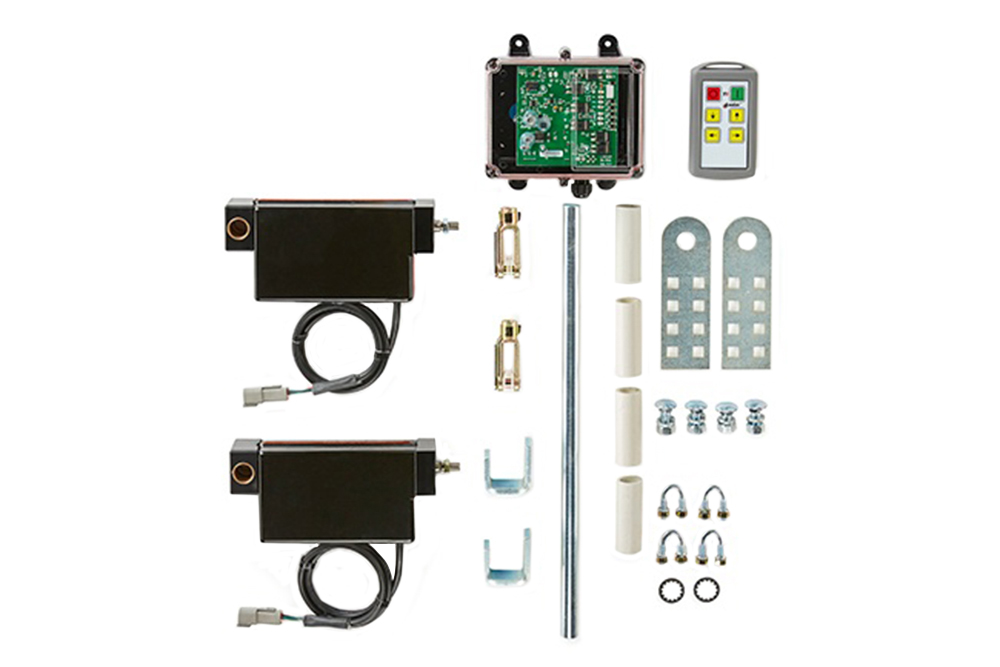

4 Function - 2 Lever

P92154A-8

Electric

433 MHz

200 ft. (61 m.)

12/24 Volts DC

IP 65

9000 Series

Standard

9V x 1

IP 54

Full System

92104TX

AC9811

AC9860

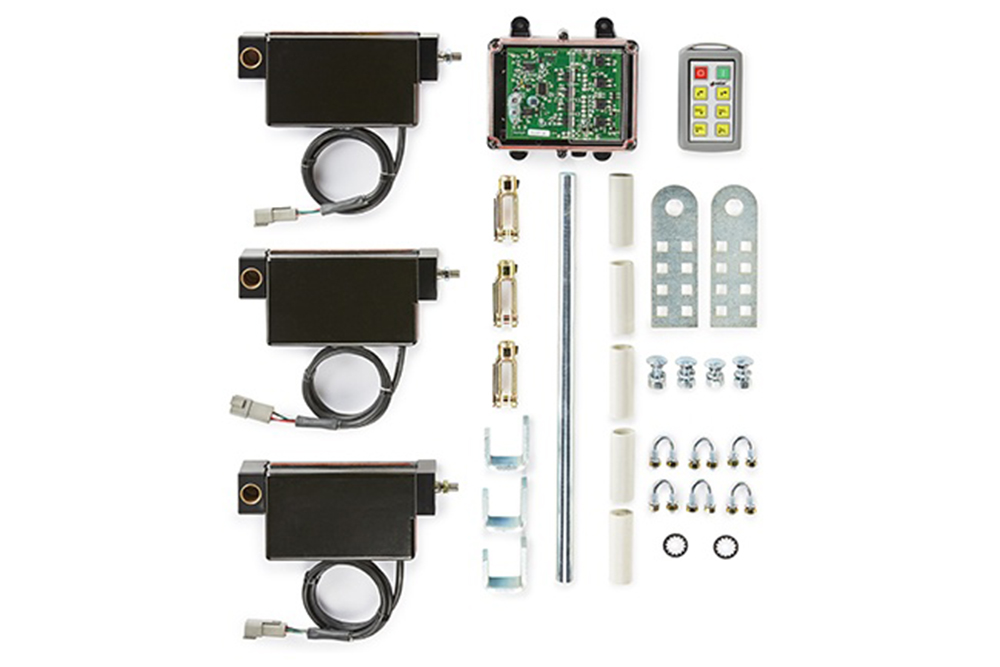

6 Function - 3 Lever

P92156A-8

Electric

433 MHz

200 ft. (61 m.)

12/24 Volts DC

IP 65

9000 Series

Standard

9V x 1

IP 54

Full System

92106TX

AC9811

AC9860
