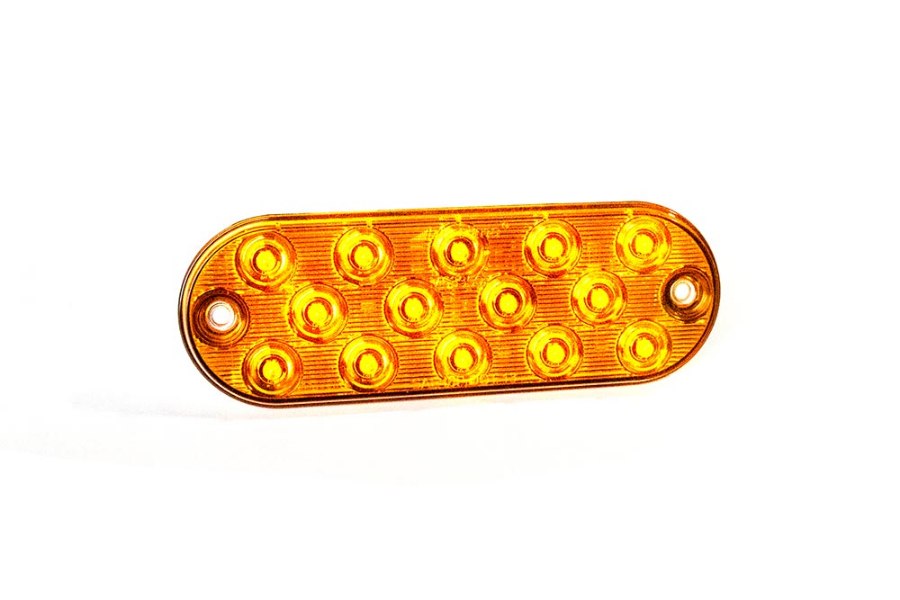

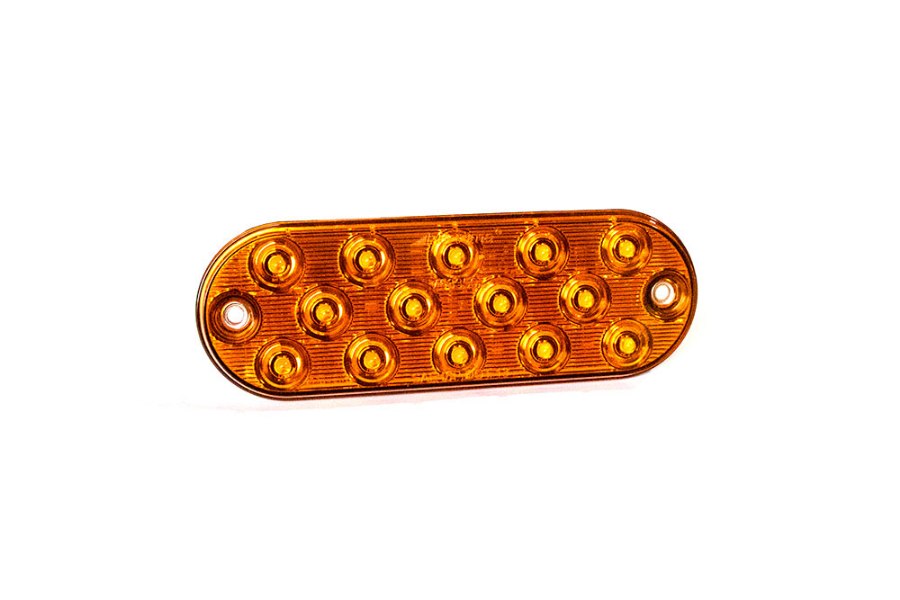

Maxxima 6" Oval Amber Marker LED

Be the first to review this product

SKU: M63350Y

Price: $16.39

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

The M63350Y is a 6” oval amber Park, Front / Rear Turn light featuring an ultra-thin profile of just 0.5", making it one of the slimmest options in the industry. It offers flexible installation with the ability to be either surface-mounted or grommet-mounted. A range of compatible mounting accessories is available, including the M50608 and M50607 low-profile grommets, the M50146 stainless steel bezel, and the M63350-TAPE 3M mounting tape. Screw caps are included to provide a clean finish with concealed mounting hardware. This light meets DOT / SAE standards for I3 and I6 configurations and supports both horizontal and vertical mounting. Constructed with a durable polycarbonate lens and housing, it comes with a 5-year warranty.

6” Oval Amber Park, Front / Rear Turn
DOT / SAE I3 I6 Compliant Horizontal or Vertical
Ultra-Thin Profile – Only 0.5” Thick
Surface Mount or Grommet Mount
Optional M50608 or M50607 Low-Pro Grommet
Optional M50146 Stainless Bezel for Surface Mount
Optional M63350-TAPE, 3M Mounting Tape
Mounting Screws & Screw Caps Included
Polycarbonate Lens & Housing
Replaces M63350Y
5 Year Warranty
LEDs: 14
Voltage: 12.8VDC
Amp Draw: 0.6A Turn / 30mA Park
Dimensions: 6.5” W x 2.3” H x 0.5” D
Mounting: Surface or Grommet (2 hole 5.5” C to C)
Connector: 3 Leads, Blunt Cut, 6”
Legal Heading: I3 I6 P
DOT/SAE: J222, J2261

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	GTIN #
M63350Y	M63350Y	755183170124
